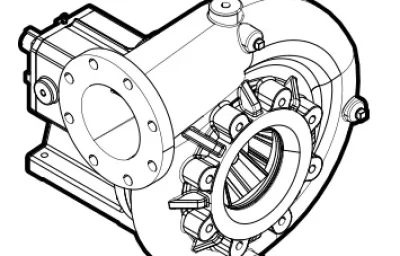

Franklin Electric Surface Pumps Centrifugal Frame Mount 13 INCH
Franklin Electric 13 inch frame mount centrifugal pump is the highest-capacity model in the Franklin Electric inch-size frame mount series available at Ken’s Distributing Company (Kendisco), delivering capacities up to 2,800 GPM and heads up to 360 feet for maximum-flow agricultural irrigation, municipal water supply, industrial processing, and mining water management applications. With a maximum working pressure of 350 PSI and Class 150 flanged connections across multiple port size configurations, the 13 inch model is built for permanent pump station installations where sustained high-volume output is the primary requirement.
Ken’s Distributing carries the Franklin Electric 13 inch frame mount centrifugal pump in four model configurations along with genuine replacement parts including volute cases, stainless steel impellers, and bronze wear rings. If you are specifying a new installation or sourcing replacement components for an existing 13 inch pump, the team at Kendisco can help you identify the right configuration and parts for your system.
What Is the Franklin Electric 13 Inch Frame Mount Centrifugal Pump?
The Franklin Electric 13 inch frame mount centrifugal pump is identified by its 13 inch impeller diameter and features several design upgrades compared to the smaller models in the series. The 6×8 model variant uses a split volute design that reduces radial bearing load, extending bearing service life in high-flow, high-duty-cycle applications. The power frame uses a double-keyed impeller connection for improved torque transfer under sustained high-load conditions. The stainless steel impeller across all 13 inch variants provides better corrosion resistance than the cast iron impellers found on smaller models in the series.
Like the other large-frame Franklin Electric centrifugal models, the 13 inch uses a back pull-out design with both casing and frame jack-out holes, along with frame and volute lifting bosses that make handling and servicing the large pump assembly significantly easier in the field. Replaceable shaft sleeves and bronze wear rings allow critical wear components to be replaced without full pump replacement.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 2,800 GPM |
| Maximum Head | 360 Feet |
| Maximum Working Pressure | 350 PSI |
| Maximum Temperature | 212 degrees F |
| Rotation | Clockwise when viewed from motor end |
| Pipe Connections | Class 150 Flanged |
| Impeller Size | 13 Inch |
| Impeller Type | Enclosed, Internally Hydraulically Balanced, Double-Keyed |
| Impeller Material | 316 Stainless Steel |
| Volute Material | Cast Iron, ASTM-A48 Class 30 |
| Volute Design (6×8 Model) | Split Volute for Reduced Radial Bearing Load |
| Bearing Frame | Heavy-Duty Iron, Oversized Shaft, Max-Life Bearings, Grease Lubrication |
| Seal Options | Packed-Box with Lantern Ring or Mechanical Seal (Carbon/Ceramic, Nitrile Elastomers, 300 Series Stainless Steel) |
| Shaft Sleeve | Replaceable |
| Wear Rings | Replaceable SAE 660 Bronze |
| Packing Gland | Two-Piece Stainless Steel |
| Mounting Position | Vertical or Horizontal |
Available Port Size Configurations
| Model | Discharge Size | Suction Size |
|---|---|---|
| XS25x3-13 | 2-1/2 inch | 3 inch |
| XS3x4-13 | 3 inch | 4 inch |
| XS4x6-13H | 4 inch | 6 inch |
| XS6x8-13 | 6 inch | 8 inch |
Pump Features
- Cast iron volute for heavy-duty service with back pull-out design and rotatable housing for ease of installation and discharge alignment
- Split volute design on the XS6x8-13 model reduces radial bearing load for extended bearing life in high-duty-cycle applications
- Enclosed stainless steel impeller configured for superior NPSH characteristics and internally hydraulically balanced to reduce axial bearing load
- Double-keyed impeller connection in the power frame for improved torque transfer and reliability under sustained high-load conditions
- Packed-box seal with lantern ring or carbon ceramic mechanical seal with nitrile elastomers and 300 series stainless steel components
- Heavy-duty iron bearing frame and power frame with oversized shaft and max-life bearings rated for sustained high-load operation
- Grease lubrication with external access fittings for field-accessible bearing maintenance
- Replaceable shaft sleeve to protect the main shaft from wear and reduce long-term maintenance costs
- Replaceable SAE 660 bronze wear rings for both the volute case and seal plate positions to restore pump efficiency without casing replacement
- Both casing and frame jack-out holes for ease of disassembly and service in permanent pump station installations
- Frame and volute lifting bosses for safe handling of the large pump assembly during installation and service
- Two-piece stainless steel packing gland for packed-box seal configurations
- Class 150 flanged pipe connections for secure integration into large-diameter, high-pressure piping systems
- Vertical or horizontal mounting to fit varied pump station configurations
Applications and Industries
The Franklin Electric 13 inch frame mount centrifugal pump is the go-to choice for the highest-volume surface pumping applications in the Franklin Electric lineup at Ken’s Distributing. Its 2,800 GPM capacity covers large irrigation districts, municipal treatment plants, and demanding industrial processing operations where smaller models in the series cannot meet the required flow.
- Maximum-flow agricultural and flood irrigation systems and large irrigation district pump stations
- Commercial and municipal water supply and distribution networks
- Large-scale construction site dewatering projects
- Municipal water treatment plant intake and distribution
- Mining water management and high-volume process water transfer
- Industrial processing and cooling water circulation
How the 13 Inch Model Compares to Other Franklin Electric Frame Mount Pumps
The Franklin Electric 13 inch model delivers the highest flow of the commonly stocked inch-size series at Ken’s Distributing. The comparison below helps you select the right impeller size for your system flow and pressure requirements. Contact Kendisco directly for detailed performance curves on the 13 inch and 14 inch models.
| Model | Max GPM | Max Head (Feet) | Max Pressure (PSI) | Impeller Material |
|---|---|---|---|---|
| 7.5 Inch | 1,100 | 250 | 350 | Ductile Iron |
| 9 Inch | 2,000 | 260 | 250 | Cast Iron |
| 10 Inch | 1,900 | 400 | 350 | Ductile Iron |
| 13 Inch | 2,800 | 360 | 350 | 316 Stainless Steel |
| 14 Inch | Contact Kendisco | Contact Kendisco | Contact Kendisco | Contact Kendisco |
Franklin Electric 13 Inch Frame Mount Pump Replacement Parts
Ken’s Distributing Company (Kendisco) stocks genuine Franklin Electric replacement parts for the 13 inch frame mount centrifugal pump across all four model configurations. Use the table below to identify the correct part number for your specific model variant.
| Fig. | Part Description | XS25x3-13 | XS3x4-13 | XS4x6-13H | XS6x8-13 | Material |
|---|---|---|---|---|---|---|
| 1 | Volute Case | 305464034 | 305464001 | 305464017 | 305464018 | Cast Iron, ASTM-A48 Class 30 |
| 2 | Impeller | N/A | 305464002 | 305464063 | 305464021 | 316 Stainless Steel |
| 4A | Wear Ring, Volute Case | 305464036 | 305464003 | 305464023 | 305464024 | SAE 660 Bronze |
| 4B | Wear Ring, Seal Plate | 305464003 | 305464003 | 305464025 | 305464025 | SAE 660 Bronze |
MATERIALS AND PARTS
| Fig. | Part Description | Part No. | Materials | |||
|---|---|---|---|---|---|---|
| XS25x3-13 | XS3x4-13 | XS4x6-13H | XS6x8-13 | |||
| 1 | Volute Case | 305464034 | 305464001 | 305464017 | 305464018 | Cast iron, ASTM-48 Class 30 |
| 2 | Impeller | – | 305464002 | 305464063 | 305464021 | 316 Stainless steel |
| 4A | Wear Ring, Volute Case | 305464036 | 305464003 | 305464023 | 305464024 | SAE 660 bronze |
| 4B | Wear Ring, Seal Plate | 305464003 | 305464025 | SAE 660 bronze | ||
| 5 | Pump Shaft (only available in shaft kit) | See Shaft Kit | Stressproof® AISI 1144 | |||
| 6 | Bearing Frame | 305464004 | Cast iron, ASTM-48 Class 30 | |||
| 9 | Bearing Frame Cover | 305464005 | Cast iron, ASTM-48 Class 30 | |||
| 10 | Mechanical Seal Back Plate | 305464006 | 305464026 | Cast iron, ASTM-48 Class 30 | ||
| 11 | Packing Seal Back Plate | 305464007 | 305464027 | Cast iron, ASTM-48 Class 30 | ||
| 12A | Packing Shaft Sleeve | 305464008 | 305464028 | 416 Stainless steel | ||
| 12B | Mechanical Seal Shaft Sleeve | 305464009 | 305464029 | 416 Stainless steel | ||
| 13 | Packing Ring Set | 305731918 | Graphite/cotton | |||
| 14 | Lantern Ring | 305464011 | Acetal | |||
| 15 | Packing Gland (2 piece) | 305464012 | 316 Stainless steel | |||
| 16 | Bearing, Pump Side | 305463145 | Steel | |||
| 17 | Bearing, Drive Side | 305463146 | Steel | |||
| 18 | Flat Socket Cap Screw, Seal Plate (8 pack) | 305463147 | 300 Series stainless steel | |||
| 20 | Mechanical Seal Assembly | 305464013 | 305464030 | Misc. | ||
| 21 | Packing Gland Assembly | 305464014 | 305464031 | Misc. | ||
| 26 | Lip Seal, Pump/Drive Side | 305463148 | Nitrile | |||
| 30 | Mechanical Seal Retaining Ring | 305463149 | 316 Stainless steel | |||
| 35 | Shaft Key, Impeller (2 pack) | 305463150 | 305464032 | 316 Stainless steel | ||
| 42 | Bearing Thrust Ring | 305463151 | Carbon steel | |||
| 43 | Bearing Snap Ring | 305463152 | 316 Stainless steel | |||
| 90 | Mechanical Shaft Seal | 305463153 | Carbon/ceramic/nitrile/316 stainless steel | |||
| 100 | O-ring, Volute Case | 305463154 | Nitrile | |||
| 503 | Water Slinger | 305464015 | Neoprene | |||
| 510 | Hex Cap Screw, Impeller | 305463155 | 305463167 | 316 Stainless steel, grade 5 | ||
| 520 | Washer, Impeller | 305464016 | 305464033 | 300 Series stainless steel | ||
| 525 | Lock Washer, Impeller | 305463156 | 305463168 | 316 Stainless steel | ||
| 529 | Nut, Packing Gland (4 pack) | 305463157 | Zinc-plated steel | |||
| 531 | Stud, Packing Gland (2 pack) | 305463158 | Zinc-plated steel | |||
| 540 | Flat Socket Cap Screw, Seal (8 pack) | 305463159 | Nylon | |||
| 500A | Pipe Plug (4 pack) | 305463175 | 305463144 | 305463175 | CAD-plated steel | |
| 502A | Grease Zerk, Straight (3 pack) | 305463160 | CAD-plated steel | |||
| 502B | Grease Zerk, 65 Deg. | 305463161 | CAD-plated steel | |||
| 530A | Hex Cap Screw, Bearing Cover (4 pack) | 305463162 | Zinc-plated steel, grade 5 | |||
| 530B | Hex Cap Screw, Volute Case (8 pack) | 305463163 | Zinc-plated steel, grade 5 | |||
| 533A | Hex Cap Lock Washer, Bearing Cover (4 pack) | 305463164 | Zinc-plated steel | |||
| 533B | Hex Cap Lock Washer, Volute Case (8 pack) | 305463067 | Zinc-plated steel | |||
| Not Shown | Set Screw, Mechanical Sleeve | 305463165 | 300 Series stainless steel | |||
| Not Shown | Shaft Key, Drive Side | 305463166 | 300 Series stainless steel | |||
| Not Shown | Shaft Kit Seal (Includes 5, 12, 16, 17, 35, 42, 43) | 305731908 | 305731914 | Misc. | ||
| Not Shown | Shaft Kit Pack (Includes 5, 12, 16, 17, 35, 42, 43) | 305731907 | 305731913 | Misc. | ||
ORDERING INFORMATION
| Pump Model | Rotation | Shaft Sealing | Model Description | Order No. | Wt. (lbs) |
|---|---|---|---|---|---|
| 3 x 4 – 13 | CW | Packing | XS4313-BFP-CW | 64040313102 | 277 |
| Mechanical Seal | XS4313-BFM-CW | 65040313102 | 277 | ||
| 4 x 6 – 13H | Packing | XS6413H-BFP-CW | 64060413104 | 294 | |
| Mechanical Seal | XS6413H-BFM-CW | 65060413104 | 294 | ||
| 6 x 8 – 13 | Packing | XS8613-BFP-CW | 64080613102 | 390 | |
| Mechanical Seal | XS8613-BFM-CW | 65080613102 | 390 |
NOTE: There will be an impeller trimming charge applied for any non-standard impeller trim; consult price sheets for list price adders; FKM seals available
DIMENSIONS
| Model | Dimensions (in) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | E | F | G | H | L | N | U | X | Y | Z | CP | DD1 | DD2 | Key | |
| 3 x 4 – 13 | 9.75 | 12.00 | 7.00 | 4.00 | 9.87 | 1.50 | 0.50 | 7.62 | 3.32 | 1.50 | 9.00 | 3.00 | 8.00 | 23.25 | 8.87 | 20.62 | .37 |
| 4 x 6 – 13H | 9.75 | 12.00 | 7.00 | 4.00 | 9.87 | 1.50 | 0.50 | 7.87 | 3.32 | 1.50 | 9.00 | 3.00 | 7.50 | 23.50 | 8.75 | 20.75 | .37 |
| 6 x 8 – 13 | 9.75 | 12.00 | 7.00 | 4.00 | 9.87 | 1.50 | 0.50 | 9.00 | 3.32 | 1.50 | 12.00 | 4.00 | 8.75 | 24.62 | 10.25 | 24.37 | .37 |
NOTE: Dimensions are for estimating purposes onlyFRAME MOUNT – 13-INCH
Performance Curve:
Frequently Asked Questions
What is the Franklin Electric 13 inch frame mount centrifugal pump used for?
The Franklin Electric 13 inch frame mount centrifugal pump is used for maximum-flow agricultural irrigation, municipal water supply and treatment, large-scale construction dewatering, industrial processing water transfer, and mining water management. At 2,800 GPM and 360 feet of head, it is the highest-capacity surface pump in the Franklin Electric inch-size frame mount series available at Ken’s Distributing.
What does the 13 inch measurement refer to on this pump?
The 13 inch designation refers to the impeller and housing diameter of this pump model. Franklin Electric uses impeller diameter as the primary size identifier across its large-frame centrifugal pump series. The 13 inch model delivers the highest maximum flow rate in the series at 2,800 GPM, compared to 2,000 GPM for the 9 inch and 1,900 GPM for the 10 inch model.
Why does the 13 inch model use a stainless steel impeller?
The 316 stainless steel impeller on the Franklin Electric 13 inch frame mount pump provides significantly better corrosion resistance than the cast iron or ductile iron impellers used in smaller models. At the flow rates and pressures the 13 inch operates at, corrosion resistance becomes more important for long-term impeller integrity, particularly in applications involving treated water, mineral-heavy source water, or industrial process fluids.
What is a split volute and why does the 6×8 model use one?
A split volute divides the flow path around the impeller into two symmetrical channels rather than a single spiral. This balances the hydraulic forces acting on the impeller radially, reducing the radial load on the bearings. On the XS6x8-13 model which operates at the highest flow rates in the 13 inch series, the split volute extends bearing life significantly in high-duty-cycle pump station applications.
Can this pump be serviced without disconnecting the piping?
Yes. The Franklin Electric 13 inch frame mount centrifugal pump uses a back pull-out design with both casing and frame jack-out holes that allow the rotating assembly to be removed for service without disconnecting the suction or discharge flanges. Frame and volute lifting bosses are also provided to assist with safe handling of the large pump assembly during service and installation.
What replacement parts are available for the Franklin Electric 13 inch frame mount pump?
Ken’s Distributing Company (Kendisco) carries genuine Franklin Electric replacement parts for the 13 inch frame mount pump including volute cases, 316 stainless steel impellers, and SAE 660 bronze wear rings for both the volute case and seal plate positions. See the parts table above for specific part numbers by model configuration. Contact Kendisco for additional components and hardware not listed in the current parts table.
Where can I order the Franklin Electric 13 inch frame mount pump?
You can order the Franklin Electric 13 inch frame mount centrifugal pump and all available replacement parts from Ken’s Distributing Company at kendisco.com. If you need help selecting the right port size configuration, reviewing performance curves, or identifying specific replacement part numbers for your model, the team at Kendisco is ready to assist.
