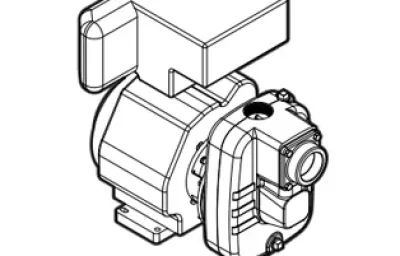

Franklin Electric Centrifugal Self Priming Gas Engine Units FNSGF
Franklin Electric Centrifugal Self Priming Gas Engine Units FNSGF for High-Pressure Irrigation and Industrial Water Transfer
Franklin Electric Centrifugal Self Priming Gas Engine Units FNSGF are high-pressure self-priming centrifugal pump units built for demanding agricultural, construction, municipal, and industrial water transfer applications. Available through Ken’s Distributing Company at Kendisco, the FNSGF series handles flow rates up to 165 GPM and heads up to 185 feet, with a maximum working pressure of 120 PSI, making it the higher-pressure alternative to the FBSGF within the Franklin Electric gas engine self-priming pump lineup.
Where the FBSGF uses a semi-open impeller for handling dirty water and light solids, the FNSGF uses an enclosed cast iron impeller specifically designed for higher-pressure clean water applications. This enclosed impeller design, combined with a built-in check valve and diffuser, allows the FNSGF to achieve heads up to 185 feet, which is significantly higher than the 112-foot head capability of the FBSGF series.
The rugged cast iron volute features tapped openings for priming, venting, and draining. All units are equipped with industry-recognized engines from Kohler, Briggs and Stratton, and Honda with adjustable throttle controls and recoil starting. Diesel-powered variants are available through the FNSDF model designation for applications where gasoline fuel is not preferred. Ken’s Distributing Company at Kendisco stocks the full FNSGF lineup along with genuine Franklin Electric repair parts for all models.
Key Features of the Franklin Electric FNSGF Gas Engine Self-Priming Pump Units
- Rugged cast iron volute with tapped openings for priming, venting, and draining
- Enclosed cast iron impeller for higher-pressure clean water applications
- Built-in check valve and diffuser for improved pressure performance
- Standard carbon and ceramic seal faces with FKM elastomers and 300-series stainless steel components
- Available with Kohler, Briggs and Stratton, or Honda engines with adjustable throttle controls
- Recoil starting across all models
- Diesel-powered variants available in FNSDF model designation with Kohler diesel engines
- Flow rates up to 165 GPM and heads up to 185 feet
- Maximum working pressure of 120 PSI
- Handles liquid temperatures up to 200 degrees F
- Available in 2 inch x 2 inch and 2 inch x 2.5 inch NPT connection sizes
- Horizontal mounting orientation
- Clockwise rotation viewed from the engine side
- No electrical power source required for operation
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Flow Rate | 165 GPM |
| Maximum Head | 185 feet |
| Maximum Working Pressure | 120 PSI |
| Maximum Liquid Temperature | 200 degrees F |
| Pipe Connections | NPT |
| Connection Sizes | 2″ x 2″ (5.5 HP models), 2″ x 2.5″ (8-9 HP models) |
| Rotation | Clockwise viewed from engine side |
| Impeller Type | Enclosed cast iron for higher pressure applications |
| Volute Material | Cast iron, ASTM-A48 CL30 |
| Seal Type | Carbon/ceramic, FKM elastomers, stainless steel |
| Engine Options | Briggs and Stratton, Honda, Kohler (gas and diesel) |
| Starting Method | Recoil |
| Mounting | Horizontal |
Applications
- High-pressure agricultural irrigation systems
- Construction site dewatering
- Mining water transfer
- Commercial and municipal water supply
- Light industrial liquid handling
- Remote field operations without electrical power access
- Sprinkler systems and pivot irrigation requiring higher operating pressure
| Modal(HP) | Discharge | Suction |
|---|---|---|
| 5.5 | 2″ | 2″ |
| 8,9 | 2″ | 2-1/2″ |
Franklin Electric FNSGF Exploded Parts
Franklin Electric FNSGF Materials and Parts
| Fig. No. | Part Description | Part No. | Materials of Construction | |||
|---|---|---|---|---|---|---|
| FNSGF-5 | FNSGF-5H | FNSGF-8 | FNSGF-8H | |||
| 1 | FNSGF Pump Case | 305460013 | Cast Iron, ASTM-A48 CL30 | |||
| 2 | FNSGF Impeller | 305459004 | 305460014 | Cast Iron, ASTM-A48 CL30 | ||
| 3 | FNSGF Motor Adapter | 305460015 | 305460016 | Cast Iron, ASTM-A48 CL30 | ||
| 12 | FNSGF Sleeve | 305458010 | 305459011 | 416 Stainless Steel | ||
| 70 | FNSGF Base, Engine Frame | 305460017 | 305459016 | CRS | ||
| 72 | FNSGF Check Valve | 305455010 | 305460018 | Cast Iron, ASTM-A48 CL30 | ||
| 73A | FNSGF Top Weight – Check Valve | 305455011 | Cast Iron, ASTM-A48 CL30 | |||
| 73B | FNSGF Bottom Weight – Check Valve | 305455012 | Cast Iron, ASTM-A48 CL30 | |||
| 74 | FNSGF Diffuser | 305460019 | Cast Iron, ASTM-A48 CL30 | |||
| 77 | FNSGF Handle | 305460020 | 305459018 | 305459019 | CRS | |
| 90 | FNSGF Mechanical Shaft Seal | 305463116 | 305463043 | CARB/CER x FKM-SS | ||
| 100A | FNSGF Case Gasket | 305463130 | Neoprene | |||
| 100B | FNSGF Flapper Valve | 305454043 | Neoprene | |||
| 100C | FNSGF Square-Ring – Volute | 305463131 | Nitrile | |||
| 200 | FNSGF Engine | See Below | Misc. | |||
| 500 | FNSGF Pipe Plug 3/4″ (2 Req.) | 305463050 | CAD-Plated Steel | |||
| 503 | FNSGF Water Slinger | 305458022 | 305456009 | Neoprene | ||
| 530A | FNSGF Nut, Flapper | 305463082 | 300 Series Stainless Steel | |||
| 530B | FNSGF Washer, Flapper | 305463084 | 300 Series Stainless Steel | |||
| 530C | FNSGF Flapper Bolt | 305463080 | 316 Stainless Steel | |||
| 530D | FNSGF Hex Bolts – Volute (4 Pack) | 305463064 | Zinc-Plated Steel | |||
| 530E | FNSGF Hex Bolt – Motor Adapter (4 Pack) | 305463120 | 305463214 | Zinc-Plated Steel | ||
| 530F | FNSGF Collar Seal – Motor Adapter (4 Pack) | 305463107 | N/A | Nylon | ||
| Not Shown | FNSGF Lockwasher – Motor Adapter (4 Pack) | N/A | 305463010 | Zinc-Plated Steel | ||
| 530G | FNSGF Hex Bolt – Check Valve (12 Pack) | 305463010 | Zinc-Plated Steel | |||
| 530H | FNSGF Hex Bolt – Base (4 Pack) | N/A | 305463090 | Zinc-Plated Steel | ||
| 530J | FNSGF Hex Nut – Base (4 Pack) | 305463062 | Zinc-Plated Steel | |||
| 530K | FNSGF Lockwasher – Base (4 Pack) | 305463092 | Zinc-Plated Steel | |||
| 530L | FNSGF Washer – Base (4 Pack) | 305463109 | Zinc-Plated Steel | |||
| 530M | FNSGF Bolt – Base Volute (4 Pack) | 305463064 | Zinc-Plated Steel | |||
| 530N | FNSGF Washer – Base Volute (4 Pack) | 305463064 | Zinc-Plated Steel | |||
| 530P | FNSGF Lockwasher – Base Volute (6 Pack) | 305463032 | Zinc-Plated Steel | |||
| 532 | FNSGF Spacer (4 Pack) | 305463213 | 305463215 | Cast Iron | ||
Note: Consult factory regarding parts support on diesel optioned units.SELF-PRIMING – FNSGF
| Model | Motor Description | Part No. |
|---|---|---|
| FNSGF-5 | Eng B/S 120232-0136-B8 206CC | 201915 |
| FNSGF-5H | Eng Honda GX160UT1TX2 5.5 hp OHV | 202001 |
| FNSGF-8 | Eng B/S 201332-0158-B1 305CC | 201918 |
| FNSGF-8H | Eng Honda GX270UTPA2 9 hp OHV | 202002 |
| FNSDF-5 | Eng Kohler KD350-5001 6.7 hp | 202061 |
| NSDF-8L-ES | Eng Kohler KD420-4001-9001 9.8 hp | 202065 |
| FNSDF-8 | Eng Kohler KD420-3100 9.8 hp | 202064 |
Franklin Electric FNSGF Ordering Information:
| Gas Engine 5.5 – 8 HP Class | ||||||
|---|---|---|---|---|---|---|
| Pump Size (Dis x Suc) | HP | Model Description | Engine Description | Order No. | Low Oil Shut-Off | Wt. |
| 2 x 2 | 9 | FNSGF-5 | Briggs & Stratton INTEK, with 3 qt. fuel tank | 90272005 | NO | 94 |
| 8.5 | FNSGF-5H | Honda, with 4 qt. fuel tank | 90272105 | YES | 94 | |
| 9 | FNSDF-5 | Kohler diesel, with 4.5 qt. fuel tank | 90274005 | NO | 134 | |
| 2 x 2-1/2 | 8 | FNSGF-8 | Briggs & Stratton INTEK, with 3 qt. fuel tank | 90272008 | NO | 118 |
| – | FNSGF-8H | Honda, with 4 qt. fuel tank | 90272108 | YES | 118 | |
| 8.5 | FNSDF-8-ES | Kohler diesel, with 5.3 qt. fuel tank | 90274108 | YES | 145 | |
| 8 | FNSDF-8 | Kohler diesel, with 5.3 qt. fuel tank | 90274008 | NO | 145 | |
Franklin Electric FNSGF Dimensional Drawings
Franklin Electric FNSGF Dimensions
| Model | Discharge | Suction | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| FNSGF-5 | 2 | 2 | 9.75 | 13.5 | 16.20 | 20.25 | 14.38 |
| FNSGF-8 | 2 | 2-1/2 | 13 | 17 | 17.31 | 23.66 | 17.75 |
Franklin Electric FNSGF Performance Curve
|
Model |
Performance Chart |
|||||||
|---|---|---|---|---|---|---|---|---|
|
Discharge Pressure in PSI at 5 Ft. Lift |
||||||||
|
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
|
|
Capacities in U.S. GPM |
||||||||
|
FNSGF-5 |
132 |
115 |
106 |
85 |
70 |
52 |
– |
– |
|
FNSGF-8 |
165 |
162 |
145 |
125 |
110 |
85 |
50 |
30 |
Frequently Asked Questions
What is the Franklin Electric Centrifugal Self Priming Gas Engine Units FNSGF used for?
The Franklin Electric Centrifugal Self Priming Gas Engine Units FNSGF are designed for high-pressure water transfer in agricultural irrigation, construction dewatering, mining, municipal water supply, and commercial applications. The enclosed impeller design allows the FNSGF to achieve heads up to 185 feet, making it the right choice when a higher operating pressure is needed compared to the semi-open impeller FBSGF series. Ken’s Distributing Company at Kendisco stocks the full FNSGF lineup for fast order fulfillment.
What is the difference between the FNSGF and the FBSGF?
The most important difference between the FNSGF and the FBSGF is the impeller design. The FBSGF uses a semi-open impeller that handles dirty water, mud, sand, and silt up to 10 percent by volume. The FNSGF uses an enclosed cast iron impeller designed for higher-pressure clean water applications, allowing it to reach heads up to 185 feet compared to 112 feet for the FBSGF. If your application requires higher discharge pressure and the water source is relatively clean, the FNSGF is the better choice. If the water contains sediment or light solids, the FBSGF is more appropriate.
What engine options are available for the FNSGF?
The FNSGF is available with Briggs and Stratton INTEK, Honda OHV, and Kohler diesel engines. The Honda-equipped FNSGF-5H and FNSGF-8H models include low oil shut-off as standard. Diesel variants are available through the FNSDF model designation, including the FNSDF-5 with a Kohler KD350 6.7 HP engine and the FNSDF-8 with a Kohler KD420 9.8 HP engine. Consult the factory regarding parts support on diesel optioned units.
What connection sizes are available on the FNSGF?
The FNSGF-5 series models use 2 inch discharge and 2 inch suction NPT connections. The FNSGF-8 series models use 2 inch discharge and 2.5 inch suction NPT connections. The larger suction connection on the 8 HP class models reduces suction losses and supports the higher flow rates those engine sizes produce. Select the connection size based on your piping system, flow requirements, and the HP class you need.
What is the maximum head and flow rate for the FNSGF series?
At 5 feet of suction lift, the FNSGF-5 delivers up to 132 GPM at 10 PSI discharge pressure, with flow continuing at 52 GPM at 60 PSI. The FNSGF-8 delivers up to 165 GPM at 10 PSI discharge pressure, with flow continuing at 30 GPM at 80 PSI. The maximum head for the series is 185 feet, which is achieved by the enclosed impeller and diffuser design that sets the FNSGF apart from other gas engine self-priming pumps in the Franklin Electric lineup.
Are diesel engine options available for the FNSGF?
Yes. The FNSDF model variants are powered by Kohler diesel engines and are available in two configurations: the FNSDF-5 with a 6.7 HP Kohler KD350 engine (order 90274005) and the FNSDF-8 with a 9.8 HP Kohler KD420 engine available in two variants (order 90274008 without electric start and 90274108 with electric start and low oil shut-off). Diesel models are heavier than gasoline counterparts and consult the factory for parts support on diesel units.
Where can I find replacement parts for the FNSGF at Kendisco?
Ken’s Distributing Company at Kendisco carries genuine Franklin Electric replacement parts for the full FNSGF series, including pump cases, impellers, motor adapters, mechanical shaft seals, sleeves, check valves, diffusers, case gaskets, and all hardware. Parts are listed by figure number for both the FNSGF-5 and FNSGF-8 model classes. Contact Kendisco directly to confirm part availability and compatibility with your specific FNSGF model before ordering.
Why Buy the Franklin Electric FNSGF from Kendisco
Ken’s Distributing Company is a trusted Franklin Electric distributor with in-depth knowledge of the full FNSGF gas engine self-priming pump family. Through Kendisco, you get access to every FNSGF configuration, from the Briggs and Stratton-powered FNSGF-5 to the Honda FNSGF-8H and the Kohler diesel FNSDF variants, along with genuine OEM repair parts organized by part number for straightforward ordering.
Whether you are selecting the right engine brand and horsepower for a high-pressure irrigation system, comparing the FNSGF enclosed impeller design to the FBSGF semi-open impeller for your specific water source, or sourcing a specific diffuser or check valve for a field repair, the team at Ken’s Distributing Company is ready to help. Order the Franklin Electric Centrifugal Self Priming Gas Engine Units FNSGF through Kendisco and get a high-pressure portable pump built for the most demanding field applications.
