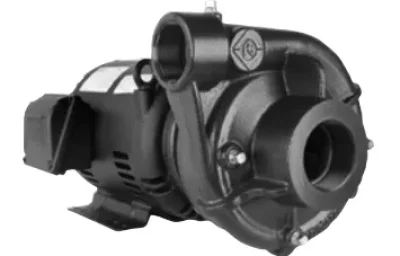

Franklin Electric Centrifugal Close Coupled AG Series Water Pump
Franklin Electric AG Series close-coupled centrifugal pump repair parts are among the most frequently ordered products at Ken’s Distributing Company (Kendisco), and for good reason. The AG Series is one of the most widely deployed centrifugal pump families in agricultural irrigation, pressure boosting, and water supply applications across the region, and keeping genuine Franklin Electric AG Series repair parts on hand is the most reliable way to minimize downtime when service is needed.
Ken’s Distributing Company stocks the complete range of genuine Franklin Electric AG Series repair and replacement parts including impellers, mechanical seals, shaft sleeves, pump cases, motor adapters, gaskets, O-rings, and all hardware components. Whether you are doing routine maintenance or rebuilding a pump after extended service, Kendisco has the parts you need in stock for fast order fulfillment.
What Is the Franklin Electric AG Series Close-Coupled Centrifugal Pump?
Franklin Electric AG Series close-coupled centrifugal pump repair parts support the AG Series pump family, which covers 9 pump configurations across the most popular hydraulic performance ranges in agricultural and commercial pumping. The AG Series produces flows up to 900 GPM at heads up to 325 feet with a maximum working pressure of 150 PSI, making it one of the higher-output close-coupled centrifugal pump families in the Franklin Electric surface pump lineup.
The AG Series features all-iron construction with ASTM-A48 CL30 cast iron volutes and impellers, 416 stainless steel shaft sleeves, standard carbon and ceramic mechanical seals with nitrile elastomers and 316 stainless steel components, and a back pull-out design that allows the rotating assembly to be serviced without disconnecting the suction or discharge plumbing. CA6NM stainless steel impellers are used on the A1.5×2-6 and A2.5×4-10 models for improved corrosion resistance on those specific configurations.
AG Series Technical Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 900 GPM |
| Maximum Head | 325 Feet |
| Maximum Working Pressure | 150 PSI |
| Maximum Temperature | 212 degrees F |
| Pump Families | 9 configurations covering the most popular hydraulic ranges |
| Motor Frame | NEMA Standard JM and JP Shaft |
| Motor Speed Options | 1800 RPM and 3600 RPM |
| Motor Enclosure Options | ODP and TEFC |
| Phase Options | Single Phase and Three Phase |
| Volute Material | Cast Iron, ASTM-A48 CL30 |
| Standard Impeller Material | Cast Iron, ASTM-A48 CL30 |
| Impeller Material (A1.5×2-6 and A2.5×4-10) | CA6NM Stainless Steel |
| Shaft Sleeve Material | 416 Stainless Steel |
| Mechanical Seal | Standard Carbon/Ceramic/Nitrile/316 Stainless Steel or Packing-Box Option |
| Pipe Connections | Threaded NPT and 125 lb Flanged Options |
| Volute Discharge Positions | Factory Horizontal with 8 Optional Positions |
| Design | Back Pull-Out for Ease of Service |
AG Series Pump Features
- Nine pump families covering the most popular hydraulic performance ranges in agricultural, commercial, and industrial pumping applications
- Designed for increased efficiency and performance compared to previous generation Franklin Electric centrifugal pump designs
- Threaded NPT and 125 lb flanged connection options to match your existing piping system without adapters
- Flow ranges up to 900 GPM across the full AG Series family
- NEMA standard JM and JP shaft motors available in 1800 and 3600 RPM with ODP or TEFC enclosures and single or three phase voltages
- Back pull-out design allows the rotating assembly to be removed for service without disconnecting suction or discharge plumbing
- Standard carbon and ceramic mechanical seal faces with nitrile elastomers and 316 stainless steel components for reliable long-term sealing
- Packing-box seal option available for applications where a traditional packed seal is preferred
- 416 stainless steel shaft sleeves protect the main shaft from wear and are replaceable as a low-cost maintenance item
- ASTM-A48 CL30 cast iron volute and impellers for heavy-duty durability across the standard AG Series configurations
- CA6NM stainless steel impellers on the A1.5×2-6 and A2.5×4-10 models for enhanced corrosion resistance on those specific variants
- Factory horizontal discharge volute with 8 optional discharge positions for maximum installation flexibility
Applications and Industries
The Franklin Electric AG Series close-coupled centrifugal pump is used across a wide range of water supply, pressure boosting, and liquid transfer applications. With 9 pump families covering flows from small residential booster sizes up to 900 GPM, the AG Series is one of the most versatile close-coupled centrifugal pump families available at Ken’s Distributing.
- Agricultural irrigation and farm water supply systems
- Pressure boosting for residential, commercial, and municipal water distribution
- Water supply and treatment facility intake and distribution
- Wash down systems in agricultural, food processing, and industrial facilities
- Water recirculation in commercial and industrial cooling and process systems
- Irrigation system booster and distribution pumping
AG Series Repair Parts: What Ken’s Distributing Carries
The Franklin Electric AG Series repair parts page at Kendisco is one of the most visited and most ordered parts pages on the entire website because the AG Series is so widely deployed across agricultural and commercial installations in the region. When your AG Series pump needs service, Ken’s Distributing Company has the parts you need without the wait.
Common Franklin Electric AG Series repair parts available at Kendisco include the following categories. Contact Ken’s Distributing with your specific pump model number or configuration to confirm part number availability and current stock status.
| Part Category | Description | Material |
|---|---|---|
| Impeller | Replacement impeller matched to your AG Series model and HP rating | Cast Iron ASTM-A48 CL30 or CA6NM Stainless Steel (A1.5×2-6 and A2.5×4-10 models) |
| Mechanical Shaft Seal | Complete mechanical seal assembly for your AG Series configuration | Carbon/Ceramic, Nitrile Elastomers, 316 Stainless Steel |
| Shaft Sleeve | Replaceable shaft sleeve to protect the main shaft from wear | 416 Stainless Steel |
| Pump Case (Volute) | Complete volute casing with 8 optional discharge positions | Cast Iron, ASTM-A48 CL30 |
| Motor Adapter | Motor adapter bracket for your specific motor frame and HP rating | Cast Iron |
| Case Gasket and O-Rings | Full seal kit for pump case reassembly | Nitrile or EPDM depending on model |
| Wear Ring | Replaceable wear ring for maintaining pump efficiency | Bronze or Cast Iron depending on model |
| Hardware Kit | Bolts, nuts, lock washers, studs for pump case and motor adapter assembly | Zinc-Plated Steel or Stainless Steel |
| Water Slinger | Shaft seal water slinger to prevent moisture ingress to bearing frame | Neoprene |
| Packing Kit | Packing rings and lantern ring for packing-box seal option | Graphite or PTFE packing |
How to Identify the Right AG Series Repair Part for Your Pump
The Franklin Electric AG Series covers 9 pump families across multiple HP ratings and connection configurations. To identify the correct replacement part for your specific pump, you will need one or more of the following pieces of information.
- Your pump model number (printed on the pump nameplate, for example A2x3-7, A3x4-8, A4x6-10)
- Your pump HP rating and motor phase (for example 5 HP single phase, 10 HP three phase)
- Your connection type (NPT threaded or 125 lb flanged)
- The figure number and part number from the exploded parts diagram for your specific model
If you have this information, contact Ken’s Distributing Company directly at kendisco.com with your model number and the part you need. The team at Kendisco will confirm the correct Franklin Electric part number for your pump configuration and check current availability for immediate order fulfillment.
MODEL NOMENCLATURE
PERFORMANCE RANGE 3600 RPM
PUMP ENERGY INDEX
|
AG Series |
Basic Model |
PEICL Number |
|---|---|---|
|
3600 rpm |
AL1157 |
0.90 |
|
A1526 |
0.92 |
|
|
A2256 |
0.92 |
|
|
A238 |
0.94 |
|
AG Series |
Basic Model |
PEICL Number |
|---|---|---|
|
3600 rpm |
A2536 |
0.98 |
|
A25410 |
0.99 |
|
|
A346 |
0.98 |
|
|
A349 |
0.97 |
PERFORMANCE RANGE 1800 RPM
PUMP ENERGY INDEX
|
AG Series |
Basic Model |
PEICL Number |
|---|---|---|
|
1800 rpm |
AL1526 |
0.97 |
|
AL2310 |
0.96 |
|
|
AL238 |
0.95 |
|
|
AL2536 |
0.95 |
|
AG Series |
Basic Model |
PEICL Number |
|---|---|---|
|
1800 rpm |
AL1526 |
0.97 |
|
AL2310 |
0.96 |
|
|
AL238 |
0.95 |
|
|
AL2536 |
0.95 |
PERFORMANCE PMA1 x 1.5 – 7
|
Basic Model |
PEICL Number |
|---|---|
|
AL1526 |
0.97 |
ORDER INFO A1 X 1.5 – 7
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
1 |
230 |
3 | 182JM | JM-1 | 5.25 | 9645219100 | A1157NM-3D2P1 | 131 |
| 5 | 182JM | JM-1 | 6.13 | 9645219100 | A1157NM-5D2P1 | 157 | |||||
| 3 | 230/460 | 3 | 145JM | JM-1 | 5.25 | 9645219105 | A1157NM-3D2P3 | 94 | |||
| 5 | 182JM | JM-1 | 6.13 | 9645219115 | A1157NM-5D2P3 | 109 | |||||
| 7.5 | 184JM | JM-1 | 7.13 | 9645219125 | A1157NM-7.5D2P3 | 120 | |||||
| 3 | 575 | 3 | 145JM | JM-1 | 5.25 | 9645219205 | A1157NM-3D2P5 | 93 | |||
| 5 | 182JM | JM-1 | 6.13 | 9645219215 | A1157NM-5D2P5 | 108 | |||||
| 7.5 | 184JM | JM-1 | 7.13 | 9645219225 | A1157NM-7.5D2P5 | 122 | |||||
| TEFC | 1 | 230 | 3 | 145JM | JM-1 | 5.25 | 9645218100 | A1157NM-3T2P1 | 107 | ||
| 5 | 184JM | JM-1 | 6.13 | 9645218110 | A1157NM-5T2P1 | 138 | |||||
| 3 | 230/460 | 3 | 182JM | JM-1 | 5.25 | 9645218105 | A1157NM-3T2P3 | 99 | |||
| 5 | 184JM | JM-1 | 6.13 | 9645218115 | A1157NM-5T2P3 | 124 | |||||
| 7.5 | 184JM | JM-1 | 7.13 | 9645218125 | A1157NM-7.5T2P3 | 146 | |||||
| 3 | 575 | 3 | 145JM | JM-1 | 5.25 | 9645219205 | A1157NM-3T2P5 | 95 | |||
| 5 | 184JM | JM-1 | 6.13 | 9645219215 | A1157NM-5T2P5 | 119 | |||||
| 7.5 | 184JM | JM-1 | 7.13 | 9645219225 | A1157NM-7.5T2P5 | 141 |
PERFORMANCE A1.5 x 2 – 6
|
Basic Model |
PEICL Number |
|---|---|
|
AL1526 |
0.92 |
ORDER INFO A1.5 x 2 – 6
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
1 |
230 |
5 |
184JM |
JM-1 |
5.44 |
9646219100 |
A1526NM-5D2P1 |
148 |
|
7.5 |
213JM |
JM-2 |
6.00 |
9646219110 |
A1526NM-7.5D2P1 |
156 |
|||||
|
10 |
215JM |
JM-2 |
6.44 |
9646219120 |
A1526NM-10D2P1 |
181 |
|||||
|
3 |
230/460 |
5 |
182JM |
JM-1 |
5.44 |
9646219105 |
A1526NM-5D2P3 |
100 |
|||
|
7.5 |
184JM |
JM-1 |
6.00 |
9646219115 |
A1526NM-7.5D2P3 |
111 |
|||||
|
10 |
213JM |
JM-2 |
6.44 |
9646219125 |
A1526NM-10D2P3 |
160 |
|||||
|
3 |
575 |
5 |
182JM |
JM-1 |
5.44 |
9646219205 |
A1526NM-5D2P5 |
99 |
|||
|
7.5 |
184JM |
JM-1 |
6.00 |
9646219215 |
A1526NM-7.5D2P5 |
113 |
|||||
|
10 |
213JM |
JM-2 |
6.44 |
9646219225 |
A1526NM-10D2P5 |
177 |
|||||
|
TEFC |
1 |
230 |
5 |
184JM |
JM-1 |
5.44 |
9646218100 |
A1526NM-5T2P1 |
129 |
||
|
7.5 |
213JM |
JM-2 |
6.00 |
9646218110 |
A1526NM-7.5T2P1 |
161 |
|||||
|
10 |
215JM |
JM-2 |
6.44 |
9646218120 |
A1526NM-10T2P1 |
161 |
|||||
|
3 |
230/460 |
5 |
184JM |
JM-1 |
5.44 |
9646218105 |
A1526NM-5T2P3 |
115 |
|||
|
7.5 |
184JM |
JM-1 |
6.00 |
9646218115 |
A1526NM-7.5T2P3 |
137 |
|||||
|
7.5 |
213JM |
JM-2 |
6.00 |
9646218116 |
9646218116 |
165 |
|||||
|
10 |
215JM |
JM-2 |
6.44 |
9646218125 |
A1526NM-10T2P3 |
170 |
|||||
|
3 |
575 |
5 |
184JM |
JM-1 |
5.44 |
9646218205 |
A1526NM-5T2P5 |
110 |
|||
|
7.5 |
213JM |
JM-2 |
6.00 |
9646218215 |
9646218215 |
194 |
|||||
|
10 |
215JM |
JM-2 |
6.44 |
9646218225 |
A1526NM-10T2P5 |
158 |
PERFORMANCE A2 X 2.5 – 6
|
Basic Model |
PEICL Number |
|---|---|
|
A2256 |
0.92 |
ORDER INFO A2 X 2.5 – 6
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
1 |
230 |
3 |
182JM |
JM-1 |
4.13 |
9647219100 |
A2256NM-3D2P1 |
119 |
|
5 |
184JM |
JM-1 |
4.88 |
9647219100 |
A2256NM-5D2P1 |
145 |
|||||
|
7.5 |
213JM |
JM-2 |
5.50 |
9647219120 |
A2256NM-7.5D2P1 |
152 |
|||||
|
10 |
215JM |
JM-2 |
6.00 |
9647219130 |
A2256NM-10D2P1 |
177 |
|||||
|
3 |
230/460 |
3 |
145JM |
JM-1 |
4.13 |
9647219105 |
A2256NM-3D2P3 |
82 |
|||
|
5 |
182JM |
JM-1 |
4.88 |
9647219115 |
A2256NM-5D2P3 |
97 |
|||||
|
7.5 |
184JM |
JM-1 |
5.50 |
9647219125 |
A2256NM-7.5D2P3 |
108 |
|||||
|
10 |
213JM |
JM-2 |
6.00 |
9647219135 |
A2256NM-10D2P3 |
156 |
|||||
|
15 |
215JM |
JM-2 |
6.41 |
9647219140 |
A2256NM-15D2P3 |
167 |
|||||
|
3 |
575 |
3 |
145JM |
JM-1 |
4.13 |
9647219205 |
A2256NM-3D2P5 |
81 |
|||
|
5 |
182JM |
JM-1 |
4.88 |
9647219215 |
A2256NM-5D2P5 |
96 |
|||||
|
7.5 |
184JM |
JM-1 |
5.50 |
9647219225 |
A2256NM-7.5D2P5 |
110 |
|||||
|
10 |
213JM |
JM-2 |
6.00 |
9647219235 |
A2256NM-10D2P5 |
173 |
|||||
|
15 |
215JM |
JM-2 |
6.41 |
9647219240 |
A2256NM-15D2P5 |
167 |
|||||
|
TEFC |
1 |
230 |
3 |
145JM |
JM-1 |
4.13 |
9647218100 |
A2256NM-3T2P1 |
95 |
||
|
5 |
184JM |
JM-1 |
4.88 |
9647218110 |
A2256NM-5T2P1 |
126 |
|||||
|
7.5 |
213JM |
JM-2 |
5.50 |
9647218120 |
A2256NM-7.5T2P1 |
157 |
|||||
|
10 |
215JM |
JM-2 |
6.00 |
9647218130 |
A2256NM-10T2P1 |
157 |
|||||
|
3 |
230/460 |
3 |
182JM |
JM-1 |
4.13 |
9647218105 |
A2256NM-3T2P3 |
87 |
|||
|
5 |
184JM |
JM-1 |
4.88 |
9647218115 |
A2256NM-5T2P3 |
112 |
|||||
|
7.5 |
184JM |
JM-1 |
5.50 |
9647218125 |
A2256NM-7.5T2P3 |
134 |
|||||
|
7.5 |
213JM |
JM-2 |
5.50 |
9647218126 |
A2256NM-7.5T2P3 |
161 |
|||||
|
10 |
215JM |
JM-2 |
6.00 |
9647218135 |
A2256NM-10T2P3 |
166 |
|||||
|
15 |
215JM |
JM-2 |
6.41 |
9647218140 |
A2256NM-15T2P3 |
205 |
|||||
|
3 |
575 |
3 |
145JM |
JM-1 |
4.13 |
9647218205 |
A2256NM-3T2P5 |
83 |
|||
|
5 |
184JM |
JM-1 |
4.88 |
9647218215 |
A2256NM-5T2P5 |
107 |
|||||
|
7.5 |
213JM |
JM-2 |
5.50 |
9647218225 |
A2256NM-7.5T2P5 |
190 |
|||||
|
10 |
215JM |
JM-2 |
6.00 |
9647218235 |
A2256NM-10T2P5 |
154 |
|||||
|
15 |
215JM |
JM-2 |
6.41 |
9647218240 |
A2256NM-15T2P5 |
205 |
PERFORMANCE A2 X 3 – 8
|
Basic Model |
PEICL Number |
|---|---|
|
A238 |
0.94 |
ORDER INFO A2 X 3 – 8
TEFC
TEFC
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
|||||||||
|
1 |
230 |
7.5 |
213JM |
JM-2 |
5.88 |
9650219100 |
A238NM-7.5D2P1 |
166 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650219110 |
A238NM-10D2P1 |
191 |
|||||
|
3 |
230/460 |
7.5 |
184JM |
JM-1 |
5.88 |
9650219105 |
A238NM-7.5D2P3 |
125 |
|||
|
10 |
213JM |
JM-2 |
6.50 |
9650219115 |
A238NM-10D2P3 |
170 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650219120 |
A238NM-15D2P3 |
181 |
|||||
|
20 |
254JM |
JM-3 |
7.94 |
9650219125 |
A238NM-20D2P3 |
245 |
|||||
|
3 |
575 |
7.5 |
184JM |
JM-1 |
5.88 |
9650219205 |
A238NM-7.5D2P5 |
127 |
|||
|
10 |
213JM |
JM-2 |
6.50 |
9650219215 |
A238NM-10D2P5 |
187 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650219220 |
A238NM-15D2P5 |
181 |
|||||
|
20 |
254JM |
JM-3 |
7.94 |
9650219225 |
A238NM-20D2P5 |
210 |
|||||
|
1 |
230 |
7.5 |
213JM |
JM-2 |
5.88 |
9650218100 |
A238NM-7.5T2P1 |
171 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650218110 |
A238NM-10T2P1 |
171 |
|||||
|
3 |
230/460 |
7.5 |
213JM |
JM-2 |
5.88 |
9650218105 |
A238NM-7.5T2P3 |
175 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650218115 |
A238NM-10T2P3 |
180 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650218120 |
A238NM-15T2P3 |
219 |
|||||
|
20 |
256JM |
JM-3 |
7.94 |
9650218125 |
A238NM-20T2P3 |
341 |
|||||
|
3 |
575 |
7.5 |
213JM |
JM-2 |
5.88 |
9650218205 |
A238NM-7.5T2P5 |
204 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650218215 |
A238NM-10T2P5 |
168 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650218220 |
A238NM-15T2P5 |
219 |
|||||
|
20 |
256JM |
JM-3 |
7.94 |
9650218225 |
A238NM-20T2P5 |
290 |
|||||
|
FLANGED |
MECHANICAL |
ODP |
|||||||||
|
1 |
230 |
7.5 |
213JM |
JM-2 |
5.88 |
9650229100 |
A238FM-7.5D2P1 |
182 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650229110 |
A238FM-10D2P1 |
207 |
|||||
|
3 |
230/460 |
7.5 |
184JM |
JM-1 |
5.88 |
9650229105 |
A238FM-7.5D2P3 |
140 |
|||
|
10 |
213JM |
JM-2 |
6.50 |
9650229115 |
A238FM-10D2P3 |
186 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650229120 |
A238FM-15D2P3 |
197 |
|||||
|
20 |
254JM |
JM-3 |
7.94 |
9650229125 |
A238FM-20D2P3 |
261 |
|||||
|
3 |
575 |
7.5 |
184JM |
JM-1 |
5.88 |
9650229205 |
A238FM-7.5D2P5 |
142 |
|||
|
10 |
213JM |
JM-2 |
6.50 |
9650229215 |
A238FM-10D2P5 |
203 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650229220 |
A238FM-15D2P5 |
197 |
|||||
|
20 |
254JM |
JM-3 |
7.94 |
9650229225 |
A238FM-20D2P5 |
226 |
|||||
|
1 |
230 |
7.5 |
213JM |
JM-2 |
5.88 |
9650228100 |
A238FM-7.5T2P1 |
187 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650228110 |
A238FM-10T2P1 |
187 |
|||||
|
3 |
230/460 |
7.5 |
213JM |
JM-2 |
5.88 |
9650228105 |
A238FM-7.5T2P3 |
191 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650228115 |
A238FM-10T2P3 |
196 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650228120 |
A238FM-15T2P3 |
235 |
|||||
|
20 |
256JM |
JM-3 |
7.94 |
9650228125 |
A238FM-20T2P3 |
357 |
|||||
|
3 |
575 |
7.5 |
213JM |
JM-2 |
5.88 |
9650228205 |
A238FM-7.5T2P5 |
220 |
|||
|
10 |
215JM |
JM-2 |
6.50 |
9650228215 |
A238FM-10T2P5 |
184 |
|||||
|
15 |
215JM |
JM-2 |
7.25 |
9650228220 |
A238FM-15T2P5 |
235 |
|||||
|
20 |
256JM |
JM-3 |
7.94 |
9650228225 |
A238FM-20T2P5 |
306 |
PERFORMANCE A2.5 X 3 – 6
|
Basic Model |
PEICL Number |
|---|---|
|
A236 |
0.98 |
ORDER INFO A2.5 X 3 – 6
TEFC
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
|||||||||
|
1 |
230 |
3 |
182JM |
JM-1 |
3.69 |
9653219100 |
A2536NM-3D2P1 |
110 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653219110 |
A2536NM-5D2P1 |
122 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653219120 |
A2536NM-7.5D2P1 |
161 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653219130 |
A2536NM-10D2P1 |
186 |
|||||
|
3 |
230/460 |
3 |
145JM |
JM-1 |
3.69 |
9653219105 |
A2536NM-3D2P3 |
90 |
|||
|
5 |
182JM |
JM-2 |
4.25/p> |
9653219115 |
A2536NM-5D2P3 |
105 |
|||||
|
7.5 |
184JM |
JM-1 |
4.81 |
9653219125 |
A2536NM-7.5D2P3 |
116 |
|||||
|
10 |
213JM |
JM-2 |
5.38 |
9653219135 |
A2536NM-10D2P3 |
165 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653219140 |
A2536NM-15D2P3 |
176 |
|||||
|
3 |
575 |
3 |
145JM |
JM-1 |
3.69 |
9653219205 |
A2536NM-3D2P5 |
89 |
|||
|
5 |
182JM |
JM-1 |
4.25 |
9653219215 |
A2536NM-5D2P5 |
104 |
|||||
|
7.5 |
184JM |
JM-1 |
4.25 |
9653219215 |
A2536NM-5D2P5 |
118 |
|||||
|
10 |
213JM |
JM-2 |
5.38 |
9653219235 |
A2536NM-10D2P5 |
182 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653219240 |
A2536NM-15D2P5 |
176 |
|||||
|
1 |
230 |
3 |
145JM |
JM-1 |
3.69 |
9653218100 |
A2536NM-3T2P1 |
120 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653218110 |
A2536NM-5T2P1 |
134 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653218120 |
A2536NM-7.5T2P1 |
166 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653218130 |
A2536NM-10TSP1 |
166 |
|||||
|
3 |
230/460 |
3 |
182JM |
JM-1 |
3.69 |
9653218105 |
A2536NM-3T2P3 |
95 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653218115 |
A2536NM-5T2P3 |
120 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653218125 |
A2536NM-7.5T2P3 |
170 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653218135 |
A2536NM-10T2P3 |
175 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653218140 |
A2536NM-15T2P3 |
214 |
|||||
|
3 |
575 |
3 |
145JM |
JM-1 |
3.69 |
9653218205 |
A2536NM-3T2P5 |
91 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653218215 |
A2536NM-5T2P5 |
115 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653218225 |
A2536NM-7.5T2P5 |
199 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653218235 |
A2536NM-10T2P5 |
163 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653218240 |
A2536NM-15T2P5 |
214 |
ORDER INFO A2.5 X 3 – 6
TEFC
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
FLANGED |
MECHANICAL |
ODP |
|||||||||
|
1 |
230 |
3 |
182JM |
JM-1 |
3.69 |
9653229100 |
A2536FM-3D2P1 |
124 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653229110 |
A2536FM-5D2P1 |
136 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653229120 |
A2536FM-7.5D2P1 |
174 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653229130 |
A2536FM-10D2P1 |
199 |
|||||
|
3 |
230/460 |
3 |
145JM |
JM-1 |
3.69 |
9653229105 |
A2536FM-3D2P3 |
104 |
|||
|
5 |
182JM |
JM-2 |
4.25/p> |
9653229115 |
A2536FM-5D2P3 |
119 |
|||||
|
7.5 |
184JM |
JM-1 |
4.81 |
9653229125 |
A2536FM-7.5D2P3 |
130 |
|||||
|
10 |
213JM |
JM-2 |
5.38 |
9653229135 |
A2536FM-10D2P3 |
178 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653229140 |
A2536FM-15D2P3 |
189 |
|||||
|
3 |
575 |
3 |
145JM |
JM-1 |
3.69 |
9653229205 |
A2536FM-3D2P5 |
103 |
|||
|
5 |
182JM |
JM-1 |
4.25 |
9653229215 |
A2536FM-5D2P5 |
118 |
|||||
|
7.5 |
184JM |
JM-1 |
4.81 |
9653229225 |
A2536FM-7.5D2P5 |
132 |
|||||
|
10 |
213JM |
JM-2 |
5.38 |
9653219235 |
A2536NM-10D2P5 |
195 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653229240 |
A2536FM-15D2P5 |
189 |
|||||
|
1 |
230 |
3 |
145JM |
JM-1 |
3.69 |
9653228100 |
A2536FM-3T2P1 |
134 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653228110 |
A2536FM-5T2P1 |
148 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653228120 |
A2536FM-7.5T2P1 |
179 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653228130 |
A2536FM-10T2P1 |
179 |
|||||
|
3 |
230/460 |
3 |
182JM |
JM-1 |
3.69 |
9653228105 |
A2536FM-3T2P3 |
109 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653228115 |
A2536FM-5T2P3 |
134 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653228125 |
A2536FM-7.5T2P3 |
183 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653228135 |
A2536FM-10T2P3 |
188 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653228240 |
A2536FM-15T2P3 |
227 |
|||||
|
3 |
575 |
3 |
145JM |
JM-1 |
3.69 |
9653228205 |
A2536FM-3T2P5 |
105 |
|||
|
5 |
184JM |
JM-1 |
4.25 |
9653228215 |
A2536FM-5T2P5 |
129 |
|||||
|
7.5 |
213JM |
JM-2 |
4.81 |
9653228225 |
A2536FM-7.5T2P5 |
212 |
|||||
|
10 |
215JM |
JM-2 |
5.38 |
9653228235 |
A2536FM-10T2P5 |
176 |
|||||
|
15 |
215JM |
JM-2 |
6.44 |
9653228240 |
A2536FM-15T2P5 |
227 |
PERFORMANCE A2.5 X 4 – 10
|
Basic Model |
PEICL Number |
|---|---|
|
A25410 |
0.99 |
ORDER INFO A2.5 X 4 – 10
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
3 |
230/460 |
20 |
254JM |
JM-3 |
7.38 |
9654219105 |
A25410NM-20D2P3 |
301 |
|
25 |
256JM |
JM-3 |
8.00 |
9654219110 |
A25410NM-25D2P3 |
323 |
|||||
|
30 |
284JM |
JM-4 |
8.38 |
9654219115 |
A25410NM-30D2P3 |
425 |
|||||
|
40 |
286JM |
JM-4 |
9.00 |
9654219120 |
A25410NM-40D2P3 |
533 |
|||||
|
3 |
575 |
20 |
254JM |
JM-3 |
7.38 |
9654219205 |
A25410NM-20D2P5 |
266 |
|||
|
25 |
256JM |
JM-3 |
8.00 |
9654219210 |
A25410NM-25D2P5 |
335 |
|||||
|
30 |
284JM |
JM-4 |
8.38 |
9654219215 |
A25410NM-30D2P5 |
480 |
|||||
|
40 |
286JM |
JM-4 |
9.00 |
9654219220 |
A25410NM-40D2P5 |
525 |
|||||
|
TEFC |
3 |
230/460 |
20 |
254JM |
JM-3 |
7.38 |
9654218105 |
A25410NM-20T2P3 |
397 |
||
|
25 |
284JM |
JM-4 |
8.00 |
9654218110 |
A25410NM-25T2P3 |
469 |
|||||
|
30 |
286JM |
JM-4 |
8.38 |
9654218115 |
A25410NM-30T2P3 |
522 |
|||||
|
40 |
324JM |
JM-4 |
9.00 |
9654218120 |
A25410NM-40T2P3 |
603 |
|||||
|
3 |
575 |
20 |
256JM |
JM-3 |
7.38 |
9654218205 |
A25410NM-20T2P5 |
346 |
|||
|
25 |
284JM |
JM-3 |
8.00 |
9654218210 |
A25410NM-25T2P5 |
478 |
|||||
|
30 |
286JM |
JM-4 |
8.38 |
9654218215 |
A25410NM-30T2P5 |
535 |
|||||
|
40 |
324JM |
JM-4 |
9.00 |
9654218220 |
A25410NM-40T2P5 |
623 |
|||||
|
FLANGED |
MECHANICAL |
ODP |
3 |
230/460 |
20 |
254JM |
JM-3 |
7.38 |
9654229105 |
A25410FM-20D2P3 |
301 |
|
25 |
256JM |
JM-3 |
8.00 |
9654229110 |
A25410FM-25D2P3 |
323 |
|||||
|
30 |
284JM |
JM-4 |
8.38 |
9654229115 |
A25410FM-30D2P3 |
425 |
|||||
|
40 |
286JM |
JM-4 |
9.00 |
9654229120 |
A25410FM-40D2P3 |
533 |
|||||
|
3 |
575 |
20 |
254JM |
JM-3 |
7.38 |
9654229205 |
9654229205 |
266 |
|||
|
25 |
256JM |
JM-3 |
8.00 |
9654229210 |
A25410FM-25D2P5 |
335 |
|||||
|
30 |
284JM |
JM-4 |
8.38 |
9654229215 |
A25410FM-30D2P5 |
480 |
|||||
|
40 |
286JM |
JM-4 |
9.00 |
9654229220 |
A25410FM-40D2P5 |
525 |
|||||
|
TEFC |
3 |
230/460 |
20 |
256JM |
JM-3 |
7.38 |
9654228105 |
A25410FM-20T2P3 |
397 |
||
|
25 |
284JM |
JM-4 |
8.00 |
9654228110 |
A25410FM-25T2P3 |
469 |
|||||
|
30 |
286JM |
JM-4 |
8.38 |
9654228115 |
A25410FM-30T2P3 |
522 |
|||||
|
40 |
324JM |
JM-4 |
9.00 |
9654228120 |
A25410FM-40T2P3 |
603 |
|||||
|
3 |
575 |
20 |
256JM |
JM-3 |
7.38 |
9654228205 |
A25410FM-20T2P5 |
346 |
|||
|
25 |
284JM |
JM-4 |
8.00 |
9654228210 |
A25410FM-25T2P5 |
478 |
|||||
|
30 |
286JM |
JM-4 |
8.38 |
9654228215 |
A25410FM-30T2P5 |
535 |
|||||
|
40 |
324JM |
JM-4 |
9.00 |
9654228220 |
A25410FM-40T2P5 |
623 |
PERFORMANCE A3 X 4 – 6
|
Basic Model |
PEICL Number |
|---|---|
|
A346 |
0.98 |
ORDER INFO A3 X 4 – 6
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
1 |
230/460 |
5 |
184JM |
JM-1 |
4.38 |
9648219130 |
A346NM-5D2P1 |
167 |
|
7.5 |
213JM |
JM-2 |
5.06 |
9648219100 |
A346NM-7.5D2P1 |
174 |
|||||
|
10 |
215JM |
JM-2 |
5.31 |
9648219110 |
A346NM-10D2P1 |
199 |
|||||
|
3 |
230/460 |
5 |
182JM |
JM-1 |
4.38 |
9648219135 |
A346NM-5D2P3 |
119 |
|||
|
7.5 |
184JM |
JM-1 |
5.06 |
9648219105 |
A346NM-7.5D2P3 |
130 |
|||||
|
10 |
213JM |
JM-2 |
5.31 |
9648219115 |
A346NM-10D2P3 |
178 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648219120 |
A346NM-15D2P3 |
189 |
|||||
|
20 |
254JM |
JM-3 |
6.44 |
9648219125 |
A346NM-20D2P3 |
246 |
|||||
|
3 |
575 |
7.5 |
184JM |
JM-1 |
5.06 |
9648219205 |
A346NM-7.5D2P5 |
132 |
|||
|
10 |
213JM |
JM-2 |
5.31 |
9648219215 |
A346NM-10D2P5 |
195 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648219220 |
A346NM-15D2P5 |
189 |
|||||
|
50 |
254JM |
JM-3 |
6.44 |
9648219225 |
A346NM-20D2P5 |
211 |
|||||
|
TEFC |
1 |
230 |
5 |
184JM |
JM-1 |
4.38 |
9648218130 |
A346NM-5T2P1 |
148 |
||
|
7.5 |
213JM |
JM-2 |
5.06 |
9648218100 |
A346NM-7.5T2P1 |
179 |
|||||
|
10 |
215JM |
JM-2 |
5.31 |
9648218110 |
A346NM-10T2P1 |
179 |
|||||
|
3 |
230/460 |
5 |
182JM |
JM-1 |
4.38 |
9648219135 |
A346NM-5T2P3 |
134 |
|||
|
7.5 |
184JM |
JM-1 |
5.06 |
9648218105 |
A346NM-7.5T2P3 |
156 |
|||||
|
7.5 |
213JM |
JM-2 |
5.06 |
9648218106 |
A346NM-7.5T2P3 |
283 |
|||||
|
10 |
215JM |
JM-2 |
5.31 |
9648218115 |
A346NM-10T2P3 |
188 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648218120 |
A346NM-15T2P3 |
227 |
|||||
|
20 |
256JM |
JM-3 |
6.44 |
9648218125 |
A346NM-20T2P3 |
342 |
|||||
|
3 |
575 |
5 |
184JM |
JM-1 |
4.38 |
9648218235 |
A346NM-5T2P5 |
129 |
|||
|
7.5 |
213JM |
JM-2 |
5.06 |
9648218205 |
A346NM-7.5T2P5 |
212 |
|||||
|
10 |
215JM |
JM-2 |
5.31 |
9648218215 |
A346NM-10T2P5 |
176 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648218220 |
A346NM-15T2P5 |
227 |
|||||
|
20 |
256JM |
JM-3 |
6.44 |
9648218225 |
A346NM-20T2P5 |
291 |
|||||
|
FLANGED |
MECHANICAL |
ODP |
1 |
230 |
7.5 |
213JM |
JM-2 |
5.06 |
9648229100 |
A346FM-7.5D2P1 |
183 |
|
10 |
215JM |
JM-2 |
5.31 |
9648229110 |
A346FM-10D2P1 |
208 |
|||||
|
3 |
230/460 |
7.5 |
184JM |
JM-3 |
5.06 |
9648229105 |
A346FM-7.5D2P3 |
139 |
|||
|
10 |
213JM |
JM-2 |
5.31 |
9648229115 |
A346FM-10D2P3 |
187 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648229120 |
A346FM-15D2P3 |
198 |
|||||
|
20 |
254JM |
JM-3 |
6.44 |
9648229225 |
A346FM-20D2P5 |
220 |
|||||
|
3 |
575 |
7.5 |
184JM |
JM-1 |
5.06 |
9648229205 |
A346FM-7.5D2P5 |
141 |
|||
|
10 |
213JM |
JM-2 |
5.31 |
9648229215 |
A346FM-10D2P5 |
204 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648229220 |
A346FM-15D2P5 |
198 |
|||||
|
20 |
254JM |
JM-3 |
6.44 |
9648229225 |
A346FM-20D2P5 |
220 |
|||||
|
TEFC |
1 |
230 |
7.5 |
213JM |
JM-2 |
5.06 |
9648228100 |
A346FM-7.5T2P1 |
188 |
||
|
10 |
215JM |
JM-2 |
5.31 |
9648228110 |
A346FM-10T2P1 |
188 |
|||||
|
3 |
230/460 |
7.5 |
184JM |
JM-1 |
5.06 |
9648228105 |
A346FM-7.5T2P3 |
165 |
|||
|
7.5 |
213JM |
JM-2 |
5.06 |
9648228106 |
A346FM-7.5T2P3 |
182 |
|||||
|
10 |
215JM |
JM-2 |
5.31 |
9648228115 |
A346FM-10T2P3 |
1197 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648228120 |
A346FM-15T2P3 |
236 |
|||||
|
20 |
256JM |
JM-3 |
6.44 |
9648228125 |
A346FM-20T2P3 |
351 |
|||||
|
3 |
575 |
7.5 |
213JM |
JM-2 |
5.06 |
9648228205 |
A346FM-7.5T2P5 |
221 |
|||
|
10 |
215JM |
JM-2 |
5.31 |
9648228215 |
A346FM-10T2P5 |
185 |
|||||
|
15 |
215JM |
JM-2 |
5.94 |
9648228220 |
A346FM-15T2P5 |
236 |
|||||
|
20 |
256JM |
JM-3 |
6.44 |
9648228225 |
A346FM-20T2P5 |
300 |
ORDER INFO A3 X 4 – 6
Connections
Seal
Encl
PH
Voltage
HP
Motor Frame
Motor Fit code
Imp Trim
Order No
Description
Wt
|
NPT |
PACKING |
ODP |
1 |
230/460 |
7.5 |
213JP |
JP-2 |
5.06 |
9648119100 |
A346NP-7.5D2P1 |
189 |
|
10 |
215JP |
JP-2 |
5.31 |
9648119110 |
A346NP-10D2P1 |
189 |
|||||
|
3 |
230/460 |
7.5 |
184JP |
JP-1 |
5.06 |
9648119105 |
A346NP-7.5D2P3 |
117 |
|||
|
10 |
213JP |
JP-2 |
5.31 |
9648119115 |
A346NP-10D2P3 |
163 |
|||||
|
15 |
215JP |
JP-2 |
5.94 |
9648119120 |
A346NP-15D2P3 |
196 |
|||||
|
50 |
254JP |
JP-2 |
6.44 |
9648119125 |
A346NP-20D2P3 |
247 |
|||||
|
3 |
575 |
7.5 |
184JP |
JP-1 |
5.06 |
9648119205 |
A346NP-7.5D2P5 |
127 |
|||
|
10 |
213JP |
JP-2 |
5.31 |
9648119215 |
A346NP-10D2P5 |
185 |
|||||
|
15 |
215JP |
JP-2 |
5.94 |
9648119220 |
A346NP-15D2P5 |
199 |
|||||
|
20 |
254JP |
JP-3 |
6.44 |
9648119225 |
A346NP-20D2P5 |
219 |
|||||
|
TEFC |
1 |
230 |
7.5 |
213JP |
JP-2 |
5.06 |
9648118100 |
A346NP-7.5T2P1 |
211 |
||
|
10 |
215JP |
JP-2 |
5.31 |
9648118110 |
A346NP-10T2P1 |
223 |
|||||
|
3 |
230/460 |
7.5 |
213JP |
JP-2 |
5.06 |
9648118105 |
A346NP-7.5T2P3 |
150 |
|||
|
10 |
215JP |
JP-2 |
5.31 |
9648118115 |
A346NP-10T2P3 |
126 |
|||||
|
15 |
215JP |
JP-2 |
5.94 |
9648118120 |
A346NP-15T2P3 |
126 |
|||||
|
20 |
256JP |
JP-2 |
6.44 |
9648118125 |
A346NP-20T2P3 |
333 |
|||||
|
3 |
575 |
7.5 |
213JP |
JP-2 |
5.06 |
9648118205 |
A346NP-7.5T2P5 |
207 |
|||
|
10 |
215JP |
JP-2 |
5.31 |
9648118215 |
A346NP-10T2P5 |
231 |
|||||
|
15 |
254JP |
JP-2 |
5.94 |
9648118220 |
A346NP-15T2P5 |
304 |
|||||
|
20 |
256JP |
JP-2 |
6.44 |
9648118225 |
A346NP-20T2P5 |
337 |
|||||
|
FLANGED |
PACKING |
ODP |
1 |
230/460 |
7.5 |
213JP |
JP-2 |
5.06 |
9648129100 |
A346FP-7.5D2P1 |
200 |
|
10 |
215JP |
JP-2 |
5.31 |
9648129110 |
A346FP-10D2P1 |
200 |
|||||
|
3 |
230/460 |
7.5 |
184JP |
JP-1 |
5.06 |
9648129105 |
A346FP-7.5D2P3 |
127 |
|||
|
10 |
213JP |
JP-2 |
5.31 |
9648129115 |
A346FP-10D2P3 |
174 |
|||||
|
15 |
215JP |
JP-2 |
5.94 |
9648129120 |
A346FP-15D2P3 |
207 |
|||||
|
20 |
254JP |
JP-2 |
6.44 |
9648129125 |
A346FP-20D2P3 |
258 |
|||||
|
3 |
575 |
7.5 |
184JP |
JP-1 |
5.06 |
9648129205 |
A346FP-7.5D2P5 |
137 |
|||
|
10 |
213JP |
JP-2 |
5.31 |
9648129215 |
A346FP-10D2P5 |
196 |
|||||
|
15 |
215JP |
JP-2 |
5.94 |
9648129220 |
A346FP-15D2P5 |
210 |
|||||
|
20 |
254JP |
JP-2 |
6.44 |
9648129225 |
A346FP-20D2P5 |
230 |
|||||
|
TEFC |
1 |
230 |
7.5 |
213JP |
JP-2 |
5.06 |
9648128100 |
A346FP-7.5T2P1 |
222 |
||
|
10 |
215JP |
JP-2 |
5.31 |
9648128110 |
A346FP-10T2P1 |
234 |
|||||
|
3 |
230/460 |
7.5 |
213JP |
JP-2 |
5.06 |
9648128105 |
A346FP-7.5T2P3 |
160 |
|||
|
10 |
215JP |
JP-2 |
5.31 |
9648128115 |
A346FP-10T2P3 |
126 |
|||||
|
15 |
215JP |
JP-2 |
5.94 |
9648128120 |
A346FP-15T2P3 |
126 |
|||||
|
20 |
256JP |
JP-2 |
6.44 |
9648128125 |
A346FP-20T2P3 |
344 |
|||||
|
3 |
575 |
7.5 |
213JP |
JP-2 |
5.06 |
9648128205 |
A346FP-7.5T2P5 |
218 |
|||
|
10 |
215JP |
JP-2 |
5.31 |
9648128215 |
A346FP-10T2P5 |
242 |
|||||
|
15 |
254JP |
JP-2 |
5.94 |
9648128220 |
A346FP-15T2P5 |
315 |
|||||
|
20 |
256JP |
JP-2 |
6.44 |
9648128225 |
A346FP-20T2P5 |
348 |
PERFORMANCE A3 X 4 – 9
|
Basic Model |
PEICL Number |
|---|---|
|
A349 |
0.97 |
ORDER INFO A3 X 4 – 9
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
ODP |
3 |
230/460 |
30 |
284JM |
JM-4 |
6.88 |
9649219100 |
A349NM-30D2P3 |
372 |
|
40 |
286JM |
JM-4 |
7.31 |
9649219105 |
A349NM-40D2P3 |
480 |
|||||
|
50 |
324JM |
JM-4 |
7.88 |
9649219110 |
A349NM-50D2P3 |
484 |
|||||
|
60 |
326JM |
JM-4 |
8.56 |
9649219115 |
A349NM-60D2P3 |
714 |
|||||
|
75 |
364JM |
JM-4 |
9.00 |
9649219120 |
A349NM-75D2P3 |
923 |
|||||
|
3 |
575 |
30 |
284JM |
JM-4 |
6.88 |
9649219200 |
A349NM-30D2P5 |
427 |
|||
|
40 |
286JM |
JM-4 |
7.31 |
9649219205 |
A349NM-40D2P5 |
472 |
|||||
|
50 |
324JM |
JM-4 |
7.88 |
9649219210 |
A349NM-50D2P5 |
635 |
|||||
|
60 |
326JM |
JM-4 |
8.56 |
9649219215 |
A349NM-60D2P5 |
632 |
|||||
|
75 |
364JM |
JM-4 |
9.00 |
9649219220 |
A349NM-75D2P5 |
923 |
|||||
|
TEFC |
3 |
230/460 |
30 |
286JM |
JM-4 |
6.88 |
9649218100 |
A349NM-30T2P3 |
469 |
||
|
40 |
324JM |
JM-4 |
7.31 |
9649218105 |
A349NM-40T2P3 |
550 |
|||||
|
50 |
326JM |
JM-4 |
7.88 |
9649218110 |
A349NM-50T2P3 |
653 |
|||||
|
60 |
364JM |
JM-4 |
8.56 |
9649218115 |
A349NM-60T2P3 |
888 |
|||||
|
75 |
365JM |
JM-4 |
9.00 |
9649218120 |
A349NM-75T2P3 |
910 |
|||||
|
3 |
575 |
30 |
286JM |
JM-4 |
6.88 |
9649218200 |
A349NM-30T2P5 |
482 |
|||
|
40 |
324JM |
JM-4 |
7.31 |
9649218205 |
A349NM-40T2P5 |
570 |
|||||
|
50 |
326JM |
JM-4 |
7.88 |
9649218210 |
A349NM-50T2P5 |
636 |
|||||
|
60 |
364JM |
JM-4 |
8.56 |
9649218215 |
A349NM-60T2P5 |
888 |
|||||
|
75 |
365JM |
JM-4 |
9.00 |
9649218220 |
A349NM-75T2P5 |
910 |
|||||
|
FLANGED |
MECHANICAL |
ODP |
3 |
230/460 |
30 |
284JM |
JM-4 |
6.88 |
9649229100 |
A349FM-30D2P3 |
371 |
|
40 |
286JM |
JM-4 |
7.31 |
9649229105 |
A349FM-40D2P3 |
479 |
|||||
|
50 |
224JM |
JM-4 |
7.88 |
9649229110 |
A349FM-50D2P3 |
483 |
|||||
|
60 |
326JM |
JM-4 |
8.56 |
9649229115 |
A349FM-60D2P3 |
713 |
|||||
|
75 |
364JM |
JM-4 |
9.00 |
9649229120 |
A349FM-75D2P3 |
922 |
|||||
|
3 |
575 |
30 |
284JM |
JM-4 |
6.88 |
9649229200 |
A349FM-30D2P5 |
426 |
|||
|
45 |
286JM |
JM-4 |
7.31 |
9649229205 |
A349FM-40D2P5 |
471 |
|||||
|
50 |
324JM |
JM-4 |
7.88 |
9649229210 |
A349FM-50D2P5 |
634 |
|||||
|
60 |
326JM |
JM-4 |
8.56 |
9649229215 |
A349FM-60D2P5 |
631 |
|||||
|
75 |
364JM |
JM-4 |
9.00 |
9649229220 |
A349FM-75D2P5 |
922 |
|||||
|
TEFC |
3 |
230/460 |
30 |
286JM |
JM-4 |
6.88 |
9649228100 |
A349FM-30T2P3 |
468 |
||
|
40 |
324JM |
JM-4 |
7.31 |
9649228105 |
A349FM-40T2P3 |
549 |
|||||
|
50 |
326JM |
JM-4 |
7.88 |
9649228110 |
A349FM-50T2P3 |
652 |
|||||
|
60 |
364JM |
JM-4 |
8.56 |
9649228115 |
A349FM-60T2P3 |
887 |
|||||
|
75 |
365JM |
JM-4 |
9.00 |
9649228120 |
A349FM-75T2P3 |
909 |
|||||
|
3 |
575 |
30 |
286JM |
JM-4 |
6.88 |
9649228200 |
A349FM-30T2P5 |
481 |
|||
|
25 |
324JM |
JM-4 |
7.31 |
9649228205 |
A349FM-40T2P5 |
569 |
|||||
|
50 |
326JM |
JM-4 |
7.88 |
9649228210 |
A349FM-50T2P5 |
635 |
|||||
|
60 |
364JM |
JM-4 |
8.56 |
9649228215 |
A349FM-60T2P5 |
887 |
|||||
|
75 |
365JM |
JM-4 |
9.00 |
9649228220 |
A349FM-75T2P5 |
909 |
ORDER INFO A3 X 4 – 9
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
PACKING |
ODP |
3 |
230/460 |
30 |
284JP |
JP-3 |
6.88 |
9649119100 |
A349NP-30D2P3 |
448 |
|
40 |
286JP |
JP-3 |
7.31 |
9649119105 |
A349NP-40D2P3 |
532 |
|||||
|
50 |
324JP |
JP-3 |
7.88 |
9649119110 |
A349NP-50D2P3 |
593 |
|||||
|
60 |
326JP |
JP-3 |
8.56 |
9649119115 |
A349NP-60D2P3 |
679 |
|||||
|
75 |
364JPZ |
JPZ-2P |
9.00 |
9649119120 |
A349NP-75D2P3 |
810 |
|||||
|
3 |
575 |
30 |
284JP |
JP-3 |
6.88 |
9649119200 |
A349NP-30D2P5 |
448 |
|||
|
40 |
286JP |
JP-3 |
7.31 |
9649119205 |
A349NP-40D2P5 |
532 |
|||||
|
50 |
324JP |
JP-3 |
7.88 |
9649119210 |
A349NP-50D2P5 |
611 |
|||||
|
60 |
326JP |
JP-3 |
8.56 |
9649119215 |
A349NP-60D2P5 |
697 |
|||||
|
75 |
364JP |
JPZ-2P |
9.00 |
9649119220 |
A349NP-75D2P5 |
871 |
|||||
|
TEFC |
3 |
230/460 |
30 |
286JP |
JP-3 |
6.88 |
9649118100 |
A349NP-30T2P3 |
490 |
||
|
40 |
324JP |
JP-3 |
7.31 |
9649118105 |
A349NP-40T2P3 |
525 |
|||||
|
50 |
326JP |
JP-3 |
7.88 |
9649118110 |
A349NP-50T2P3 |
664 |
|||||
|
60 |
364JPZ |
JPZ-2P |
8.56 |
9649118115 |
A349NP-60T2P3 |
699 |
|||||
|
75 |
365JPZ |
JPZ-2P |
9.00 |
9649118120 |
A349NP-75T2P3 |
962 |
|||||
|
3 |
575 |
30 |
286JP |
JP-3 |
6.88 |
9649118200 |
A349NM-30T2P5 |
507 |
|||
|
40 |
324JP |
JP-3 |
7.31 |
9649118205 |
A349NP-40T2P5 |
662 |
|||||
|
50 |
326JP |
JP-3 |
7.88 |
9649118210 |
A349NP-50T2P5 |
699 |
|||||
|
60 |
364JPZ |
JPZ-2P |
8.56 |
9649118215 |
A349NP-60T2P5 |
940 |
|||||
|
75 |
365JPZ |
JPZ-2P |
9.00 |
9649118220 |
A349NP-75T2P5 |
1018 |
|||||
|
FLANGED |
PACKIJNG |
ODP |
3 |
230/460 |
30 |
284JP |
JP-3 |
6.88 |
9649129100 |
A349FP-30D2P3 |
455 |
|
40 |
286JP |
JP-3 |
7.31 |
9649129105 |
A349FP-40D2P3 |
539 |
|||||
|
50 |
224JP |
JP-3 |
7.88 |
9649129110 |
A349FP-50D2P3 |
600 |
|||||
|
60 |
326JM |
JP-3 |
8.56 |
9649129115 |
A349FP-60D2P3 |
686 |
|||||
|
75 |
364JPZ |
JPZ-2P |
9.00 |
9649129120 |
A349FP-75D2P3 |
817 |
|||||
|
3 |
575 |
30 |
284JP |
JP-3 |
6.88 |
9649129200 |
A349FP-30D2P5 |
455 |
|||
|
45 |
286JP |
JP-3 |
7.31 |
9649129205 |
A349FP-40D2P5 |
539 |
|||||
|
50 |
324JP |
JP-3 |
7.88 |
9649129210 |
A349FP-50D2P5 |
618 |
|||||
|
60 |
326JP |
JP-3 |
8.56 |
9649129215 |
A349FP-60D2P5 |
704 |
|||||
|
75 |
364JPZ |
JPZ-2P |
9.00 |
9649129220 |
A349FP-75D2P5 |
878 |
|||||
|
TEFC |
3 |
230/460 |
30 |
286JP |
JP-3 |
6.88 |
9649128100 |
A349FP-30T2P3 |
497 |
||
|
40 |
324JP |
JP-3 |
7.31 |
9649228105 |
A349FP-40T2P3 |
532 |
|||||
|
50 |
326JP |
JP-3 |
7.88 |
9649128110 |
A349FP-50T2P3 |
671 |
|||||
|
60 |
364JPZ |
JPZ-2P |
8.56 |
9649128115 |
A349FP-60T2P3 |
706 |
|||||
|
75 |
365JPZ |
JPZ-2P |
9.00 |
9649128120 |
A349FP-75T2P3 |
969 |
|||||
|
3 |
575 |
30 |
286JP |
JP-3 |
6.88 |
9649128200 |
A349FP-30T2P5 |
514 |
|||
|
25 |
324JP |
JP-3 |
7.31 |
9649128205 |
A349FP-40T2P5 |
669 |
|||||
|
50 |
326JP |
JP-3 |
7.88 |
9649128210 |
A349FP-50T2P5 |
706 |
|||||
|
60 |
364JPZ |
JPZ-2P |
8.56 |
9649128215 |
A349FP-60T2P5 |
947 |
|||||
|
75 |
365JPZ |
JPZ-2P |
9.00 |
9649128220 |
A349FP-75T2P5 |
1025 |
PERFORMANCE AL1 X 1.5 – 7
|
Basic Model |
PEICL Number |
|---|---|
|
A1157 |
0.97 |
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
7.13 |
9645218325 |
AL1157NM-1T4P3 |
85 |
PERFORMANCE AL1.5 X 2 – 6
|
Basic Model |
PEICL Number |
|---|---|
|
A1526 |
0.97 |
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
6.00 |
9646218315 |
AL1526NM-1T4P3 |
76 |
|
1.5 |
143JM |
JM-1 |
6.43 |
9646218325 |
AL1526NM-1.5T4P3 |
80 |
PERFORMANCE AL2 X 3 – 8
|
Basic Model |
PEICL Number |
|---|---|
|
AL238 |
0.95 |
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
1 |
230 |
3 |
184JM |
JM-1 |
7.94 |
9650218355 |
AL238NM-3T4P1 |
130 |
|
3 |
230/460 |
1 |
143JM |
JM-1 |
5.88 |
9650218305 |
AL238NM-1T4P3 |
90 |
|||
|
1.5 |
143JM |
JM-1 |
6.50 |
9650218315 |
AL238NM-1.5T4P3 |
94 |
|||||
|
2 |
145JM |
JM-1 |
7.25 |
9650218320 |
AL238NM-2T4P3 |
100 |
|||||
|
3 |
182JM |
JM-1 |
7.94 |
9650218325 |
AL238NM-3T4P3 |
126 |
|||||
|
FLANGED |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
5.88 |
9650228305 |
AL238FM-1T4P3 |
105 |
|
1.5 |
143JM |
JM-1 |
6.50 |
9650228315 |
AL238FM-1.5T4P3 |
109 |
|||||
|
2 |
145JM |
JM-1 |
7.25 |
9650228320 |
AL238FM-2T4P3 |
115 |
|||||
|
13 |
182JM |
JM-1 |
7.94 |
9650228325 |
AL238FM-3T4P3 |
141 |
PERFORMANCE AL2 X 3 – 10
|
Basic Model |
PEICL Number |
|---|---|
|
AL2310 |
0.96 |
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
6.75 |
9651218305 |
AL2310NM-1T4P3 |
127 |
|
1.5 |
143JM |
JM-1 |
7.38 |
9651218315 |
AL2310NM-1.5T4P3 |
131 |
|||||
|
2 |
145JM |
JM-1 |
8.25 |
9651218320 |
AL2310NM-2T4P3 |
137 |
|||||
|
3 |
182JM |
JM-1 |
9.00 |
9651218325 |
AL2310NM-3T4P3 |
163 |
|||||
|
FLANGED |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
6.75 |
9651228305 |
AL2310FM-1T4P3 |
120 |
|
1.5 |
143JM |
JM-1 |
7.38 |
9651228315 |
AL2310FM-1.5T4P3/p> |
124 |
|||||
|
2 |
145JM |
JM-1 |
8.25 |
9651228320 |
AL2310FM-2T4P3 |
130 |
|||||
|
13 |
182JM |
JM-1 |
9.00 |
9651228325 |
AL2310FM-3T4P3 |
156 |
PERFORMANCE AL2.5 X 3 – 6
|
Basic Model |
PEICL Number |
|---|---|
|
AL2310 |
0.96 |
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
4.81 |
9653218325 |
AL2536NM-1T4P3 |
81 |
|
1.5 |
143JM |
JM-1 |
5.38 |
9653218335 |
AL2536NM-1.5T4P3 |
85 |
|||||
|
2 |
145JM |
JM-1 |
6.43 |
9653218340 |
AL2536NM-2T4P3 |
91 |
|||||
|
FLANGED |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
4.81 |
9653228325 |
AL2536FM-1T4P3 |
95 |
|
1.5 |
143JM |
JM-1 |
5.38 |
9653228335 |
AL2536FM-1.5T4P3 |
99 |
|||||
|
2 |
145JM |
JM-1 |
6.43 |
9653228340 |
AL2536FM-2T4P3 |
105 |
PERFORMANCE AL2.5 X 4 – 10
|
Basic Model |
PEICL Number |
|---|---|
|
AL25410 |
0.99 |
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
1 |
230 |
3 |
184JM |
JM-1 |
7.38 |
9654218330 |
AL25410NM-3T4P1B |
192 |
|
3 |
184JM |
JM-1 |
8.00 |
9654218335 |
AL25410NM-3T4P1 |
192 |
|||||
|
5 |
215JM |
JM-2 |
8.38 |
9654218340 |
AL25410NM-5T4P1B |
206 |
|||||
|
5 |
215JM |
JM-2 |
9.00 |
9654218345 |
AL25410NM-5T4P1 |
206 |
|||||
|
3 |
230/460 |
1 |
182JM |
JM-1 |
7.38 |
9654218305 |
AL25410NM-3T4P3B |
188 |
|||
|
3 |
182JM |
JM-1 |
8.00 |
9654218310 |
AL25410NM-3T4P3 |
188 |
|||||
|
5 |
184JM |
JM-1 |
8.38 |
9654218315 |
AL25410NM-5T4P3B |
205 |
|||||
|
5 |
184JM |
JM-1 |
9.00 |
9654218320 |
AL25410NM-5T4P3 |
205 |
|||||
|
FLANGED |
MECHANICAL |
TEFC |
3 |
230/460 |
3 |
182JM |
JM-1 |
7.38 |
9654228305 |
AL25410FM-3T4P3B |
186 |
|
3 |
182JM |
JM-1 |
8.00 |
9654228310 |
AL25410FM-3T4P3 |
186 |
|||||
|
5 |
184JM |
JM-1 |
8.38 |
9654228315 |
AL25410FM-5T4P3B |
203 |
|||||
|
5 |
184JM |
JM-1 |
9.00 |
9654228320 |
AL25410FM-5T4P3 |
203 |
PERFORMANCE AL3 X 4 – 6
|
Basic Model |
PEICL Number |
|---|---|
|
AL346 |
0.91 |
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
1 |
230 |
3 |
184JM |
JM-1 |
6.44 |
9648218355 |
AL346NM-3T4P1 |
135 |
|
3 |
230/460 |
1 |
143JM |
JM-1 |
5.06 |
9648218305 |
AL346NM-1T4P3 |
95 |
|||
|
1.5 |
143JM |
JM-1 |
5.31 |
9648218315 |
AL346NM-1.5T4P3 |
99 |
|||||
|
2 |
145JM |
JM-1 |
5.94 |
9648218320 |
AL346NM-2T4P3 |
105 |
|||||
|
3 |
182JM |
JM-1 |
6.44 |
9648218325 |
AL346NM-3T4P3 |
131 |
|||||
|
FLANGED |
MECHANICAL |
TEFC |
3 |
230/460 |
1 |
143JM |
JM-1 |
5.06 |
9648228305 |
AL346FM-1T4P3 |
104 |
|
1.5 |
143JM |
JM-1 |
5.31 |
9648228315 |
AL238FM-1.5T4P3 |
108 |
|||||
|
2 |
145JM |
JM-1 |
5.94 |
9648228320 |
AL346FM-2T4P3 |
114 |
|||||
|
13 |
182JM |
JM-1 |
6.44 |
9648228325 |
AL346FM-2T4P3 |
140 |
PERFORMANCE AL3 X 4 – 9
|
Basic Model |
PEICL Number |
|---|---|
|
AL349 |
0.98 |
ORDER INFO AL3 X 4 – 9
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPT |
MECHANICAL |
TEFC |
1 |
230 |
5 |
215JM |
JM-2 |
6.88 |
9649218325 |
AL349NM-5T4P1B |
248 |
|
5 |
215JM |
JM-2 |
7.31 |
9649218330 |
AL349NM-5T4P1 |
248 |
|||||
|
7.5 |
215JM |
JM-2 |
7.88 |
9649218335 |
AL349NM-7.5T4P1B |
248 |
|||||
|
7.5 |
215JM |
JM-2 |
8.56 |
9649218340 |
AL349NM-7.5T4P1 |
248 |
|||||
|
10 |
215JM |
JM-2 |
9.00 |
9649218345 |
AL349NM-10T4P1 |
248 |
|||||
|
3 |
230/460 |
5 |
184JM |
JM-1 |
6.88 |
9649218300 |
AL349NM-5T4P3B |
189 |
|||
|
5 |
184JM |
JM-1 |
7.31 |
9649218305 |
AL349NM-5T4P3 |
189 |
|||||
|
7.5 |
213JM |
JM-2 |
7.88 |
9649218310 |
AL349NM-7.5T4P3B |
231 |
|||||
|
7.5 |
213JM |
JM-2 |
8.56 |
9649218315 |
AL349NM-7.5T4P3 |
231 |
|||||
|
10 |
215JM |
JM-2 |
9.00 |
9649218320 |
AL349NM-10T4P3 |
262 |
|||||
|
575 |
5 |
184JM |
JM-1 |
6.88 |
9649218400 |
AL349NM-5T4P5B |
189 |
||||
|
5 |
184JM |
JM-1 |
7.31 |
9649218405 |
AL349NM-5T4P5 |
189 |
|||||
|
7.5 |
213JM |
JM-2 |
7.88 |
9649218410 |
AL349NM-7.5T4P5B |
224 |
|||||
|
7.5 |
213JM |
JM-2 |
8.56 |
9649218415 |
AL349NM-7.5T4P5 |
224 |
|||||
|
10 |
215JM |
JM-2 |
9.00 |
9649218420 |
AL349NM-10T4P5 |
262 |
|||||
|
FLANGED |
MECHANICAL |
TEFC |
1 |
230 |
5 |
215JM |
JM-2 |
6.88 |
9649228325 |
AL349FM-5T4P1B |
247 |
|
5 |
215JM |
JM-2 |
7.31 |
9649228330 |
AL349FM-5T4P1 |
248 |
|||||
|
7.5 |
215JM |
JM-2 |
7.88 |
9649228335 |
AL349FM-7.5T4P1B |
247 |
|||||
|
7.5 |
215JM |
JM-2 |
8.56 |
9649228340 |
AL349FM-7.5T4P1 |
247 |
|||||
|
10 |
215JM |
JM-2 |
9.00 |
9649228345 |
AL349FM-10T4P1 |
247 |
|||||
|
3 |
230/460 |
5 |
184JM |
JM-1 |
6.88 |
9649228300 |
AL349FM-5T4P3B |
188 |
|||
|
5 |
184JM |
JM-1 |
7.31 |
9649228305 |
AL349FM-5T4P3 |
188 |
|||||
|
7.5 |
213JM |
JM-2 |
7.88 |
9649228310 |
AL349FM-7.5T4P3B |
230 |
|||||
|
7.5 |
213JM |
JM-2 |
8.56 |
9649228315 |
AL349FM-7.5T4P3 |
230 |
|||||
|
10 |
215JM |
JM-2 |
9.00 |
9649228320 |
AL349FM-10T4P3 |
261 |
|||||
|
575 |
5 |
184JM |
JM-1 |
6.88 |
9649228400 |
AL349FM-5T4P5B |
188 |
||||
|
5 |
184JM |
JM-1 |
7.31 |
9649228405 |
AL349FM-5T4P5 |
188 |
|||||
|
7.5 |
213JM |
JM-2 |
7.88 |
9649228410 |
AL349FM-7.5T4P5B |
223 |
|||||
|
7.5 |
213JM |
JM-2 |
8.56 |
9649228415 |
AL349FM-7.5T4P5 |
262 |
|||||
|
10 |
215JM |
JM-2 |
9.00 |
9649228420 |
AL349FM-10T4P5 |
261 |
PERFORMANCE AL3 X 4 – 10
|
Basic Model |
PEICL Number |
|---|---|
|
AL3410 |
0.90 |
ORDER INFO AL3 X 4 – 10
|
Connections |
Seal |
Encl |
PH |
Voltage |
HP |
Motor Frame |
Motor Fit code |
Imp Trim |
Order No |
Description |
Wt |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
FLANGED |
MECHANICAL |
TEFC |
1 |
230 |
5 |
215JM |
JM-2 |
8.00 |
9658228340 |
AL3410FM-5T4P1 |
211 |
|
3 |
230/460 |
5 |
184JM |
JM-1 |
8.00 |
9658228305 |
AL3410FM-5T4P3 |
210 |
|||
|
7.5 |
213JM |
JM-2 |
9.25 |
9658228315 |
AL3410FM-7.5T4P3 |
255 |
|||||
|
10 |
213JM |
JM-2 |
9.75 |
9658228320 |
AL3410FM-10T4P3 |
286 |
|||||
|
15 |
254JM |
JM-3 |
10.25 |
9658228325 |
AL3410FM-15T4P3 |
290 |
|||||
|
3 |
575 |
5 |
184JM |
JM-1 |
8.00 |
9658228405 |
AL3410FM-5T4P5 |
210 |
|||
|
7.5 |
213JM |
JM-2 |
9.25 |
9658228415 |
AL3410FM-7.5T4P5 |
248 |
|||||
|
10 |
213JM |
JM-2 |
9.75 |
9658228420 |
AL3410FM-10T4P5 |
286 |
|||||
|
15 |
254JM |
JM-3 |
10.25 |
9658228425 |
AL3410FM-15T4P5 |
405 |
DIMENSIONS
7.5
1
208-230
184JM
9645219120
A1157NM-7.5D2P1
8.50
6.50
4.50
3.75
4.50/5.50
0.41
6.57
5.00
2.50
4.12
7.58
3.50
4.82
20.22
7.5
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1157 |
3600 |
ODP |
3 |
1 |
115/208-230 |
182JM |
9645219100 |
A1157NM-3D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
18.82 |
|
3 |
230/460 |
145JM |
9645219105 |
A1157NM-3D2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.57 |
5.00 |
2.50 |
4.12 |
5.62 |
2.88 |
4.82 |
17.45 |
||||
|
575 |
143JM |
9645219205 |
A1157NM-3D2P1 |
6.50 |
5.94 |
3.50 |
2.75 |
4.50/5.00 |
0.34 |
6.57 |
5.00 |
2.50 |
4.12 |
5.62 |
2.88 |
4.82 |
16.57 |
|||||
|
5 |
1 |
230 |
184JM |
9645219110 |
A1157NM-5D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.51 |
4.82 |
18.82 |
|||
|
3 |
230/460 |
182JM |
9645219115 |
A1157NM-5D2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
18.82 |
||||
|
575 |
182JM |
9645219215 |
A1157NM-5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
17.44 |
|||||
|
3 |
208-230/460 |
184JM |
9645219125 |
A1157NM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.88 |
3.63 |
4.82 |
22.82 |
||||
|
575 |
143JM |
9645219205 |
A1157NM-3D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
5.85 |
3.50 |
4.82 |
16.57 |
|||||
|
TEFC |
3 |
1 |
115/230 |
182JM |
9645218100 |
A1157NM-3T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.44 |
6.57 |
5.00 |
2.50 |
4.12 |
6.87 |
3.50 |
4.82 |
24.63 |
||
|
3 |
230/460 |
145JM |
9645218105 |
A1157NM-3T2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.38 |
6.57 |
5.00 |
2.50 |
4.12 |
5.74 |
2.88 |
4.82 |
18.61 |
||||
|
575 |
145JM |
9645218205 |
A1157NM-3T2P5 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.38 |
6.57 |
5.00 |
2.50 |
4.12 |
5.74 |
2.88 |
4.82 |
18.61 |
|||||
|
5 |
1 |
230 |
184JM |
9645218110 |
A1157NM-5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
6.57 |
5.00 |
2.50 |
4.12 |
6.87 |
3.50 |
4.82 |
21.87 |
|||
|
3 |
230/460 |
184JM |
9645218115 |
A1157NM-5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
20.38 |
||||
|
575 |
184JM |
9645218215 |
A1157NM-5T2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
20.38 |
|||||
|
3 |
230-460 |
184JM |
9645218125 |
A1157NM-7.5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.87 |
3.50 |
4.82 |
21.88 |
||||
|
575 |
184JM |
9645218225 |
A1157NM-7.5T2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.87 |
3.50 |
4.82 |
21.88 |
|||||
|
A1157 |
1800 |
TEFC |
3 |
1 |
230/460 |
143JM |
9645218325 |
AL1157NM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.57 |
5.00 |
2.50 |
4.12 |
5.73 |
2.88 |
4.82 |
17.75 |
DIMENSIONS
10
1
230
215JM
9646219120
A1526NM-10D2P1
9.50
8.00
5.25
4.25
5.50/7.00
0.41
6.75
5.38
2.69
3.81
7.93
4.50
4.69
21.81
10
1
230
215JM
9646218120
A1526NM-10T2P1
9.50
8.00
5.25
4.25
4.50/5.50
0.41
6.75
5.38
2.69
3.81
8.78
4.50
4.69
19.15
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1526 |
3600 |
ODP |
5 |
1 |
230 |
184JM |
9646219100 |
A1526NM-5D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.38 |
2.69 |
3.81 |
6.75 |
3.51 |
4.69 |
19.00 |
|
3 |
230/460 |
182JM |
9646219105 |
A1526NM-5D2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.38 |
2.69 |
3.81 |
6.74 |
3.50 |
4.69 |
19.00 |
||||
|
575 |
182JM |
9646219205 |
A1526NM-5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.38 |
2.69 |
3.81 |
6.74 |
3.50 |
4.69 |
17.62 |
|||||
|
7.5 |
1 |
230 |
213JM |
9646219110 |
A1526NM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
6.75 |
5.38 |
2.69 |
3.81 |
7.93 |
4.50 |
4.69 |
18.01 |
|||
|
3 |
208-230/460 |
184JM |
9646218115 |
A1526NM-7.5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.75 |
5.38 |
2.69 |
3.81 |
6.88 |
3.63 |
4.69 |
20.56 |
||||
|
575 |
184JM |
9646219215 |
A1526NM-7.5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
5.85 |
3.50 |
4.69 |
19.00 |
|||||
|
3 |
208-230/460 |
213JM |
9646219125 |
A1526NM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
6.75 |
5.38 |
2.69 |
3.81 |
7.93 |
4.50 |
4.69 |
20.69 |
||||
|
575 |
213JM |
9646219225 |
A1526NM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
6.75 |
5.38 |
2.69 |
3.81 |
7.93 |
4.50 |
4.69 |
20.69 |
|||||
|
TEFC |
5 |
1 |
230 |
184JM |
9646218100 |
A1526NM-5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
6.75 |
5.38 |
2.69 |
3.81 |
6.87 |
3.50 |
4.69 |
22.05 |
||
|
3 |
230/460 |
184JM |
9646218105 |
A1526NM-5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.75 |
5.38 |
2.69 |
3.81 |
6.87 |
3.50 |
4.69 |
20.56 |
||||
|
575 |
184JM |
9646218205 |
A1526NM-5T2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.75 |
5.38 |
2.69 |
3.81 |
6.87 |
3.50 |
4.69 |
20.56 |
|||||
|
7.5 |
1 |
230 |
213JM |
9646218110 |
A1526NM-7.5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
6.57 |
5.00 |
2.50 |
4.12 |
6.87 |
3.50 |
4.82 |
21.87 |
|||
|
3 |
230/460 |
184JM |
9645218115 |
A1157NM-5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
20.38 |
||||
|
208-230/460 |
213JM |
9646218116 |
A1526NM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
6.75 |
5.38 |
2.69 |
3.81 |
7.93 |
4.50 |
4.69 |
22.56 |
|||||
|
575 |
213JM |
9646218215 |
A1526NM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
22.67 |
|||||
|
3 |
230-460 |
215JM |
9646218125 |
A1526NM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.75 |
5.38 |
2.69 |
3.81 |
8.04 |
4.50 |
4.69 |
22.26 |
||||
|
575 |
215JM |
9646218225 |
A1526NM-10T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.75 |
5.38 |
2.69 |
3.81 |
8.04 |
4.50 |
4.69 |
22.26 |
|||||
|
A1526 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9646218315 |
AL1526NM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.57 |
5.38 |
2.69 |
3.81 |
5.73 |
2.88 |
4.69 |
17.93 |
|
1.5 |
230/460 |
145JM |
9646218325 |
AL1526NM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.75 |
5.38 |
2.69 |
3.81 |
5.73 |
2.88 |
4.69 |
17.93 |
DIMENSIONS
10
1
230
215JM
9647219130
A2256NM-10D2P1
9.50
8.00
5.25
4.25
5.50/7.00
0.41
6.88
5.38
3.07
4.12
7.93
4.50
4.72
21.94
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2256 |
3600 |
ODP |
3 |
1 |
115/208-230 |
182JM |
9647219100 |
A2256NM-3D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
6.75 |
3.50 |
4.72 |
19.13 |
|
3 |
230/460 |
145JM |
9647219105 |
A2256NM-3D2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.88 |
5.38 |
3.07 |
4.12 |
5.62 |
2.88 |
4.72 |
17.16 |
||||
|
575 |
143JM |
9647219205 |
A2256NM-3D2P5 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.88 |
5.38 |
3.07 |
4.12 |
5.61 |
2.88 |
4.72 |
16.88 |
|||||
|
5 |
1 |
230 |
184JM |
9647219110 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
6.75 |
3.51 |
4.72 |
19.13 |
||||
|
3 |
230/460 |
182JM |
9647219115 |
A2256NM-5D2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
6.75 |
3.50 |
4.72 |
19.13 |
||||
|
575 |
182JM |
9647219215 |
A2256NM-5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
6.74 |
3.50 |
4.73 |
17.75 |
|||||
|
7.5 |
1 |
230 |
213JM |
9647219120 |
A2256NM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
6.88 |
5.38 |
3.07 |
4.12 |
7.93 |
4.50 |
4.72 |
20.82 |
|||
|
3 |
208-230/460 |
184JM |
9647219125 |
A2256NM-7.5D2P3 |
8.75 |
6.5 |
4.5 |
3.75 |
5.50 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
6.88 |
3.63 |
4..72 |
13.13 |
||||
|
575 |
184JM |
9647219225 |
A2256NM-7.5D2P5 |
8.63 |
8.00 |
6.5 |
4.5 |
4.50/5.50 |
0.41 |
6.88 |
3.07 |
4.12 |
5.85 |
3.50 |
4.72 |
19.13 |
20.69 |
|||||
|
3 |
208-230/460 |
213JM |
9647219135 |
A2256NM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
6.88 |
5.38 |
3.07 |
4.12 |
7.92 |
4.25 |
4.72 |
20.82 |
||||
|
575 |
213JM |
9647219235 |
A2256NM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
6.88 |
5.38 |
3.007 |
4.12 |
7.93 |
4.25 |
4.72 |
20.82 |
|||||
|
15 |
3 |
230/460 |
215JM |
9647219140 |
A2256NM-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
6.88 |
5.38 |
3.07 |
4.12 |
7.92 |
4.25 |
4.72 |
20.82 |
|||
|
575 |
215JM |
9647219240 |
A2256NM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
6.88 |
5.38 |
3.007 |
4.12 |
7.93 |
4.25 |
4.72 |
20.82 |
|||||
|
TEFC |
3 |
1 |
115/230 |
182JM |
9647218100 |
A2256NM-3T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.44 |
6.88 |
5.38 |
3.07 |
4.12 |
6.87 |
3.50 |
4.72 |
24.94 |
||
|
3 |
230/460 |
145JM |
9647218105 |
A2256NM-3T2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.38 |
6.88 |
5.38 |
3.07 |
4.12 |
5.74 |
2.88 |
4.72 |
18.92 |
||||
|
575 |
145JM |
9647218205 |
A2256NM-3T2P5 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.38 |
6.88 |
5.38 |
3.07 |
4.12 |
5.74 |
2.88 |
4.72 |
18.92 |
|||||
|
5 |
1 |
230 |
184JM |
9647218110 |
A2256NM-5T2P1 |
8.63 |
6.5 |
4.5 |
3.75 |
4.50/5.50 |
0.45 |
6.57 |
5.00 |
2.50 |
4.12 |
6.87 |
3.50 |
4.82 |
22.18 |
|||
|
3 |
230/460 |
184JM |
9647218115 |
A2256NM-5T2P3 |
8.63 |
6.5 |
4.5 |
3.75 |
4.50/5.50 |
0.41 |
6.57 |
5.00 |
2.50 |
4.12 |
6.75 |
3.50 |
4.82 |
20.69 |
||||
|
575 |
184JM |
9647218215 |
A2256NM-5T2P5 |
8.63 |
6.5 |
4.5 |
3.75 |
4.50/5.50 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
6.87 |
3.50 |
4.72 |
20.69 |
|||||
|
7.5 |
1 |
230 |
213JM |
9647218120 |
A2256NM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.05 |
4.50 |
4.72 |
18.14 |
|||
|
3 |
230-460 |
184JM |
9647218125 |
A2256NM-7.5T2P3 |
8.63 |
6.5 |
4.5 |
3.75 |
4.50/5.50 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
6.87 |
3.50 |
4.72 |
22.19 |
||||
|
208-230/460 |
213JM |
9647218126 |
A2256NM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.04 |
4.50 |
4.72 |
22.39 |
|||||
|
575 |
213JM |
9647218225 |
A2256NM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.58 |
3.50 |
4.72 |
22.8 |
|||||
|
10 |
1 |
230 |
215JM |
9647218130 |
A2256NM-10TSP1 |
9.50 |
8.00 |
5.25 |
4.25 |
4.00/5.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.78 |
4.50 |
4.72 |
19.28 |
|||
|
3 |
230-460 |
215JM |
9647218135 |
A2256NM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.04 |
4.50 |
4.72 |
22.39 |
||||
|
575 |
215JM |
9647218235 |
A1526NM-10T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.04 |
4.50 |
4.72 |
22.39 |
|||||
|
15 |
3 |
208-230/460 |
215JM |
9647218140 |
A2256NM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.04 |
4.50 |
4.72 |
25.02 |
|||
|
575 |
215JM |
9647218240 |
A2256NM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.88 |
5.38 |
3.07 |
4.12 |
8.04 |
4.50 |
4.72 |
25.01 |
|
AL2256 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9647218325 |
AL2256NM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.88 |
5.38 |
3.07 |
4.12 |
5.73 |
2.88 |
4.72 |
18.06 |
|
1.5 |
145JM |
9647218335 |
AL2256NM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.88 |
5.38 |
3.07 |
4.12 |
5.73 |
2.88 |
4.72 |
18.06 |
|||||
|
2 |
145JM |
9647218340 |
AL2256NM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
6.88 |
5.38 |
3.07 |
4.12 |
5.73 |
2.88 |
4.72 |
18.06 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A238 |
3600 |
ODP |
7.5 |
1 |
230 |
213JM |
9650219100 |
A238NM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.12 |
7.75 |
3.75 |
4.75 |
7.93 |
4.50 |
5.38 |
22.06 |
|
3 |
208-230/460 |
184JM |
9650219105 |
A238NM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
6.88 |
3.63 |
5.38 |
24.37 |
||||
|
575 |
184JM |
9650219205 |
A238NM-7.5D2P5 |
8.63 |
6.50 |
4.5 |
3.75 |
4.50/5.50 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
5.85 |
3.5 |
5.38 |
20.37 |
|||||
|
10 |
1 |
230 |
184JM |
9647219110 |
A238NM-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7375 |
3.75 |
4.75 |
7.93 |
4.50 |
5.38 |
23.18 |
|||
|
3 |
208-230/460 |
213JM |
9650219115 |
A238NM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.12 |
7.75 |
3.75 |
4.75 |
7.92 |
4.25 |
5.38 |
22.06 |
||||
|
575 |
213JM |
9650219215 |
A238NM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.12 |
7.75 |
3.75 |
4.75 |
7.93 |
4.25 |
5.38 |
22.06 |
|||||
|
15 |
3 |
230/460 |
215JM |
9650219120 |
A238NM-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.12 |
7.75 |
3.75 |
4.75 |
7.93 |
4.25 |
5.38 |
22.06 |
|||
|
575 |
215JM |
9650219220 |
A238NM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.12 |
7.75 |
3.75 |
4.75 |
7.92 |
4.25 |
5.38 |
22.06 |
|||||
|
20 |
3 |
230/460 |
254JM |
9650219125 |
A238NM-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
9.49 |
4.75 |
5.38 |
26.99 |
|||
|
575 |
254JM |
9650219225 |
A238NM-20D2P5 |
11.25 |
9.50 |
6.25 |
5.00 |
8.25 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
9.72 |
4.75 |
5.38 |
24.93 |
|||||
|
TEFC |
7.5 |
1 |
230 |
213JM |
9650218100 |
A238NM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.05 |
4.50 |
5.38 |
19.38 |
||
|
3 |
208-230/460 |
213JM |
9650218105 |
A238NM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.05 |
4.50 |
5.38 |
23.63 |
||||
|
575 |
213JM |
9650218205 |
A238NM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.58 |
3.50 |
5.38 |
24.04 |
|||||
|
10 |
1 |
230 |
215JM |
9650218110 |
A238NM-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
4.00/5.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
20.52 |
|||
|
3 |
230-460 |
215JM |
9650218115 |
A238NM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
23.63 |
||||
|
575 |
215JM |
9650218220 |
A238NM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
23.63 |
|||||
|
15 |
3 |
208-230/460 |
215JM |
9650218120 |
A238NM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
26.26 |
|||
|
575 |
215JM |
9650218220 |
A238NM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
26.25 |
|||||
|
20 |
3 |
230/460 |
256JM |
9650218125 |
A238NM-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
10.04 |
4.78 |
5.38 |
29.10 |
|||
|
575 |
215JM |
9647218240 |
A2256NM-15T2P5 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
10.04 |
4.78 |
5.38 |
30.93 |
|
AL238 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9650218305 |
AL238NM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
19.3 |
|
1.5 |
145JM |
9650218315 |
AL238NM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
19.3 |
|||||
|
2 |
145JM |
9650218320 |
AL238NM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
19.3 |
|||||
|
3 |
1 |
208-230 |
145JM |
9650218355 |
AL238NM-3T4P1 |
8.38 |
6.38 |
4.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
7.31 |
4.25 |
24.15 |
18.06 |
|||
|
3 |
230/460 |
145JM |
9650218325 |
AL238NM-3T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
6.87 |
3.50 |
5.38 |
21.93 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A238 |
3600 |
ODP |
7.5 |
1 |
230 |
213JM |
9650219100 |
A238NM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.12 |
7.75 |
3.75 |
4.75 |
7.93 |
4.50 |
5.38 |
22.06 |
|
3 |
208-230/460 |
184JM |
9650219105 |
A238NM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
6.88 |
3.63 |
5.38 |
24.37 |
||||
|
575 |
184JM |
9650219205 |
A238NM-7.5D2P5 |
8.63 |
6.50 |
4.5 |
3.75 |
4.50/5.50 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
5.85 |
3.5 |
5.38 |
20.37 |
|||||
|
10 |
1 |
230 |
184JM |
9647219110 |
A238NM-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7375 |
3.75 |
4.75 |
7.93 |
4.50 |
5.38 |
23.18 |
|||
|
3 |
208-230/460 |
213JM |
9650219115 |
A238NM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.12 |
7.75 |
3.75 |
4.75 |
7.92 |
4.25 |
5.38 |
22.06 |
||||
|
575 |
213JM |
9650219215 |
A238NM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.12 |
7.75 |
3.75 |
4.75 |
7.93 |
4.25 |
5.38 |
22.06 |
|||||
|
15 |
3 |
230/460 |
215JM |
9650219120 |
A238NM-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.12 |
7.75 |
3.75 |
4.75 |
7.93 |
4.25 |
5.38 |
22.06 |
|||
|
575 |
215JM |
9650219220 |
A238NM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.12 |
7.75 |
3.75 |
4.75 |
7.92 |
4.25 |
5.38 |
22.06 |
|||||
|
20 |
3 |
230/460 |
254JM |
9650219125 |
A238NM-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
9.49 |
4.75 |
5.38 |
26.99 |
|||
|
575 |
254JM |
9650219225 |
A238NM-20D2P5 |
11.25 |
9.50 |
6.25 |
5.00 |
8.25 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
9.72 |
4.75 |
5.38 |
24.93 |
|||||
|
TEFC |
7.5 |
1 |
230 |
213JM |
9650218100 |
A238NM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.05 |
4.50 |
5.38 |
19.38 |
||
|
3 |
208-230/460 |
213JM |
9650218105 |
A238NM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.05 |
4.50 |
5.38 |
23.63 |
||||
|
575 |
213JM |
9650218205 |
A238NM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.58 |
3.50 |
5.38 |
24.04 |
|||||
|
10 |
1 |
230 |
215JM |
9650218110 |
A238NM-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
4.00/5.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
20.52 |
|||
|
3 |
230-460 |
215JM |
9650218115 |
A238NM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
23.63 |
||||
|
575 |
215JM |
9650218220 |
A238NM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
23.63 |
|||||
|
15 |
3 |
208-230/460 |
215JM |
9650218120 |
A238NM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
26.26 |
|||
|
575 |
215JM |
9650218220 |
A238NM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
8.78 |
4.50 |
5.38 |
26.25 |
|||||
|
20 |
3 |
230/460 |
256JM |
9650218125 |
A238NM-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
10.04 |
4.78 |
5.38 |
29.10 |
|||
|
575 |
215JM |
9647218240 |
A2256NM-15T2P5 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
9.05 |
7.75 |
3.75 |
4.75 |
10.04 |
4.78 |
5.38 |
30.93 |
|
AL238 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9650218305 |
AL238NM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
19.3 |
|
1.5 |
145JM |
9650218315 |
AL238NM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
19.3 |
|||||
|
2 |
145JM |
9650218320 |
AL238NM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
19.3 |
|||||
|
3 |
1 |
208-230 |
145JM |
9650218355 |
AL238NM-3T4P1 |
8.38 |
6.38 |
4.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
7.31 |
4.25 |
24.15 |
18.06 |
|||
|
3 |
230/460 |
145JM |
9650218325 |
AL238NM-3T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50 / 5.50 |
0.41 |
8.12 |
7.75 |
3.75 |
4.75 |
6.87 |
3.50 |
5.38 |
21.93 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A238 |
3600 |
ODP |
3 |
1 |
115/208-230 |
182JM |
9653219100 |
A2536NM-3D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
6.75 |
3.50 |
5.16 |
19.63 |
|
3 |
230/460 |
145JM |
9653219105 |
A2536NM-3D2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
7.38 |
5.88 |
3.56 |
4.25 |
5.62 |
2.88 |
5.16 |
18.16 |
||||
|
575 |
143JM |
9653219205 |
A2536NM-3D2P5 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
7.38 |
5.88 |
3.56 |
4.25 |
5.61 |
2.88 |
5.16 |
17.38 |
|||||
|
5 |
1 |
230 |
184JM |
9653219110 |
A2536NM-5D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
6.75 |
3.50 |
5.16 |
19.3 |
|||
|
3 |
230/460 |
182JM |
9653219115 |
A2536NM-5D2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
6.75 |
3.50 |
5.16 |
19.3 |
||||
|
575 |
182JM |
9653219215 |
A2536NM-5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
6.75 |
3.50 |
5.16 |
18.25 |
|||||
|
7.5 |
1 |
230 |
213JM |
9653219120 |
A2536NM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
21.32 |
|||
|
3 |
208-230/460 |
184JM |
9653219125 |
A2536NM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
6.88 |
3.63 |
5.16 |
21.32 |
||||
|
575 |
184JM |
9653219225 |
A2536NM-7.5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
5.85 |
5.16 |
19.63 |
|||||
|
10 |
1 |
230 |
213JM |
9653219130 |
A2536NM-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
22.44 |
|||
|
3 |
208-230/460 |
213JM |
9653219135 |
A2536NM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
21.32 |
||||
|
575 |
213JM |
9653219235 |
A2536NM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
21.32 |
|||||
|
15 |
3 |
230/460 |
215JM |
9653219140 |
A2536NM-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
21.32 |
|||
|
575 |
215JM |
9653219240 |
A2536NM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
21.32 |
|||||
|
TEFC |
3 |
1 |
115/230 |
182JM |
9653218100 |
A2536NM-3T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.44 |
7.38 |
5.88 |
3.56 |
4.25 |
6.87 |
3.50 |
5.16 |
25.44 |
||
|
3 |
230/460 |
145JM |
9653218105 |
A2536NM-3T2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/500 |
0.38 |
7.38 |
5.88 |
3.56 |
4.25 |
5.74 |
2.88 |
5.16 |
19.42 |
||||
|
575 |
145JM |
9653218205 |
A2536NM-3T2P5 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/500 |
0.38 |
7.38 |
5.88 |
3.56 |
4.25 |
5.74 |
2.88 |
5.16 |
19.42 |
|||||
|
5 |
1 |
230 |
184JM |
9653218110 |
A2536NM-5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
7.38 |
5.88 |
3.56 |
4.25 |
6.87 |
3.50 |
5.16 |
22.68 |
|||
|
3 |
230-460 |
184JM |
9653218115 |
A2536NM-5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
7.38 |
5.88 |
3.56 |
4.25 |
6.87 |
3.50 |
5.16 |
21.19 |
||||
|
575 |
184JM |
9653218215 |
A2536NM-5T2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
7.38 |
5.88 |
3.56 |
4.25 |
6.87 |
3.50 |
5.16 |
21.19 |
|||||
|
7.5 |
1 |
230 |
213JM |
9653218120 |
A2536NM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
8.05 |
4.50 |
5.16 |
18.64 |
|||
|
3 |
208-230/460 |
213JM |
9653218125 |
A2536NM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
22.89 |
||||
|
575 |
213JM |
9653218225 |
A2536NM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
8.58 |
3.50 |
5.16 |
23.30 |
|||||
|
10 |
1 |
230 |
215JM |
9653218130 |
A2536NM-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
4.00/5.00 |
0.41 |
7.38 |
5.88 |
3.56 |
4.25 |
7.93 |
4.50 |
5.16 |
19.78 |
|||
|
3 |
230/460 |
215JM |
9653218135 |
A2536NM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
8.04 |
4.50 |
5.16 |
22.89 |
||||
|
575 |
215JM |
9653218235 |
A2536NM-10T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
8.04 |
4.50 |
5.16 |
22.89 |
|||||
|
15 |
3 |
208-230/460 |
215JM |
9653218140 |
A2536NM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
8.04 |
4.50 |
5.16 |
25.52 |
|||
|
575 |
215JM |
9653218240 |
A2536NM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.38 |
5.88 |
3.56 |
4.25 |
8.04 |
4.50 |
5.16 |
25.51 |
|
AL2536 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9653218325 |
AL2536NM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
18.56 |
|
1.5 |
145JM |
9653218340 |
AL2536NM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
18.56 |
|||||
|
2 |
145JM |
9653218340 |
AL2536NM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.12 |
7.75 |
3.75 |
4.75 |
5.73 |
2.88 |
5.38 |
18.56 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A25410 |
3600 |
ODP |
20 |
3 |
230/460 |
254JM |
9654219105 |
A25410NM-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.90 |
8.00 |
.66 |
6.00 |
9.49 |
4.75 |
7.00 |
27.07 |
|
575 |
254JM |
9654219205 |
A25410NM-20D2P5 |
11.25 |
9.50 |
6.25 |
5.00 |
8.25 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
9.72 |
4.75 |
7.00 |
25.01 |
|||||
|
25 |
3 |
230 |
256JM |
9654219110 |
A25410NM-25D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.90 |
8.00 |
3.66 |
4.75 |
6.00 |
9.49 |
7.00 |
27.07 |
|||
|
575 |
256JM |
9654219210 |
A25410NM-25D2P5 |
11.42 |
11.42 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
9.45 |
4.75 |
7.00 |
25.85 |
|||||
|
30 |
3 |
230/460 |
284JM |
9654219115 |
A25410NM-30D2P3 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
11.37 |
4.75 |
7.00 |
30.41 |
|||
|
575 |
284JM |
9654219215 |
A25410NM-30D2P5 |
13.78 |
11.57 |
7.00 |
5.50 |
9.50 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
10.87 |
5.00 |
7.00 |
30.99 |
|||||
|
40 |
3 |
208-230/460 |
286JM |
9654219120 |
A25410NM-40D2P3 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
11.75 |
4.75 |
7.00 |
29.60 |
|||
|
575 |
286JM |
9654219220 |
A25410NM-40D2P5 |
13.78 |
12.53 |
7.00 |
5.50 |
9.50 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
11.93 |
5.00 |
7.00 |
29.38 |
|||||
|
TEFC |
20 |
3 |
230/460 |
256JM |
9654218105 |
A25410NM-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
10.04 |
4.75 |
7.00 |
29.18 |
||
|
575 |
256JM |
9654218205 |
A25410NM-20T2P5 |
11.38 |
12.44 |
6.25 |
5.00 |
10.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
9.94 |
4.75 |
7.00 |
31.01 |
|||||
|
25 |
3 |
230/460 |
284JM |
9654218110 |
A25410NM-25T2P3 |
12.75 |
12.84 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
12.09 |
4.75 |
7.00 |
30.81 |
|||
|
575 |
256JM |
9654218210 |
A25410NM-25T2P5 |
11.38 |
12.44 |
6.25 |
5.00 |
10.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
9.94 |
4.75 |
7.00 |
30.98 |
|||||
|
30 |
3 |
230/460 |
286JM |
9654218115 |
A25410NM-30T2P3 |
12.75 |
12.84 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
13.11 |
4.75 |
7.00 |
32.49 |
|||
|
575 |
286JM |
9654218215 |
A25410NM-30T2P5 |
13.94 |
12.32 |
7.00 |
5.50 |
11.00 |
0.57 |
8.90 |
8.00 |
3.66 |
6.00 |
11.32 |
4.75 |
7.00 |
32.87 |
|||||
|
40 |
3 |
230/460 |
324JM |
9654218120 |
A25410NM-40T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
8.90 |
8.00 |
3.66 |
6.00 |
11.75 |
4.75 |
7.00 |
29.60 |
|||
|
575 |
286JM |
9654219220 |
A25410NM-40T2P5 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
8.90 |
8.00 |
3.66 |
6.00 |
11.75 |
4.75 |
7.00 |
29.60 |
3
230/460
182JM
9654218305
AL25410NM-3T4P3B
8.63
6.38
4.50
3.75
4.50 / 5.50
0.41
7.89
8.00
3.66
6.00
6.87
3.50
7.00
21.70
5
230/460
184JM
9654218315
AL25410NM-5T4P3B
8.63
6.50
4.50
3.75
4.50/5.50
0.41
7.89
8.00
3.66
6.00
6.87
3.50
7.00
23.20
|
AL25410 |
1800 |
TEFC |
3 |
1 |
115/230 |
184JM |
9654218330 |
AL25410NM-3T4P1B |
8.38 |
6.38 |
4.50 |
3.75 |
5.50 |
0.41 |
7.89 |
8.00 |
3.66 |
6.00 |
7.31 |
4.25 |
7.00 |
23.92 |
|
184JM |
9654218335 |
AL25410NM-3T4P1 |
8.38 |
6.38 |
4.50 |
3.75 |
5.50 |
0.41 |
7.89 |
8.00 |
3.66 |
6.00 |
7.31 |
4.25 |
7.00 |
23.92 |
||||||
|
182JM |
9654218310 |
AL25410NM-3T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50 / 5.50 |
0.41 |
7.89 |
8.00 |
3.66 |
6.00 |
6.87 |
3.50 |
7.00 |
21.70 |
||||||
|
5 |
1 |
230 |
215JM |
9654218340 |
AL25410NM-5T4P1B |
9.50 |
8.88 |
5.25 |
4.75 |
7.00 |
0.44 |
7.90 |
8.00 |
3.66 |
6.00 |
9.44 |
4.50 |
7.00 |
26.17 |
|||
|
215JM |
9654218345 |
AL25410NM-5T4P1 |
9.50 |
8.88 |
5.25 |
4.75 |
7.00 |
0.44 |
7.90 |
8.00 |
3.66 |
6.00 |
9.44 |
4.50 |
7.00 |
26.17 |
||||||
|
184JM |
9654218320 |
AL25410NM-5T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.89 |
8.00 |
3.66 |
6.00 |
6.87 |
3.50 |
7.00 |
23.20 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A346 |
3600 |
ODP |
5 |
1 |
230 |
184JM |
9648219130 |
A346NM-5D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
6.75 |
3.51 |
5.43 |
19.69 |
|
3 |
230/460 |
182JM |
9648219135 |
A346NM-5D2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
6.74 |
3.50 |
5.43 |
19.69 |
||||
|
7.5 |
1 |
230 |
213JM |
9648219100 |
A346NM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.44 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
21.38 |
|||
|
3 |
208-230/460 |
184JM |
9648219105 |
A346NM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
6.88 |
3.63 |
5.43 |
23.69 |
||||
|
575 |
184JM |
9648219205 |
A346NM-7.5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
5.85 |
3.63 |
5.43 |
19.69 |
|||||
|
10 |
1 |
230 |
215JM |
9648219110 |
A346NM-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.44 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
22.50 |
|||
|
3 |
208-230/460 |
213JM |
9648219115 |
A346NM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
7.92 |
4.25 |
5.43 |
21.38 |
||||
|
575 |
213JM |
9648219215 |
A346NM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.44 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
21.38 |
|||||
|
15 |
3 |
230/460 |
215JM |
9648219120 |
A346NM-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
7.44 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
21.38 |
|||
|
575 |
215JM |
9648219220 |
A346NM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
7.44 |
7.00 |
3.50 |
4.56 |
7.93 |
3.50 |
5.43 |
21.38 |
|||||
|
20 |
3 |
230/460 |
254JM |
9648219125 |
A346NM-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.56 |
7.00 |
3.50 |
4.56 |
9.49 |
4.75 |
5.43 |
26.50 |
|||
|
575 |
215JM |
9648219225 |
A346NM-20D2P5 |
11.25 |
9.50 |
6.25 |
5.00 |
8.25 |
0.53 |
8.56 |
7.00 |
3.50 |
4.56 |
9.72 |
4.75 |
5.43 |
24.44 |
|||||
|
TEFC |
5 |
1 |
230 |
184JM |
9648218130 |
A346NM-5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
7.44 |
7.00 |
3.50 |
4.56 |
6.87 |
3.50 |
5.43 |
22.74 |
||
|
3 |
230 |
184JM |
9648218130 |
A346NM-5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
7.44 |
7.00 |
3.50 |
4.56 |
6.87 |
3.50 |
5.43 |
22.74 |
||||
|
230 |
184JM |
9648218130 |
A346NM-5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.45 |
7.44 |
7.00 |
3.50 |
4.56 |
6.87 |
3.50 |
5.43 |
22.74 |
|||||
|
7.5 |
1 |
230 |
213JM |
9648218100 |
A346NM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
8.05 |
4.50 |
5.43 |
17.76 |
|||
|
3 |
230/460 |
184JM |
9648218105 |
A346NM-7.5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
6.74 |
3.50 |
5.43 |
22.75 |
||||
|
208-230/460 |
184JM |
9648218135 |
A346NM-5T2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
6.74 |
3.50 |
5.43 |
21.25 |
|||||
|
3 |
575 |
213JM |
9648218205 |
A346NM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
8.58 |
3.50 |
5.43 |
23.36 |
||||
|
10 |
1 |
215JM |
9648218110 |
A346NM-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
4.00/5.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
8.78 |
4.50 |
5.43 |
19.84 |
||||
|
3 |
230/460 |
215JM |
9648218115 |
A346NM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
8.04 |
4.50 |
5.43 |
22.95 |
||||
|
575 |
215JM |
9648218215 |
A346NM-10T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
8.04 |
4.50 |
5.43 |
22.95 |
|||||
|
15 |
3 |
208-230/460 |
215JM |
9648218120 |
A346NM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
8.04 |
4.50 |
5.43 |
22.58 |
|||
|
575 |
215JM |
9648218220 |
A346NM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
8.04 |
4.50 |
5.43 |
22.57 |
|||||
|
20 |
3 |
230/460 |
256JM |
9648218125 |
A346NM-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.56 |
7.00 |
3.50 |
4.56 |
10.04 |
4.75 |
5.43 |
28.61 |
|||
|
575 |
256JM |
9648218225 |
A346NM-20T2P5 |
11.38 |
12.44 |
6.25 |
5.00 |
10.00 |
0.53 |
8.56 |
7.00 |
3.50 |
4.56 |
9.94 |
4.25 |
5.43 |
30.44 |
|
AL346 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9648218305 |
AL346NM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
7.44 |
7.00 |
3.50 |
4.56 |
5.73 |
2.88 |
5.43 |
18.62 |
|
1.5 |
145JM |
9648218315 |
AL346NM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
7.44 |
7.00 |
3.50 |
4.56 |
5.73 |
2.88 |
5.43 |
18.62 |
|||||
|
2 |
145JM |
9648218320 |
AL346NM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
7.44 |
7.00 |
3.50 |
4.56 |
5.73 |
2.88 |
5.43 |
18.62 |
|||||
|
3 |
1 |
115/230 |
184JM |
9648218355 |
AL346NM-3T4P1 |
8.38 |
6.38 |
4.50 |
3.75 |
5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
7.31 |
4.25 |
5.43 |
23.47 |
|||
|
3 |
230/460 |
182JM |
9648218325 |
AL346NM-3T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50 / 5.50 |
0.41 |
7.44 |
7.00 |
3.50 |
4.56 |
6.87 |
4.25 |
5.43 |
21.25 |
DIMENSIONS
3
208-230/460
213JP
9648118106
A346NP-7.5T2P3
9.76
7.36
5.25
4.25
5.50
0.41
11.50
7.00
3.50
4.56
8.58
3.50
5.43
25.93
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A346 |
3600 |
ODP |
7.5 |
1 |
230 |
213JP |
9648119100 |
A346NP-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
25.44 |
|
3 |
208-230/460 |
184JP |
9648119105 |
A346NP-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
10.50 |
7.00 |
3.50 |
4.56 |
6.88 |
2.07 |
5.43 |
23.69 |
||||
|
575 |
184JP |
9648119205 |
A346NP-7.5D2P5 |
8.66 |
6.30 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
10.50 |
7.00 |
3.50 |
4.56 |
6.70 |
3.63 |
5.43 |
22.10 |
|||||
|
10 |
1 |
230 |
215JP |
9648119110 |
A346NP-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
26.56 |
|||
|
3 |
230/460 |
215JP |
9648119120 |
A346NP-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.25 |
5.43 |
26.56 |
||||
|
575 |
215JP |
9648119220 |
A346NP-15D2P5 |
9.45 |
7.95 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.50 |
5.43 |
25.35 |
|||||
|
15 |
3 |
230/460 |
215JP |
9648119120 |
A346NP-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.25 |
5.43 |
25.45 |
|||
|
575 |
215JP |
9648119220 |
A346NP-15D2P5 |
9.45 |
7.95 |
5.25 |
4.25 |
5.50/7.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.75 |
5.43 |
26.14 |
|||||
|
20 |
3 |
230/460 |
254JP |
9648119125 |
A346NP-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
9.49 |
4.75 |
5.43 |
26.57 |
|||
|
575 |
254JP |
9648119225 |
A346NP-20D2P5 |
12.17 |
12.00 |
6.25 |
5.00 |
8.25 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.25 |
5.43 |
30.70 |
|||||
|
TEFC |
7.5 |
1 |
208-230 |
213JP |
9648118100 |
A346NP-7.5T2P1 |
9.76 |
7.36 |
5.25 |
4.25 |
5.50 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.07 |
3.50 |
5.43 |
26.16 |
||
|
575 |
213JP |
9648118205 |
A346NP-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
3.50 |
5.43 |
27.43 |
|||||
|
10 |
1 |
230 |
215JP |
9648118110 |
A346NP-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.76 |
4.50 |
5.43 |
20.03 |
|||
|
3 |
208-230/460 |
215JP |
9648118115 |
A346NP-10T2P3 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
4.50 |
5.43 |
27.43 |
||||
|
575 |
215JP |
9648118215 |
A346NP-10T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
4.50 |
5.43 |
27.43 |
|||||
|
15 |
3 |
208-230/460 |
215JP |
9648118120 |
A346NP-15T2P3 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
4.50 |
5.43 |
27.64 |
|||
|
575 |
254JP |
9648118220 |
A346NP-15T2P5 |
12.13 |
11.73 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
10.48 |
4.28 |
5.43 |
32.12 |
|||||
|
20 |
3 |
230/460 |
256JP |
9648118125 |
A346NP-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
10.04 |
4.75 |
5.43 |
31.54 |
|||
|
575 |
256JP |
9648118225 |
A346NP-20T2P5 |
12.12 |
11.73 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
10.48 |
4.25 |
5.43 |
21.12 |
40
3
230/460
286JP
9649119105
A349NP-40D2P3
12.25
12.24
7.00
5.50
9.50/11.00
0.53
12.07
7.00
3.63
5.88
11.93
5.00
6.97
33.39
75
3
460
364JP
9649119120
A349NP-75D2P3
15.75
14.00
9.00
7.00
11.25/12.25
0.66
12.07
7.00
3.63
5.88
13.20
5.50
6.97
34.39
|
A349 |
3600 |
ODP |
30 |
3 |
230/460 |
284JP |
9649119100 |
A349NP-30D2P3 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
11.37 |
4.75 |
6.97 |
33.39 |
|
575 |
284JP |
9649119200 |
A349NP-30D2P5 |
13.78 |
11.57 |
7.00 |
5.50 |
9.50 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
11.93 |
5.00 |
6.97 |
31.09 |
|||||
|
575 |
286JP |
9649119205 |
A349NP-40D2P5 |
13.78 |
13.07 |
7.00 |
5.50 |
11.00 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
11.93 |
5.00 |
6.97 |
32.58 |
|||||
|
50 |
3 |
230/460 |
324JP |
9649119110 |
A349NP-50D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
13.20 |
5.25 |
6.97 |
33.76 |
|||
|
575 |
324JP |
9649119210 |
A349NP-50D2P5 |
15.16 |
13.07 |
8.00 |
6.25 |
10.50 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
11.50 |
5.50 |
6.97 |
33.26 |
|||||
|
60 |
3 |
230/460 |
326JP |
9649119115 |
A349NP-60D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
11.50 |
5.50 |
6.97 |
33.76 |
|||
|
575 |
326JP |
9649119215 |
A349NP-60D2P5 |
15.16 |
14.57 |
8.00 |
6.25 |
12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
11.50 |
5.50 |
6.97 |
34.76 |
|||||
|
575 |
365JP |
9649119220 |
A349NP-75D2P5 |
17.17 |
15.4 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
16.38 |
5.88 |
6.97 |
35.97 |
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A349 |
3600 |
ODP |
30 |
3 |
230/460 |
284JM |
9649219100 |
A349NM-30D2P3 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
9.13 |
7.00 |
3.63 |
5.88 |
11.37 |
4.75 |
6.97 |
30.44 |
|
575 |
284JM |
9649219200 |
A349NM-30D2P5 |
13.78 |
11.57 |
7.00 |
5.50 |
9.50 |
0.53 |
9.13 |
7.00 |
3.63 |
5.88 |
10.87 |
5.00 |
6.97 |
31.02 |
|||||
|
40 |
3 |
208-230/460 |
286JM |
9649219105 |
A349NM-40D2P3 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
9.13 |
7.00 |
3.63 |
5.88 |
11.75 |
4.75 |
6.97 |
29.63 |
|||
|
575 |
286JM |
9649219205 |
A349NM-40D2P5 |
13.78 |
12.53 |
7.00 |
5.50 |
11.00 |
0.53 |
9.13 |
7.00 |
3.63 |
5.88 |
11.93 |
5.00 |
6.97 |
29.41 |
|||||
|
50 |
3 |
230/460 |
324JM |
9649219110 |
A349NM-50D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
13.20 |
5.25 |
6.97 |
30.82 |
|||
|
575 |
324JM |
9649219210 |
A349NM-50D2P5 |
15.16 |
13.07 |
8.00 |
6.25 |
10.50 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
11.5 |
5.50 |
6.97 |
30.31 |
|||||
|
60 |
3 |
230/460 |
326JM |
9649219115 |
A349NM-60D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
13.20 |
5.25 |
6.97 |
30.82 |
|||
|
575 |
326JM |
9649219215 |
A349NM-60D2P5 |
15.16 |
15.57 |
8.00 |
6.25 |
12.00 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
11.5 |
5.50 |
6.97 |
31.81 |
|||||
|
75 |
3 |
208-230/460 |
364JM |
9649219120 |
A349NM-75D2P3 |
17.17 |
15.40 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
16.38 |
5.88 |
6.97 |
33.02 |
|||
|
575 |
364JM |
9649219220 |
A349NM-75D2P5 |
17.17 |
15.40 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
16.38 |
5.88 |
6.97 |
33.02 |
|||||
|
TEFC |
30 |
3 |
230/460 |
286JM |
9649218100 |
A349NM-30T2P3 |
12.75 |
12.84 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
9.13 |
7.00 |
3.63 |
5.88 |
13.11 |
4.75 |
6.97 |
32.52 |
||
|
575 |
2846M |
9649218200 |
A349NM-30T2P5 |
13.94 |
12.32 |
7.00 |
5.50 |
11.00 |
0.57 |
9.13 |
7.00 |
3.63 |
5.88 |
11.32 |
4.75 |
6.97 |
32.90 |
|||||
|
40 |
3 |
230/460 |
324JM |
9649218105 |
A349NM-40T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
13.74 |
5.25 |
6.97 |
34.52 |
|||
|
575 |
286JM |
9649218205 |
A349NM-40T2P5 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
9.13 |
7.00 |
3.63 |
5.88 |
11.75 |
4.75 |
6.97 |
29.63 |
|||||
|
50 |
3 |
230/460 |
326JM |
9649218110 |
A349NM-50T2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
14.61 |
5.25 |
6.97 |
34.53 |
|||
|
575 |
326JM |
9649218210 |
A349NM-50T2P5 |
15.67 |
14.21 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
13.54 |
5.25 |
6.97 |
35.32 |
|||||
|
60 |
3 |
230/460 |
326JM |
9649218115 |
A349NM-60T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
14.61 |
5.25 |
6.97 |
34.53 |
|||
|
575 |
364JM |
9649218215 |
A349NM-60T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
16.02 |
5.88 |
6.97 |
36.91 |
|||||
|
75 |
3 |
208-230/460 |
365JM |
9649218120 |
A349NM-75T2P3 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
16.02 |
5.88 |
6.97 |
36.91 |
|||
|
575 |
365JM |
9649218220 |
A349NM-75T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
9.13 |
7.00 |
3.63 |
5.88 |
16.02 |
5.88 |
6.97 |
36.91 |
|
AL349 |
1800 |
TEFC |
5 |
1 |
230 |
215JM |
9649218325 |
AL349NM-5T4P1B |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
11.50 |
7.00 |
3.63 |
5.88 |
9.44 |
4.50 |
6.97 |
25.80 |
|
215JM |
9649218330 |
AL349NM-5T4P1B |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
11.50 |
7.00 |
3.63 |
5.88 |
9.44 |
4.50 |
6.97 |
25.80 |
||||||
|
3 |
230/460 |
184JM |
9649218300 |
AL349NM-5T4P3B |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.73 |
7.00 |
3.63 |
5.88 |
6.87 |
3.50 |
6.97 |
23.04 |
||||
|
184JM |
9649218305 |
AL349NM-5T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.73 |
7.00 |
3.63 |
5.88 |
6.87 |
3.50 |
6.97 |
23.04 |
||||||
|
3 |
575 |
184JM |
9649218300 |
AL349NM-5T4P3B |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.73 |
7.00 |
3.63 |
5.88 |
6.87 |
3.50 |
6.97 |
23.04 |
||||
|
184JM |
9649218305 |
AL349NM-5T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.73 |
7.00 |
3.63 |
5.88 |
6.87 |
3.50 |
6.97 |
23.04 |
||||||
|
7.5 |
1 |
230 |
215JM |
9649218335 |
AL349NM-7.5T4P1B |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
11.50 |
7.00 |
3.63 |
5.88 |
9.44 |
5.13 |
6.97 |
25.80 |
|||
|
215JM |
9649218315 |
AL349NM-7.5T4P3 |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
11.50 |
7.00 |
3.63 |
5.88 |
9.44 |
5.13 |
6.97 |
25.80 |
||||||
|
3 |
230/460 |
213JM |
9649218310 |
AL349NM-7.5T4P3B |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.63 |
5.88 |
8.04 |
4.50 |
6.97 |
24.37 |
||||
|
213JM |
9649218315 |
AL349NM-7.5T4P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.63 |
5.88 |
8.04 |
4.50 |
6.97 |
24.37 |
||||||
|
3 |
575 |
213JM |
9649218310 |
AL349NM-7.5T4P3B |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.63 |
5.88 |
8.04 |
4.50 |
6.97 |
24.37 |
||||
|
213JM |
9649218315 |
AL349NM-7.5T4P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.63 |
5.88 |
8.04 |
4.50 |
6.97 |
24.37 |
||||||
|
10 |
1 |
230 |
215JM |
9649218345 |
AL349NM-105T4P1 |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
7.74 |
7.00 |
3.63 |
5.88 |
9.44 |
5.13 |
6.97 |
25.80 |
|||
|
3 |
230/460 |
215JM |
9649218320 |
AL349NM-10T4P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
7.74 |
7.00 |
3.63 |
5.88 |
8.04 |
5.13 |
4.50 |
25.88 |
||||
|
3 |
575 |
215JM |
9649218420 |
AL349NM-10T4P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
7.74 |
7.00 |
3.63 |
5.88 |
8.04 |
5.13 |
4.50 |
25.88 |
DIMENSIONS
3
208-230/460
213JP
9648118106
A346NP-7.5T2P3
9.76
7.36
5.25
4.25
5.50
0.41
11.50
7.00
3.50
4.56
8.58
3.50
5.43
25.93
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A346 |
3600 |
ODP |
7.5 |
1 |
230 |
213JP |
9648119100 |
A346NP-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
25.44 |
|
3 |
208-230/460 |
184JP |
9648119105 |
A346NP-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
10.50 |
7.00 |
3.50 |
4.56 |
6.88 |
2.07 |
5.43 |
23.69 |
||||
|
575 |
184JP |
9648119205 |
A346NP-7.5D2P5 |
8.66 |
6.30 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
10.50 |
7.00 |
3.50 |
4.56 |
6.70 |
3.63 |
5.43 |
22.10 |
|||||
|
10 |
1 |
230 |
215JP |
9648119110 |
A346NP-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
7.93 |
4.50 |
5.43 |
26.56 |
|||
|
3 |
230/460 |
215JP |
9648119120 |
A346NP-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.25 |
5.43 |
26.56 |
||||
|
575 |
215JP |
9648119220 |
A346NP-15D2P5 |
9.45 |
7.95 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.50 |
5.43 |
25.35 |
|||||
|
15 |
3 |
230/460 |
215JP |
9648119120 |
A346NP-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.25 |
5.43 |
25.45 |
|||
|
575 |
215JP |
9648119220 |
A346NP-15D2P5 |
9.45 |
7.95 |
5.25 |
4.25 |
5.50/7.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.75 |
5.43 |
26.14 |
|||||
|
20 |
3 |
230/460 |
254JP |
9648119125 |
A346NP-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
9.49 |
4.75 |
5.43 |
26.57 |
|||
|
575 |
254JP |
9648119225 |
A346NP-20D2P5 |
12.17 |
12.00 |
6.25 |
5.00 |
8.25 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
7.97 |
4.25 |
5.43 |
30.70 |
|||||
|
TEFC |
7.5 |
1 |
208-230 |
213JP |
9648118100 |
A346NP-7.5T2P1 |
9.76 |
7.36 |
5.25 |
4.25 |
5.50 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.07 |
3.50 |
5.43 |
26.16 |
||
|
575 |
213JP |
9648118205 |
A346NP-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
3.50 |
5.43 |
27.43 |
|||||
|
10 |
1 |
230 |
215JP |
9648118110 |
A346NP-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.76 |
4.50 |
5.43 |
20.03 |
|||
|
3 |
208-230/460 |
215JP |
9648118115 |
A346NP-10T2P3 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
4.50 |
5.43 |
27.43 |
||||
|
575 |
215JP |
9648118215 |
A346NP-10T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
4.50 |
5.43 |
27.43 |
|||||
|
15 |
3 |
208-230/460 |
215JP |
9648118120 |
A346NP-15T2P3 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
11.50 |
7.00 |
3.50 |
4.56 |
8.58 |
4.50 |
5.43 |
27.64 |
|||
|
575 |
254JP |
9648118220 |
A346NP-15T2P5 |
12.13 |
11.73 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
10.48 |
4.28 |
5.43 |
32.12 |
|||||
|
20 |
3 |
230/460 |
256JP |
9648118125 |
A346NP-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
10.04 |
4.75 |
5.43 |
31.54 |
|||
|
575 |
256JP |
9648118225 |
A346NP-20T2P5 |
12.12 |
11.73 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
11.50 |
7.00 |
3.50 |
4.56 |
10.48 |
4.25 |
5.43 |
21.12 |
40
3
230/460
286JP
9649119105
A349NP-40D2P3
12.25
12.24
7.00
5.50
9.50/11.00
0.53
12.07
7.00
3.63
5.88
11.93
5.00
6.97
33.39
75
3
460
364JP
9649119120
A349NP-75D2P3
15.75
14.00
9.00
7.00
11.25/12.25
0.66
12.07
7.00
3.63
5.88
13.20
5.50
6.97
34.39
40
3
230/460
324JP
9649118105
A349NP-40T2P3
14.50
14.00
8.00
6.25
10.50/12.00
0.66
12.07
7.00
3.63
5.88
13.74
5.25
6.97
37.46
75
3
460
364JP
9649118120
A349NP-75T2P3
17.00
15.00
9.00
7.00
12.25
0.69
12.07
7.00
3.63
5.88
18.06
6.12
6.97
39.89
|
A349 |
3600 |
ODP |
30 |
3 |
230/460 |
284JP |
9649119100 |
A349NP-30D2P3 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
11.37 |
4.75 |
6.97 |
33.39 |
|
575 |
284JP |
9649119200 |
A349NP-30D2P5 |
13.78 |
11.57 |
7.00 |
5.50 |
9.50 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
11.93 |
5.00 |
6.97 |
31.09 |
|||||
|
575 |
286JP |
9649119205 |
A349NP-40D2P5 |
13.78 |
13.07 |
7.00 |
5.50 |
11.00 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
11.93 |
5.00 |
6.97 |
32.58 |
|||||
|
50 |
3 |
230/460 |
324JP |
9649119110 |
A349NP-50D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
13.20 |
5.25 |
6.97 |
33.76 |
|||
|
575 |
324JP |
9649119210 |
A349NP-50D2P5 |
15.16 |
13.07 |
8.00 |
6.25 |
10.50 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
11.50 |
5.50 |
6.97 |
33.26 |
|||||
|
60 |
3 |
230/460 |
326JP |
9649119115 |
A349NP-60D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
11.50 |
5.50 |
6.97 |
33.76 |
|||
|
575 |
326JP |
9649119215 |
A349NP-60D2P5 |
15.16 |
14.57 |
8.00 |
6.25 |
12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
11.50 |
5.50 |
6.97 |
34.76 |
|||||
|
575 |
365JP |
9649119220 |
A349NP-75D2P5 |
17.17 |
15.4 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
16.38 |
5.88 |
6.97 |
35.97 |
|||||
|
TEFC |
30 |
3 |
230/460 |
286JP |
9649118100 |
A349NP-30T2P3 |
12.75 |
12.84 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
13.11 |
4.75 |
6.97 |
35.46 |
||
|
575 |
286JP |
9649118200 |
A349NP-30T2P5 |
13.78 |
13.07 |
7.00 |
5.50 |
9.50 |
0.53 |
12.07 |
7.00 |
3.63 |
5.88 |
11.07 |
4.75 |
6.97 |
35.53 |
|||||
|
575 |
324JP |
9649118205 |
A349NP-40T2P5 |
15.16 |
14.57 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
12.58 |
5.25 |
6.97 |
37.97 |
|||||
|
50 |
3 |
230/460 |
326JP |
9649118110 |
A349NP-50T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
14.61 |
5.25 |
6.97 |
33.36 |
|||
|
575 |
326JP |
9649118210 |
A349NP-50T2P5 |
15.16 |
14.57 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
12.58 |
5.25 |
6.97 |
37.97 |
|||||
|
60 |
3 |
230/460 |
364JP |
9649118115 |
A349NP-60T2P3 |
16.50 |
14.50 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
14.61 |
5.88 |
6.97 |
39.48 |
|||
|
575 |
364JP |
9649118215 |
A349NP-60T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
16.02 |
5.88 |
6.97 |
39.87 |
|||||
|
575 |
365JP |
9649118220 |
A349NP-75T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
12.07 |
7.00 |
3.63 |
5.88 |
16.02 |
5.88 |
6.97 |
39.87 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A238 |
3600 |
ODP |
7.5 |
1 |
230 |
213JM |
9650229100 |
A349NM-30D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.03 |
7.94 |
3.65 |
4.75 |
7.93 |
4.50 |
5.51 |
21.97 |
|
3 |
208-230/460 |
184JM |
9650229105 |
A238FM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
8.03 |
7.94 |
3.65 |
4.75 |
6.88 |
3.63 |
5.51 |
24.28 |
||||
|
575 |
184JM |
9650229205 |
A238FM-7.5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.03 |
7.94 |
3.65 |
4.75 |
5.58 |
3.5 |
5.51 |
20.28 |
|||||
|
10 |
1 |
230 |
215JM |
9650229110 |
A238FM-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.03 |
7.94 |
3.65 |
4.75 |
7.93 |
4.50 |
5.51 |
23.09 |
|||
|
3 |
208-230/460 |
213JM |
9650229115 |
A238FM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.03 |
7.94 |
3.65 |
4.75 |
7.92 |
4.25 |
5.51 |
21.97 |
||||
|
575 |
213JM |
9650229215 |
A238FM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
7.93 |
4.50 |
5.51 |
21.97 |
|||||
|
15 |
3 |
230/460 |
215JM |
9650229120 |
A238FM-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.03 |
7.94 |
3.65 |
4.75 |
7.92 |
4.25 |
5.51 |
21.97 |
|||
|
575 |
215JM |
9650229220 |
A238FM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
7.93 |
4.50 |
5.51 |
21.97 |
|||||
|
20 |
3 |
230/460 |
254JM |
9650229125 |
A238FM-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.96 |
7.94 |
3.65 |
4.75 |
9.49 |
4.75 |
5.51 |
26.90 |
|||
|
575 |
254JM |
9650229225 |
A238FM-20D2P5 |
11.25 |
9.50 |
6.25 |
5.00 |
8.25 |
0.53 |
8.96 |
7.97 |
3.65 |
4.75 |
9.72 |
4.75 |
5.51 |
24.84 |
|||||
|
TEFC |
7.5 |
1 |
230 |
213JM |
9650228100 |
A238FM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
8.05 |
4.50 |
5.51 |
19.29 |
||
|
3 |
208-230/460 |
213JM |
9650228105 |
A238FM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
8.04 |
4.50 |
5.51 |
23.54 |
||||
|
575 |
213JM |
9650228205 |
A238FM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
8.58 |
3.50 |
5.51 |
23.95 |
|||||
|
10 |
1 |
230 |
215JM |
9650228110 |
A238FM-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.00/7.00 |
0.41 |
8.03 |
7.94 |
3.65 |
4.75 |
8.78 |
4.50 |
5.51 |
20.43 |
|||
|
3 |
230/460 |
215JM |
9650228115 |
A238FM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.00/7.00 |
0.41 |
8.03 |
7.94 |
3.65 |
4.75 |
8.04 |
4.50 |
5.51 |
23.54 |
||||
|
575 |
215M |
9650228215 |
A238FM-10T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
8.04 |
4.50 |
5.51 |
23.54 |
|||||
|
15 |
3 |
208-230/460 |
215JM |
9650228120 |
A238FM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
8.04 |
4.50 |
5.51 |
26.17 |
|||
|
575 |
215JM |
9650228220 |
A238FM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.03 |
7.94 |
3.65 |
4.75 |
8.04 |
4.50 |
5.51 |
26.16 |
|
AL238 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9650228305 |
AL238FM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.03 |
7.94 |
3.65 |
4.75 |
5.73 |
2.88 |
5.51 |
19.21 |
|
1.5 |
145JM |
9650228315 |
AL238FM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.03 |
7.94 |
3.65 |
4.75 |
5.73 |
2.88 |
5.51 |
19.21 |
|||||
|
2 |
145JM |
9650228320 |
AL238FM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.03 |
7.94 |
3.65 |
4.75 |
5.73 |
2.88 |
5.51 |
19.21 |
|||||
|
3 |
182JM |
9650228325 |
AL238FM-3T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.00/5.00 |
0.41 |
8.03 |
7.94 |
3.65 |
4.75 |
6.87 |
3.50 |
5.51 |
21.84 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2536 |
3600 |
ODP |
3 |
1 |
115/208-230 |
182JM |
9653229100 |
A2536FM-3D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.75 |
3.50 |
5.20 |
20.32 |
|
3 |
230-460 |
145JM |
9653229105 |
A2536FM-3D2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.07 |
6.00 |
4.25 |
4.69 |
5.62 |
2.88 |
5.20 |
18.95 |
||||
|
575 |
143JM |
9653229205 |
A2536FM-3D2P5 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.07 |
6.00 |
4.25 |
4.69 |
5.62 |
2.88 |
5.20 |
18.07 |
|||||
|
5 |
1 |
230 |
184JM |
9653229110 |
A2536FM-5D2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.75 |
3.51 |
5.20 |
20.32 |
|||
|
3 |
230/460 |
182JM |
9653229115 |
A2536FM-5D2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.75 |
3.50 |
5.20 |
20.32 |
||||
|
575 |
182JM |
9653229215 |
A2536FM-5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.75 |
3.50 |
5.20 |
18.94 |
|||||
|
7.5 |
1 |
230 |
216JM |
9653229120 |
A2536FM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.50 |
5.20 |
22.01 |
|||
|
3 |
208-230/460 |
184JM |
9653229125 |
A2536FM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.88 |
3.63 |
5.20 |
24.32 |
||||
|
575 |
184JM |
9653229225 |
A2536FM-7.5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
5.85 |
3.50 |
5.20 |
20.32 |
|||||
|
10 |
1 |
230 |
215JM |
9653229130 |
A2536FM-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.50 |
5.20 |
23.13 |
|||
|
3 |
208-230/460 |
213JM |
9653229135 |
A2536FM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.07 |
6.00 |
4.25 |
4.69 |
7.92 |
4.25 |
5.20 |
22.01 |
||||
|
575 |
213JM |
9653229235 |
A2536FM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.25 |
5.20 |
22.01 |
|||||
|
15 |
3 |
230/460 |
215JM |
9653229140 |
A2536FM-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.25 |
5.20 |
22.01 |
|||
|
575 |
215JM |
9653229240 |
A2536FM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.25 |
5.20 |
22.01 |
|||||
|
3 |
230/460 |
145JM |
9653228105 |
A2536FM-3T2P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.38 |
8.07 |
6.00 |
4.25 |
4.69 |
5.62 |
2.88 |
5.20 |
20.11 |
||||
|
575 |
145JM |
9653228205 |
A2536FM-3T2P5 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.38 |
8.07 |
6.00 |
4.25 |
4.69 |
5.62 |
2.88 |
5.20 |
20.11 |
|||||
|
5 |
1 |
230 |
184JM |
9653228110 |
A2536FM-5T2P1 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.87 |
3.50 |
5.20 |
23.37 |
|||
|
3 |
230/460 |
184JM |
9653228115 |
A2536FM-5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.75 |
3.50 |
5.20 |
21.88 |
||||
|
575 |
184JM |
9653228215 |
A2536FM-5T2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
6.75 |
3.50 |
5.20 |
21.88 |
|||||
|
7.5 |
1 |
230 |
213JM |
9653228120 |
A2536FM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
8.05 |
4.50 |
5.20 |
19.33 |
|||
|
3 |
208-230/460 |
213JM |
9653228125 |
A2536FM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
8.04 |
3.63 |
5.20 |
23.58 |
||||
|
575 |
213JM |
9653228225 |
A2536FM-7.5D2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
8.58 |
3.50 |
5.20 |
23.99 |
|||||
|
10 |
1 |
230 |
215JM |
9653228130 |
A2536FM-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.50 |
5.20 |
20.47 |
|||
|
3 |
230/460 |
213JM |
9653228135 |
A2536FM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
8.07 |
6.00 |
4.25 |
4.69 |
7.92 |
4.25 |
5.20 |
23.58 |
||||
|
575 |
215JM |
9653228235 |
A2536FM-10T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.25 |
5.20 |
23.58 |
|||||
|
15 |
3 |
208-230/460 |
215JM |
9653228140 |
A2536FM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.25 |
5.20 |
26.21 |
|||
|
575 |
215JM |
9653228240 |
A2536FM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
8.07 |
6.00 |
4.25 |
4.69 |
7.93 |
4.25 |
5.20 |
26.20 |
TEFC
3
1
115/230
182JM
9653228100
A2536FM-3T2P1
8.63
6.50
4.50
3.75
4.50/5.50
0.44
8.07
6.00
4.25
4.69
6.75
3.50
5.20
26.13
|
AL2536 |
1800 |
TEFC |
1 |
3 |
230/460 |
143JM |
9653228325 |
AL2536FM-1T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.07 |
6.00 |
4.25 |
4.69 |
5.73 |
2.88 |
5.20 |
19.25 |
|
1.5 |
145JM |
9653228335 |
AL2536FM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.07 |
6.00 |
4.25 |
4.69 |
5.73 |
2.88 |
5.20 |
19.25 |
|||||
|
2 |
145JM |
9653228340 |
AL2536FM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.07 |
6.00 |
4.25 |
4.69 |
5.73 |
2.88 |
5.20 |
19.25 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A25410 |
3600 |
ODP |
20 |
3 |
230/460 |
184JM |
9654229105 |
A25410FM-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
9.49 |
4.75 |
6.40 |
26.45 |
|
575 |
254JM |
9654229205 |
A25410FM-20D2P5 |
11.25 |
9.50 |
6.25 |
5.00 |
8.25 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
9.72 |
4.75 |
6.40 |
24.39 |
|||||
|
25 |
3 |
230/460 |
256JM |
9654229110 |
A25410FM-25D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
9.49 |
4.75 |
6.40 |
26.45 |
|||
|
575 |
256JM |
9654229210 |
A25410FM-25D2P5 |
11.42 |
11.42 |
6.25 |
5.00 |
8.25 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
9.45 |
4.75 |
6.40 |
25.23 |
|||||
|
30 |
3 |
230/460 |
284JM |
9654229115 |
A25410FM-30D2P3 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
11.37 |
4.75 |
6.40 |
30.41 |
|||
|
575 |
284JM |
9654229215 |
A25410FM-30D2P5 |
13.78 |
11.57 |
7.00 |
5.50 |
9.50 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
10.87 |
5.00 |
6.40 |
30.99 |
|||||
|
40 |
3 |
208-230/460 |
286JM |
9654229120 |
A25410FM-40D2P3 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
11.75 |
4.75 |
6.40 |
29.60 |
|||
|
575 |
286JM |
9654229220 |
A25410FM-40D2P5 |
13.78 |
12.53 |
7.00 |
5.50 |
9.50 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
10.87 |
5.00 |
6.40 |
30.99 |
|||||
|
TEFC |
20 |
3 |
230/460 |
256JM |
9654228105 |
A25410FM-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
10.04 |
4.75 |
7.00 |
28.56 |
||
|
575 |
256JM |
9654228205 |
A25410FM-20T2P5 |
11.38 |
12.44 |
6.25 |
5.00 |
10.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
9.94 |
4.25 |
7.00 |
30.39 |
|||||
|
25 |
3 |
230/460 |
284JM |
9654228110 |
A25410FM-25T2P3 |
12.75 |
12.84 |
7.00 |
5.00 |
9.50/11.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
12.09 |
4.75 |
6.40 |
30.81 |
|||
|
575 |
256JM |
9654228210 |
A25410FM-25T2P5 |
11.38 |
12.44 |
6.25 |
5.00 |
10.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
9.94 |
4.75 |
6.40 |
30.98 |
|||||
|
30 |
3 |
230/460 |
286JM |
9654228115 |
A25410FM-30T2P3 |
12.75 |
12.84 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
13.11 |
4.75 |
6.40 |
32.49 |
|||
|
575 |
286JM |
9654228215 |
A25410FM-30T2P5 |
13.94 |
12.32 |
7.00 |
5.50 |
11.00 |
0.57 |
8.26 |
8.00 |
3.04 |
6.00 |
11.32 |
5.00 |
6.40 |
32.87 |
|||||
|
40 |
3 |
230/460 |
324JM |
9654228120 |
A25410FM-40T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
8.26 |
8.00 |
3.04 |
6.00 |
13.74 |
5.25 |
6.40 |
34.49 |
|||
|
575 |
286JM |
9654228220 |
A25410FM-40T2P5 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
11.75 |
5.00 |
6.40 |
29.60 |
AL25410
1800
TEFC
3
3
230/460
182JM
9654228305
AL25410FM-3T4P3B
8.63
6.50
4.50
3.75
4.50/5.50
0.41
7.27
8.00
3.04
6.00
6.87
3.50
6.40
21.08
|
182JM |
9654228310 |
AL25410FM-3T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.27 |
8.00 |
3.04 |
6.00 |
6.87 |
3.50 |
6.40 |
21.08 |
||
|
5 |
3 |
184JM |
9654228315 |
AL25410FM-5T4P3B |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.44 |
7.27 |
8.00 |
3.04 |
6.00 |
6.87 |
3.50 |
6.40 |
22.58 |
|
182JM |
9654228320 |
AL25410FM-5T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.44 |
7.27 |
8.00 |
3.04 |
6.00 |
6.87 |
3.50 |
6.40 |
22.58 |
DIMENSIONS
15
3
230/460
215JM
9648229120
A346FM-15D2P3
9.50
8.00
5.25
4.25
5.50/7.00
0.43
6.50
6.88
2.56
4.56
7.92
4.25
5.43
20.44
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A346 |
3600 |
ODP |
7.5 |
1 |
230 |
213JM |
9648229100 |
A346FM-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
6.50 |
6.88 |
2.56 |
4.56 |
7.93 |
4.50 |
5.43 |
20.44 |
|
3 |
208-230/460 |
184JM |
9648229105 |
A346FM-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
6.88 |
3.63 |
5.43 |
22.75 |
||||
|
575 |
184JM |
9648229205 |
A346FM-7.5D2P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
5.85 |
3.5 |
5.43 |
18.75 |
|||||
|
10 |
1 |
230 |
215JM |
9648229110 |
A346FM-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
7.93 |
4.50 |
5.43 |
21.56 |
|||
|
3 |
280-230/460 |
213JM |
9648229115 |
A346FM-10D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
6.50 |
6.88 |
2.56 |
4.56 |
7.92 |
4.25 |
5.43 |
20.44 |
||||
|
575 |
213JM |
9648229215 |
A346FM-10D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
6.50 |
6.88 |
2.56 |
4.56 |
7.93 |
4.25 |
5.43 |
20.44 |
|||||
|
575 |
215JM |
9648229220 |
A346FM-15D2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.44 |
6.50 |
6.88 |
2.56 |
4.56 |
7.93 |
4.25 |
5.43 |
20.44 |
|||||
|
20 |
3 |
230/460 |
254JM |
9648229125 |
A346FM-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.26 |
8.00 |
3.04 |
6.00 |
9.49 |
4.75 |
6.40 |
24.82 |
|||
|
575 |
254JM |
9648229225 |
A346FM-20D2P5 |
11.25 |
9.50 |
6.25 |
5.00 |
8.25 |
0.53 |
7.62 |
6.88 |
2.56 |
4.56 |
9.72 |
4.75 |
6.40 |
22.76 |
|||||
|
TEFC |
7.5 |
1 |
230 |
213JM |
9648228100 |
A346FM-7.5T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.05 |
4.25 |
5.43 |
17.76 |
||
|
3 |
208-230/460 |
184JM |
9648228105 |
A346FM-7.5T2P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
6.87 |
3.5 |
5.43 |
21.81 |
||||
|
230/460 |
213JM |
9648228106 |
A346FM-7.5T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.04 |
4.50 |
5.43 |
22.01 |
|||||
|
575 |
213JM |
9648228205 |
A346FM-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.05 |
4.25 |
5.43 |
17.76 |
|||||
|
10 |
1 |
230 |
215JM |
9648228110 |
A346FM-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.78 |
4.50 |
5.43 |
18.90 |
|||
|
3 |
230/460 |
215JM |
9648228115 |
A346FM-10T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.04 |
4.50 |
5.43 |
22.01 |
||||
|
575 |
215JM |
9648228215 |
A346FM-10T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.04 |
4.50 |
5.43 |
22.01 |
|||||
|
15 |
3 |
208/230-460 |
215JM |
9648228120 |
A346FM-15T2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.04 |
4.50 |
5.43 |
24.64 |
|||
|
575 |
215JM |
9648228220 |
A346FM-15T2P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
8.04 |
4.50 |
5.43 |
22.01 |
|||||
|
20 |
3 |
230/460 |
256JM |
9648228125 |
A346FM-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
7.62 |
6.88 |
2.56 |
4.56 |
10.04 |
4.75 |
5.43 |
26.93 |
|||
|
575 |
256JM |
9648228225 |
A346FM-20T2P5 |
11.38 |
12.44 |
6.25 |
5.00 |
10.00 |
0.53 |
7.62 |
6.88 |
2.56 |
4.56 |
9.94 |
4.25 |
5.43 |
28.76 |
AL346
1800
TEFC
1
3
230/460
143JM
9648228305
AL346FM-1T4P3
6.50
5.94
3.50
2.75
4.00/5.00
0.34
8.07
6.00
4.25
4.69
5.73
2.88
5.20
17.68
|
1.5 |
145JM |
9648228315 |
AL346FM-1.5T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.07 |
6.00 |
4.25 |
4.69 |
5.73 |
2.88 |
5.20 |
17.68 |
|
2 |
145JM |
9648228320 |
AL346FM-2T4P3 |
6.50 |
5.94 |
3.50 |
2.75 |
4.00/5.00 |
0.34 |
8.07 |
6.00 |
4.25 |
4.69 |
5.73 |
2.88 |
5.20 |
17.68 |
|
3 |
182JM |
9648228325 |
AL346FM-3T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.50 |
6.88 |
2.56 |
4.56 |
6.87 |
3.50 |
5.43 |
20.31 |
DIMENSIONS
50
3
230/460
324JM
9649229110
A349FM-50D2P3
14.04
13.50
8.00
6.25
10.50/12.00
0.66
8.19
6.88
2.67
5.88
13.20
5.25
6.97
29.88
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A349 |
3600 |
ODP |
30 |
3 |
230 |
284JM |
9649229100 |
A349FM-30D2P3 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
8.19 |
6.88 |
2.67 |
5.88 |
11.37 |
4.75 |
6.97 |
29.50 |
|
575 |
284JM |
9649229200 |
A349FM-30D2P5 |
13.78 |
13.78 |
7.00 |
5.50 |
9.50 |
0.53 |
8.19 |
6.88 |
2.67 |
5.88 |
10.87 |
5.00 |
6.97 |
30.08 |
|||||
|
40 |
3 |
208-230/460 |
286JM |
9649229105 |
A349FM-40D2P3 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
8.19 |
6.88 |
2.67 |
5.88 |
11.75 |
4.75 |
6.97 |
28.69 |
|||
|
575 |
2863JM |
649229205 |
A349FM-40D2P5 |
13.78 |
12.53 |
7.00 |
5.50 |
11.00 |
0.53 |
8.19 |
6.88 |
2.67 |
5.88 |
11.93 |
5.00 |
6.97 |
28.47 |
|||||
|
575 |
324JM |
9649229210 |
A349FM-50D2P5 |
15.16 |
13.07 |
8.00 |
6.25 |
10.50 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
11.5 |
5.50 |
6.97 |
29.37 |
|||||
|
60 |
3 |
230/460 |
326JM |
9649229115 |
A349FM-60D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
13.20 |
5.25 |
6.97 |
29.88 |
|||
|
575 |
326JM |
9649229215 |
A349FM-60D2P5 |
15.16 |
15.57 |
8.00 |
6.25 |
12.00 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
11.5 |
5.50 |
6.97 |
30.87 |
|||||
|
75 |
3 |
208-230/460 |
364JM |
9649229120 |
A349FM-75D2P3 |
17.17 |
15.40 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
16.38 |
5.88 |
6.97 |
32.08 |
|||
|
575 |
364JM |
9649229220 |
A349FM-75D2P5 |
17.17 |
15.40 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
16.38 |
5.88 |
6.97 |
32.08 |
|||||
|
TEFC |
30 |
3 |
230/460 |
286JM |
9649228100 |
A349FM-30T2P3 |
12.75 |
12.84 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
8.19 |
6.88 |
2.67 |
5.88 |
13.11 |
4.75 |
6.97 |
31.58 |
||
|
575 |
286JM |
9649228200 |
A349FM-30T2P5 |
13.94 |
12.32 |
7.00 |
5.50 |
11.00 |
0.57 |
8.19 |
6.88 |
2.67 |
5.88 |
11.32 |
4.75 |
6.97 |
31.96 |
|||||
|
40 |
3 |
230/460 |
324JM |
9649228105 |
A349FM-40T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
13.74 |
5.25 |
6.97 |
28.69 |
|||
|
575 |
286JM |
9649228205 |
A349FM-40T2P5 |
13.50 |
12.94 |
7.00 |
5.50 |
11.00 |
0.53 |
8.19 |
6.88 |
2.67 |
5.88 |
11.75 |
4.75 |
6.97 |
28.69 |
|||||
|
50 |
3 |
230/460 |
326JM |
9649228110 |
A349FM-50T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
14.61 |
5.25 |
6.97 |
33.59 |
|||
|
575 |
326JM |
9649228210 |
A349FM-50T2P5 |
15.67 |
14.21 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
13.54 |
5.25 |
6.97 |
35.97 |
|||||
|
60 |
3 |
208/230-460 |
326JM |
9649228115 |
A349FM-60T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
14.61 |
5.25 |
6.97 |
33.59 |
|||
|
575 |
364JM |
9649228215 |
A349FM-60T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
16.02 |
5.88 |
6.97 |
35.97 |
|||||
|
75 |
3 |
230/460 |
365JM |
9649228120 |
A349FM-75T2P3 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
16.02 |
5.88 |
6.97 |
35.97 |
|||
|
575 |
365JM |
9649228220 |
A349FM-75T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
8.19 |
6.88 |
2.67 |
5.88 |
16.02 |
5.88 |
6.97 |
35.97 |
DIMENSIONS
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A349 |
1800 |
TEFC |
5 |
1 |
230 |
215JM |
9649228325 |
AL349FM-5T4P1B |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
6.79 |
6.88 |
2.67 |
5.88 |
9.44 |
4.50 |
6.97 |
24.85 |
|
215JM |
9649228330 |
AL349FM-5T4P1 |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
6.79 |
6.88 |
2.67 |
5.88 |
9.44 |
4.50 |
6.97 |
24.85 |
||||||
|
3 |
230/460 |
184JM |
9649228300 |
AL349FM-5T4P3B |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
6.87 |
3.50 |
6.97 |
22.10 |
||||
|
184JM |
9649228305 |
AL349FM-5T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
6.87 |
3.50 |
6.97 |
22.10 |
||||||
|
5 |
575 |
184JM |
9649228400 |
AL349FM-5T4P5B |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
6.87 |
3.50 |
6.97 |
22.10 |
||||
|
184JM |
9649228405 |
AL349FM-5T4P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
6.87 |
3.50 |
6.97 |
22.10 |
||||||
|
7.5 |
1 |
230 |
215JM |
9649228335 |
AL349FM-7.5T4P1B |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
6.79 |
6.88 |
2.67 |
5.88 |
9.44 |
4.50 |
6.97 |
24.85 |
|||
|
215JM |
9649228340 |
AL349FM-7.5T4P1 |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
6.79 |
6.88 |
2.67 |
5.88 |
9.44 |
5.13 |
6.97 |
24.85 |
||||||
|
3 |
230/460 |
213JM |
9649228310 |
AL349FM-7.5T4P3B |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
8.04 |
4.50 |
6.97 |
23.42 |
||||
|
213JM |
9649228315 |
AL349FM-7.5T4P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
8.04 |
4.50 |
6.97 |
23.42 |
||||||
|
3 |
575 |
213JM |
9649228410 |
AL349FM-7.5T4P5B |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
8.04 |
4.50 |
6.97 |
23.42 |
||||
|
213JM |
9649228415 |
AL349FM-7.5T4P5B |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
8.04 |
4.50 |
6.97 |
23.42 |
||||||
|
10 |
1 |
230 |
215JM |
9649228345 |
AL349FM-10T4P1 |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
6.79 |
6.88 |
2.67 |
5.88 |
9.44 |
4.50 |
6.97 |
24.85 |
|||
|
3 |
230/460 |
215JM |
9649228320 |
AL349FM-10T4P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
8.04 |
4.50 |
6.97 |
24.93 |
||||
|
3 |
575 |
215JM |
9649228420 |
AL349FM-10T4P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
6.79 |
6.88 |
2.67 |
5.88 |
8.04 |
4.50 |
6.97 |
24.93 |
|
AL3410 |
1800 |
TEFC |
5 |
1 |
230 |
215JM |
9658228340 |
AL3410FM-5T4P1 |
9.50 |
8.88 |
5.25 |
4.25 |
7.00 |
0.44 |
7.39 |
8.50 |
3.09 |
6.25 |
9.44 |
4.50 |
6.63 |
25.45 |
|
3 |
230/460 |
184JM |
9658228305 |
AL3410FM-5T4P3 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.39 |
8.50 |
3.09 |
6.25 |
6.87 |
3.50 |
6.63 |
22.70 |
||||
|
575 |
184JM |
9658228405 |
AL3410FM-5T4P5 |
8.63 |
6.50 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
7.39 |
8.50 |
3.09 |
6.25 |
6.87 |
3.50 |
6.63 |
22.70 |
|||||
|
7.5 |
3 |
230/460 |
213JM |
9658228315 |
AL3410FM-5T4P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.39 |
8.50 |
3.09 |
6.25 |
8.04 |
4.50 |
6.63 |
24.02 |
|||
|
575 |
213JM |
9658228415 |
AL3410FM-7.5T4P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.39 |
8.50 |
3.09 |
6.25 |
8.04 |
4.50 |
6.63 |
24.02 |
|||||
|
10 |
3 |
230/460 |
215JM |
9658228320 |
AL3410FM-10T4P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.39 |
8.50 |
3.09 |
6.25 |
8.04 |
4.50 |
6.63 |
25.53 |
|||
|
575 |
215JM |
9658228420 |
AL3410FM-10T4P5 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
7.39 |
8.50 |
3.09 |
6.25 |
8.04 |
4.50 |
6.63 |
25.52 |
|||||
|
15 |
3 |
230/460 |
254JM |
9658228325 |
AL3410FM-15T4P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.38 |
8.50 |
3.09 |
6.25 |
10.04 |
4.75 |
6.63 |
28.43 |
|||
|
575 |
254JM |
9658228425 |
AL3410FM-15T4P5 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
8.38 |
8.50 |
3.09 |
6.25 |
10.0194 |
4.75 |
6.63 |
28.49 |
3
208-230/460
213JP
9648129115
A346FP-10D2P3
9.45
7.95
5.25
4.25
5.50/7.00
0.41
10.56
6.88
2.56
4.56
7.93
4.50
5.43
25.62
3
208-230/460
215JP
9648128115
A346FP-10T2P3
9.76
8.86
5.25
4.25
5.50/7.00
0.41
10.56
6.88
2.56
4.56
8.58
3.50
5.43
26.49
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A346 |
3600 |
ODP |
7.5 |
1 |
230 |
213JM |
9648129100 |
A346FP-7.5D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
7.93 |
4.50 |
5.43 |
24.50 |
|
3 |
208-230/460 |
184JP |
9648129105 |
A346FP-7.5D2P3 |
8.75 |
6.50 |
4.50 |
3.75 |
5.50 |
0.41 |
9.56 |
6.88 |
3.50 |
4.56 |
6.88 |
2.07 |
5.43 |
22.75 |
||||
|
575 |
184JP |
9648129205 |
A346FP-7.5D2P5 |
8.66 |
6.30 |
4.50 |
3.75 |
4.50/5.50 |
0.41 |
9.56 |
6.88 |
3.50 |
4.56 |
6.70 |
3.50 |
5.43 |
21.16 |
|||||
|
10 |
1 |
230 |
215JP |
9648129110 |
A346FP-10D2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
7.93 |
4.50 |
5.43 |
25.62 |
|||
|
575 |
215JP |
9648129215 |
A346FP-10D2P5 |
9.45 |
7.95 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
7.93 |
4.50 |
5.43 |
21.41 |
|||||
|
15 |
3 |
230/460 |
215JP |
9648129120 |
A346FP-15D2P3 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
10.56 |
6.88 |
2.56 |
4.56 |
7.93 |
4.50 |
5.43 |
24.51 |
|||
|
575 |
215JP |
9648129220 |
A346FP-15D2P5 |
9.45 |
7.95 |
5.25 |
4.25 |
5.50/7.00 |
0.43 |
10.56 |
6.88 |
2.56 |
4.56 |
7.93 |
4.50 |
5.43 |
25.20 |
|||||
|
20 |
3 |
230/460 |
254JP |
9648129125 |
A346FP-20D2P3 |
11.25 |
11.25 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
10.56 |
6.88 |
2.56 |
4.56 |
9.49 |
4.75 |
5.43 |
25.63 |
|||
|
575 |
254JP |
9648129225 |
A346FP-20D2P5 |
12.17 |
12.00 |
6.25 |
5.00 |
8.25 |
0.53 |
10.56 |
6.88 |
2.56 |
4.56 |
12.30 |
4.75 |
5.43 |
29.76 |
|||||
|
TEFC |
7.5 |
1 |
208-230 |
213JP |
9648128100 |
A346FP-7.5T2P1 |
9.76 |
7.36 |
5.25 |
4.25 |
5.50 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
8.07 |
3.50 |
5.43 |
25.22 |
||
|
3 |
208-230/460 |
213JP |
9648128106 |
A346FP-7.5T2P3 |
9.76 |
7.36 |
5.25 |
4.25 |
5.50 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
8.58 |
3.50 |
5.43 |
24.99 |
||||
|
575 |
213JP |
9648128205 |
A346FP-7.5T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
8.58 |
3.50 |
5.43 |
26.49 |
|||||
|
10 |
1 |
230 |
215JP |
9648128110 |
A346FP-10T2P1 |
9.50 |
8.00 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
8.76 |
4.50 |
5.43 |
19.09 |
|||
|
575 |
215JP |
9648128215 |
A346FP-10T2P5 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
8.58 |
3.50 |
5.43 |
26.49 |
|||||
|
15 |
3 |
230/460 |
215JP |
9648128120 |
A346FP-15T2P3 |
9.76 |
8.86 |
5.25 |
4.25 |
5.50/7.00 |
0.41 |
10.56 |
6.88 |
2.56 |
4.56 |
8.58 |
3.50 |
5.43 |
26.70 |
|||
|
575 |
254JP |
9648128220 |
A346FP-15T2P5 |
12.13 |
11.73 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
10.56 |
6.88 |
2.56 |
4.56 |
10.48 |
4.25 |
5.43 |
31.18 |
|||||
|
20 |
3 |
230/460 |
256JP |
9648128125 |
A346FP-20T2P3 |
11.50 |
11.50 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
10.56 |
6.88 |
2.56 |
4.56 |
10.04 |
4.75 |
5.43 |
30.60 |
|||
|
575 |
256JP |
9648128225 |
A346FP-20T2P5 |
12.12 |
11.73 |
6.25 |
5.00 |
8.25/10.00 |
0.53 |
10.56 |
6.88 |
2.56 |
4.56 |
10.04 |
4.75 |
5.43 |
31.18 |
50
230/460
324JP
9649129110
A349FP-50D2P3
14.04
13.50
8.00
6.25
10.50/12.00
0.66
11.12
6.88
2.67
5.88/p>
13.20
5.25
6.97
32.81
50
230/460
326JP
9649128110
A349FP-50T2P3
14.50
14.00
8.00
6.25
10.50/12.00
0.66
11.12
6.88
2.67
5.88/p>
14.61
5.25
6.97
36.41
|
Series |
RPM |
Encl |
HP |
PH |
Volts |
Frame |
Order Number |
Model Description |
A |
B |
D |
E |
F |
H |
K |
X |
Y |
Z |
AB |
BA |
DD |
OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A349 |
3600 |
ODP |
30 |
3 |
230/460 |
284JP |
9649129100 |
A349FP-30D2P312 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
11.12 |
6.88 |
2.67 |
5.88 |
11.37 |
4.75 |
6.97 |
32.44 |
|
575 |
284JP |
9649129200 |
A349FP-30D2P5 |
13.78 |
11.57 |
7.00 |
5.50 |
9.50 |
0.53 |
11.12 |
6.88 |
2.67 |
5.88 |
11.93 |
5.00 |
6.97 |
30.14 |
|||||
|
40 |
3 |
230/460 |
286JP |
9649129105 |
A349FP-40D2P3 |
12.25 |
12.24 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
11.12 |
6.88 |
2.67 |
5.88 |
11.37 |
4.75 |
6.97 |
32.44 |
|||
|
575 |
286JP |
9649129205 |
A349FP-40D2P5 |
13.78 |
13.07 |
7.00 |
5.50 |
11.00 |
0.53 |
11.12 |
6.88 |
2.67 |
5.88 |
11.93 |
5.00 |
6.97 |
31.63 |
|||||
|
575 |
324JP |
9649129210 |
A349FP-50D2P5 |
15.16 |
13.07 |
8.00 |
6.25 |
10.50 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88/p> |
11.50 |
5.50 |
6.97 |
32.31 |
|||||
|
60 |
3 |
230/460 |
326JP |
9649129115 |
A349FP-60D2P3 |
14.04 |
13.50 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88/p> |
13.20 |
5.25 |
6.97 |
32.81 |
|||
|
575 |
326JP |
9649129215 |
A349FP-60D2P5 |
15.16 |
14.57 |
8.00 |
6.25 |
12.00 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88/p> |
11.50 |
5.50 |
6.97 |
33.81 |
|||||
|
75 |
3 |
460 |
*364JPZ |
9649129120 |
A349FP-75D2P3 |
15.75 |
14.00 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88 |
13.20 |
5.88 |
6.97 |
33.44 |
|||
|
575 |
*364JPZ |
9649129220 |
A349FP-75D2P5 |
17.17 |
15.4 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88 |
16.38 |
5.88 |
6.97 |
35.02 |
|||||
|
TEFC |
30 |
3 |
230/460 |
286JP |
9649128100 |
A349FP-30T2P3 |
12.75 |
12.84 |
7.00 |
5.50 |
9.50/11.00 |
0.53 |
11.12 |
6.88 |
2.67 |
5.88 |
13.11 |
4.75 |
6.97 |
34.51 |
||
|
575 |
286JP |
9649128200 |
A349FP-30T2P5 |
13.78 |
13.07 |
7.00 |
5.50 |
9.50 |
0.53 |
11.12 |
6.88 |
2.67 |
5.88 |
11.07 |
5.00 |
6.97 |
34.58 |
|||||
|
40 |
3 |
230/460 |
324JP |
9649128105 |
A349FP-40T2P3 |
14.50 |
14.00 |
8.00 |
6.25 |
10.50/12.00 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88 |
13.74 |
4.75 |
6.97 |
36.51 |
|||
|
575 |
324JP |
9649128205 |
A349FP-40T2P5 |
15.16 |
14.57 |
7.00 |
5.50 |
11.00 |
0.53 |
11.12 |
6.88 |
2.67 |
5.88 |
11.93 |
5.00 |
6.97 |
37.02 |
|||||
|
575 |
326JP |
9649128210 |
A349FP-50T2P5 |
15.16 |
14.57 |
8.00 |
6.25 |
10.50 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88/p> |
12.58 |
5.50 |
6.97 |
37.02 |
|||||
|
60 |
3 |
230/460 |
*364JPZ |
9649128115 |
A349FP-60T2P3 |
16.50 |
14.50 |
9.00 |
7.00 |
11.25/12.25 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88/p> |
14.61 |
5.88 |
6.97 |
38.92 |
|||
|
575 |
*364JPZ |
9649128215 |
A349FP-60T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88/p> |
16.02 |
5.88 |
6.97 |
38.92 |
|||||
|
75 |
3 |
460 |
*364JPZ |
9649128120 |
A349FP-75T2P3 |
17.00 |
15.00 |
9.00 |
7.00 |
12.25 |
0.69 |
11.12 |
6.88 |
2.67 |
5.88 |
18.06 |
6.12 |
6.97 |
38.94 |
|||
|
575 |
*364JPZ |
9649128220 |
A349FP-75T2P5 |
17.17 |
16.22 |
9.00 |
7.00 |
11.26/12.24 |
0.66 |
11.12 |
6.88 |
2.67 |
5.88 |
16.02 |
5.88 |
6.97 |
38.92 |
JM FRAME MOTOR SPECIFICATIONS 3600RPM
| 3-Phase JM O.D.P. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3 | 182JM | 1.15 | 230 | 16.2 | JM-1 | 104219000 | 86 |
| 5 | 184JM | 1.15 | 230 | 23.7 | JM-1 | 104219002 | 112 |
| 7.5 | 184JM | 1.15 | 230 | 33.4 | JM-1 | 106026016 | 112 |
| 213JM | 1.15 | 230 | 39 | JM-2 | 104219004 | 121 | |
| 10 | 215JM | 1.15 | 230 | 51.6 | JM-2 | 104219006 | 121 |
| 3-Phase JM O.D.P. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 145JM | 1.15 | 208-230/460 | 8.2-8.5/4.3 | JM-1 | 104236002 | 46 |
| 5.0 | 182JM | 1.15 | 208-230/460 | 13.5-14/7 | JM-1 | 104236004 | 48 |
| 7.5 | 184JM | 1.15 | 208-230/460 | 20.5-21/10.5 | JM-1 | 104236006 | 70 |
| 10 | 213JM | 1.15 | 208-230/460 | 26.5-27.6/13.8 | JM-2 | 104236008 | 121 |
| 15 | 215JM | 1.15 | 208-230/460 | 38-39.6/19.8 | JM-2 | 104236009 | 131 |
| 20 | 254JM | 1.15 | 208-230/460 | 52.6-54.7/27.4 | JM-3 | 104236010 | 179 |
| 25 | 256JM | 1.15 | 208-230/460 | 64.4-66.9/33.5 | JM-3 | 104236011 | 174 |
| 30 | 284JM | 1.15 | 208-230/460 | 77.4-81/40.5 | JM-4 | 104236012 | 333 |
| 40 | 286JM | 1.15 | 208-230/460 | 104-108.3/54.2 | JM-4 | 104236013 | 417 |
| 50 | 324JM | 1.15 | 208-230/460 | 131-137.5/68 | JM-4 | 104236014 | 421 |
| 60 | 326JM | 1.15 | 230/460 | 163.3/86.7 | JM-4 | 104236015 | 472 |
| 75 | 364JM | 1.15 | 230/460 | 187.5/93.7 | JM-4 | 104236016 | 695 |
| 3-Phase JM O.D.P. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 145JM | 1.15 | 575 | 3.4 | JM-1 | 104223001 | 40 |
| 5.0 | 182JM | 1.15 | 575 | 5.6 | JM-1 | 104223002 | 59 |
| 7.5 | 184JM | 1.15 | 575 | 8 | JM-1 | 104223003 | 70 |
| 10 | 213JM | 1.15 | 575 | 11 | JM-2 | 104223004 | 117 |
| 15 | 215JM | 1.15 | 575 | 15.9 | JM-2 | 104223005 | 131 |
| 20 | 254JM | 1.15 | 575 | 21.9 | JM-3 | 104223006 | 151 |
| 25 | 256JM | 1.15 | 575 | 26.8 | JM-3 | 104223007 | 174 |
| 30 | 284JM | 1.15 | 575 | 32 | JM-4 | 104223008 | 333 |
| 40 | 286JM | 1.15 | 575 | 43.4 | JM-4 | 104223009 | 417 |
| 50 | 324JM | 1.15 | 575 | 54.4 | JM-4 | 104223010 | 496 |
| 60 | 326JM | 1.15 | 575 | 65.3 | JM-4 | 104223011 | 582 |
| 75 | 364JM | 1.15 | 575 | 75 | JM-4 | 104223012 | 695 |
Motor Fit CodeFlange Rabbet, AKShaft End Diameter, UShaft End Diameter, UFits Motor Frames
| Motor Fit Codes with Dimensions | ||||
|---|---|---|---|---|
| JM-1 | 4.5 | 0.875 | 4.250 | 143-145-182-184 |
| JM-2 | 8.5 | 0.875 | 4.250 | 213-215 |
| JM-3 | 8.5 | 1.250 | 5.250 | 254-256 |
| JM-4 | 12.5 | 1.250 | 5.250 | 284-286-324-326-364-365 |
| JP-1 | 4.5 | 0.875 | 7.312 | 143-145-182-184 |
| JP-2 | 8.5 | 1.250 | 8.125 | 213-215-254-256 |
| JP-3 | 12.5 | 1.250 | 8.125 | 284-286-324-326 |
| *JPZ-2P | 12.5 | 1.250 | 8.125 | 364-445JPZ/TCZ |
*JPZ Frame motors are Franklin specified custom shaft versions
JM FRAME MOTOR SPECIFICATIONS 3600RPM
| 1-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3 | 182JM | 1.15 | 115/230 | 29/14.5 | JM-1 | 104220000 | 62 |
| 5 | 184JM | 1 | 230 | 19.5 | JM-1 | 104220002 | 92 |
| 7.5 | 213JM | 1 | 230 | 33 | JM-2 | 104220004 | 121 |
| 10 | 215JM | 1 | 230 | 40 | JM-2 | 104220006 | 121 |
| 3-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 145JM | 1.25 | 575 | 3.7 | JM-1 | 104224001 | 52 |
| 5.0 | 184JM | 1.25 | 575 | 5.9 | JM-1 | 104224002 | 88 |
| 7.5 | 213JM | 1.25 | 575 | 8.8 | JM-2 | 104224003 | 139 |
| 10 | 215JM | 1.15 | 575 | 10.8 | JM-2 | 104224004 | 163 |
| 15 | 215JM | 1.15 | 575 | 15.6 | JM-2 | 104224005 | 163 |
| 20 | 256JM | 1.25 | 575 | 23.3 | JM-3 | 104224006 | 269 |
| 25 | 284JM | 1.25 | 575 | 28.5 | JM-4 | 104224007 | 362 |
| 30 | 286JM | 1.25 | 575 | 33.8 | JM-4 | 104224008 | 419 |
| 40 | 324JM | 1.25 | 575 | 45.8 | JM-4 | 104224009 | 507 |
| 50 | 326JM | 1.25 | 575 | 56.1 | JM-4 | 104224010 | 573 |
| 60 | 364JM | 1.25 | 575 | 67 | JM-4 | 104224011 | 825 |
| 75 | 365JM | 1.25 | 575 | 81.8 | JM-4 | 104224012 | 847 |
| 3-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 145JM | 1.25 | 575 | 3.7 | JM-1 | 104224001 | 52 |
| 5.0 | 184JM | 1.25 | 575 | 5.9 | JM-1 | 104224002 | 88 |
| 7.5 | 213JM | 1.25 | 575 | 8.8 | JM-2 | 104224003 | 139 |
| 10 | 215JM | 1.15 | 575 | 10.8 | JM-2 | 104224004 | 163 |
| 15 | 215JM | 1.15 | 575 | 15.6 | JM-2 | 104224005 | 163 |
| 20 | 256JM | 1.25 | 575 | 23.3 | JM-3 | 104224006 | 269 |
| 25 | 284JM | 1.25 | 575 | 28.5 | JM-4 | 104224007 | 362 |
| 30 | 286JM | 1.25 | 575 | 33.8 | JM-4 | 104224008 | 419 |
| 40 | 324JM | 1.25 | 575 | 45.8 | JM-4 | 104224009 | 507 |
| 50 | 326JM | 1.25 | 575 | 56.1 | JM-4 | 104224010 | 573 |
| 60 | 364JM | 1.25 | 575 | 67 | JM-4 | 104224011 | 825 |
| 75 | 365JM | 1.25 | 575 | 81.8 | JM-4 | 104224012 | 847 |
JM FRAME MOTOR SPECIFICATIONS 3600RPM
| 1-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3 | 182JP | 1.15 | 115/230 | 33.4/16.7 | JP-1 | 104217000 | 86 |
| 5 | 184JP | 1.15 | 230 | 25.3 | JP-1 | 104217002 | 112 |
| 7.5 | 213JP | 1.15 | 230 | 34.5 | JP-2 | 104217004 | 143 |
| 10 | 215JP | 1.15 | 230 | 48.3 | JP-2 | 104217006 | 121 |
| 1-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 145JP | 1.15 | 575 | 3.3 | JP-1 | 104221001 | 40 |
| 5.0 | 182JP | 1.15 | 575 | 5.6 | JP-1 | 104221002 | 59 |
| 7.5 | 184JP | 1.15 | 575 | 8 | JP-1 | 104221003 | 70 |
| 10 | 213JP | 1.15 | 575 | 11 | JP-2 | 104221004 | 117 |
| 15 | 215JP | 1.15 | 575 | 15.9 | JP-2 | 104221005 | 131 |
| 20 | 254JP | 1.15 | 575 | 21.9 | JP-2 | 104221006 | 151 |
| 25 | 256JP | 1.15 | 575 | 26.8 | JP-2 | 104221007 | 174 |
| 30 | 284JP | 1.15 | 575 | 32 | JP-3 | 104221008 | 333 |
| 40 | 286JP | 1.15 | 575 | 43.4 | JP-3 | 104221009 | 417 |
| 50 | 324JP | 1.15 | 575 | 54.4 | JP-3 | 104221010 | 496 |
| 60 | 326JP | 1.15 | 575 | 65.3 | JP-3 | 104221011 | 582 |
| 75 | *364JPZ | 1.15 | 575 | 76.6 | JPZ-2P | 104221012 | 756 |
| 1-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 145JP | 1.15 | 208-230/460 | 7.9-8.3/4.1 | JP-1 | 104237002 | 40 |
| 5.0 | 182JP | 1.15 | 208-230/460 | 13.5-14/7 | JP-1 | 104237004 | 59 |
| 7.5 | 184JP | 1.15 | 208-230/460 | 19.2-19.9/9.9 | JP-1 | 104237006 | 70 |
| 10.0 | 213JP | 1.15 | 208-230/460 | 26.5-27.6/13.8 | JP-2 | 104237008 | 117 |
| 15 | 215JP | 1.15 | 208-230/460 | 38-39.6/19.8 | JP-2 | 104237009 | 131 |
| 20 | 254JP | 1.15 | 208-230/460 | 52.6-54.7/27.4 | JP-2 | 104237010 | 151 |
| 25 | 256JP | 1.15 | 208-230/460 | 64.4-66.9/33.5 | JP-2 | 104237011 | 174 |
| 30 | 284JP | 1.15 | 208-230/460 | 76.7-79.8/40 | JP-3 | 104237012 | 333 |
| 40 | 286JP | 1.15 | 208-230/460 | 104-108.3/54.2 | JP-3 | 104237013 | 417 |
| 50 | 324JP | 1.15 | 208-230/460 | 131-137.5/68 | JP-3 | 104237014 | 496 |
| 60 | 326JP | 1.15 | 230/460 | 154/77 | JP-3 | 104237015 | 582 |
| 75 | *364JPZ | 1.15 | 230/460 | 157.6/78.8 | JPZ-2P | 104237016 | 754 |
JM FRAME MOTOR SPECIFICATIONS 3600RPM
| 1-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3 | 145JP | 1.15 | 115/230 | 29.9/15 | JP-1 | 104218000 | 53 |
| 5 | 184JP | 1.15 | 230 | 23 | JP-1 | 104218002 | 106 |
| 7.5 | 213JP | 1.15 | 230 | 34.3 | JP-2 | 104218004 | 143 |
| 10 | 215JP | 1.15 | 230 | 46 | JP-2 | 104218006 | 121 |
| 3-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 182JP | 1.25 | 208-230/460 | 8.01-9.08/4.5 | JP-1 | 104239002 | 88 |
| 5.0 | 184JP | 1.25 | 208-230/460 | 13.1-14.8/7.4 | JP-1 | 104239004 | 88 |
| 7.5 | 184JP | 1.15 | 208-230/460 | 19.4-21.8/10.9 | JP-1 | 104239220 | 96 |
| 7.5 | 213JP | 1.25 | 208-230/460 | 19.4-21.8/10.9 | JP-2 | 104239006 | 139 |
| 10 | 215JP | 1.25 | 208-230/460 | 25.7-29/14.5 | JP-2 | 104239008 | 163 |
| 15 | 215JP | 1.25 | 208-230/460 | 37.6-42.5/21.3 | JP-2 | 104239009 | 236 |
| 20 | 256JP | 1.25 | 208-230/460 | 51.3-59.3/29.6 | JP-2 | 104239010 | 269 |
| 25 | 284JP | 1.25 | 208-230/460 | 63-78.8/39.4 | JP-3 | 104239011 | 362 |
| 30 | 286JP | 1.25 | 208-230/460 | 74.8-84.5/42.3 | JP-3 | 104239012 | 392 |
| 40 | 324JP | 1.25 | 208-230/460 | 101-114.5/57.25 | JP-3 | 104239013 | 547 |
| 50 | 326JP | 1.25 | 208-230/460 | 124-140/70 | JP-3 | 104239014 | 584 |
| 60 | *364JPZ | 1.25 | 208-230/460 | 148-167.5/83.8 | JPZ-2P | 104239015 | 587 |
| 75 | *364JPZ | 1.15 | 208-230/460 | 181-164/81.9 | JPZ-2P | 104239017 | 847 |
| 3-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 182JP | 1.25 | 575 | 3.6 | JP-1 | 104222001 | 88 |
| 5.0 | 184JP | 1.25 | 575 | 5.9 | JP-1 | 104222002 | 88 |
| 7.5 | 213JP | 1.25 | 575 | 8.8 | JP-2 | 104222003 | 139 |
| 10 | 215JP | 1.25 | 575 | 11.6 | JP-2 | 104222004 | 163 |
| 15 | 254JP | 1.25 | 575 | 17.25 | JP-2 | 104222005 | 236 |
| 20 | 256JP | 1.25 | 575 | 23.3 | JP-2 | 104222006 | 269 |
| 25 | 284JP | 1.25 | 575 | 28.5 | JP-3 | 104222007 | 362 |
| 30 | 286JP | 1.25 | 575 | 33.8 | JP-3 | 104222008 | 392 |
| 40 | 324JP | 1.25 | 575 | 45.8 | JP-3 | 104222009 | 507 |
| 50 | 326JP | 1.25 | 575 | 56.1 | JP-3 | 104222010 | 573 |
| 60 | *364JPZ | 1.25 | 575 | 67 | JPZ-2P | 104222011 | 70 |
| 75 | *364JPZ | 1.15 | 575 | 81.9 | JPZ-2P | 104222012 | 903 |
PUMP END KITS 3600RPM
PACKING145-184JM4.50.875JP-19645110045A1157NP-4.57.1255235.25NPTPACKING182-184JP4.50.875JP-19647110045A2256NP-4.56.4374034.13
| Series | Connection | Seal Type | Frame | AK | Shaft Dia | Motor Code | Order No | Description | Kit Trim | WT | HP | Trim Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A1 x 1.5 – 7 | NPT | MECHANICAL | 145-184JM | 4.5 | 0.875 | JM-1 | 9645210045 | A1157NM-4.5 | 7.125 | 45 | 3 | 5.25 |
| 5 | 6.13 | |||||||||||
| 7.5 | 7.13 | |||||||||||
| 5 | 6.13 | |||||||||||
| 7.5 | 7.13 | |||||||||||
| A1.5 x 2 – 6 | NPT | MECHANICAL | 182-184JM | 4.5 | 0.875 | JM-1 | 9646210045 | A1526NM-4.5 | 6.437 | 36 | 5 | 5.44 |
| 7.5 | 6.00 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JM-2 | 9646210085 | A1526NM-8.5 | 6.437 | 40 | 7.5 | 6.00 | |||
| 10 | 6.44 | |||||||||||
| PACKING | 182-184JM | 4.5 | 0.875 | JP-1 | 9646110045 | A1526NP-4.5 | 6.437 | 41 | 5 | 5.44 | ||
| 7.5 | 6.00 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JP-2 | 9646110085 | A1526NP-8.5 | 6.437 | 55 | 7.5 | 6.00 | |||
| 10 | 6.44 | |||||||||||
| A2 x 2.5 – 6 | NPT | MECHANICAL | 145-184JM | 4.5 | 0.875 | JM-1 | 9647210045 | A2256NM-4.5 | 6.437 | 33 | 3 | 4.13 |
| 5 | 4.88 | |||||||||||
| 7.5 | 5.5 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JM-2 | 9647210085 | A2256NM-8.5 | 6.437 | 36 | 7.5 | 5.50 | |||
| 10 | 6.00 | |||||||||||
| 15 | 6.41 | |||||||||||
| FLG | PACKING | 145-184JM | 4.5 | 0.875 | JM-1 | 9647220045 | A2256FM-4.5 | 6.437 | 43 | 3 | 4.13 | |
| 5 | 4.88 | |||||||||||
| 7.5 | 5.5 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JM-2 | 9647220085 | A2256FM-8.5 | 6.437 | 43 | 7.5 | 5.50 | |||
| 10 | 6.00 | |||||||||||
| 15 | 6.41 | |||||||||||
| 5 | 4.88 | |||||||||||
| 7.5 | 5.50 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JP-2 | 9647110085 | A2256NP-8.5 | 6.437 | 51 | 7.5 | 5.50 | |||
| 10 | 6.00 | |||||||||||
| 15 | 6.41 | |||||||||||
| FLG | PACKING | 145-184JM | 4.5 | 0.875 | JM-1 | 9647120045 | A2256FP-4.5 | 6.437 | 51 | 3 | 4.13 | |
| 5 | 4.88 | |||||||||||
| 7.5 | 5.5 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JM-2 | 9647120085 | A2256FP-8.5 | 6.437 | 59 | 7.5 | 5.50 | |||
| 10 | 6.00 | |||||||||||
| 15 | 6.41 | |||||||||||
| A2 x 3 – 8 | NPT | MECHANICAL | 184JM | 4.5 | 0.875 | JM-1 | 9650210045 | A238NM-4.5A | 7.938 | 47 | 7.5 | 5.88 |
| 213-215JM | 8.5 | 0.875 | JM-2 | 9650210085 | A238NM-8.5A | 7.25 | 50 | 7.5 | 5.88 | |||
| 10 | 6.50 | |||||||||||
| 15 | 7.25 | |||||||||||
| 254-256JM | 8.5 | 1.25 | JM-3 | 9650211085 | A238NM-8.5B | 7.94 | 60 | 20 | 7.94 | |||
| FLG | MECHANICAL | 184JM | 4.5 | 0.875 | JM-1 | 9650220045 | A238FM-4.5A | 7.938 | 65 | 7.5 | 5.88 | |
| 213-215JM | 8.5 | 0.875 | JM-2 | 9650220085 | A238FM-8.5A | 7.25 | 66 | 7.5 | 5.50 | |||
| 10 | 6.00 | |||||||||||
| 15 | 6.41 | |||||||||||
| 254-256JM | 8.5 | 1.25 | JM-3 | 9650221085 | A238FM-8.5B | 7.94 | 76 | 20 | 7.94 | |||
| NPT | PACKING | 184JP | 4.5 | 0.875 | JP-1 | 9650110045 | A238NP-4.5 | 7.25 | 68 | 7.5 | 5.88 | |
| 213-286JP | 8.5 | 0.875 | JP-2 | 9650110085 | A238NP-8.5 | 7.94 | 70 | 7.5 | 5.88 | |||
| 10 | 6.50 | |||||||||||
| 15 | 7.25 | |||||||||||
| 20 | 7.94 | |||||||||||
| FLG | PACKING | 184JP | 4.5 | 0.875 | JP-1 | 9650120045 | A238FP-4.5 | 7.25 | 77 | 7.5 | 7.25 |
PUMP END KITS 3600RPM
| Series | Connection | Seal Type | Frame | AK | Shaft Dia | Motor Code | Order No | Description | Kit Trim | WT | HP | Trim Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A2 x 3 – 8 | FLG | PACKING | 213-256JP | 8.5 | 1.250 | JP-2 | 9650120085 | A238FP-8.5 | 7.94 | 86 | 7.5 | 7.25 |
| 10 | 6.50 | |||||||||||
| 15 | 7.25 | |||||||||||
| 20 | 7.94 | |||||||||||
| A2 x 3 – 10 | NPT | MECHANICAL | 184JM | 4.5 | .875 | JM1 | 9651210045 | A2310NM-4.5 | 9 | 87 | 7.5 | 6.75 |
| 213-215JM | 8.5 | 0.875 | JM-2 | 9651210085 | A2310NM-8.5A | 8.25 | 92 | 7.5 | 6.75 | |||
| 10 | 7.38 | |||||||||||
| 15 | 8.25 | |||||||||||
| 254-256JM | 8.5 | 1.25 | JM-3 | 9651211085 | A2310NM-8.5B | 9 | 96 | 20 | 9.00 | |||
| FLG | MECHANICAL | 184JM | 4.5 | .875 | JM1 | 9651220045 | A2310FM-4.5 | 9 | 80 | 7.5 | 6.75 | |
| 213-215JM | 8.5 | 0.875 | JM-2 | 9651220085 | A2310FM-8.5A | 8.25 | 85 | 7.5 | 6.75 | |||
| 10 | 7.38 | |||||||||||
| 15 | 8.25 | |||||||||||
| 254-256JM | 8.5 | 1.25 | JM-3 | 9651221085 | A2310FM-8.5B | 9 | 88 | 20 | 9.00 | |||
| NPT | PACKING | 184JP | 4.5 | 0.875 | JP-1 | 9651110045 | A2310NP-4.5 | 6.75 | 99 | 7.5 | 6.75 | |
| 213-215JP | 8.5 | 1.25 | JP-2 | 9651110085 | A2310NP-8.5 | 9 | 120 | 7.5 | 6.75 | |||
| 10 | 7.38 | |||||||||||
| 15 | 8.25 | |||||||||||
| 20 | 9.00 | |||||||||||
| FLG | PACKING | 184JP | 4.5 | 0.875 | JP-1 | 9651120045 | A2310FP-4.5 | 6.75 | 91 | 7.5 | 6.75 | |
| 213-215JP | 8.5 | 1.25 | JP-2 | 9651120085 | A2310FP-8.5 | 9 | 113 | 7.5 | 6.75 | |||
| 10 | 7.38 | |||||||||||
| 15 | 8.25 | |||||||||||
| 20 | 9.00 | |||||||||||
| A 2.5 x 3 – 6 | NPT | MECHANICAL | 145-184JM | 4.5 | 0.875 | JM-1 | 9653210045 | A2536NM-4.5 | 6.437 | 41 | 3 | 3.69 |
| 5 | 4.25 | |||||||||||
| 7.5 | 4.81 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JM-2 | 9653210085 | A2536NM-8.5 | 6.437 | 45 | 7.5 | 4.81 | |||
| 10 | 5.38 | |||||||||||
| 15 | 6.44 | |||||||||||
| FLG | MECHANICAL | 145-184JM | 4.5 | 0.875 | JM-1 | 9653220045 | A2536FM-4.5 | 6.437 | 55 | 3 | 3.69 | |
| 5 | 4.25 | |||||||||||
| 7.5 | 4.81 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JM-2 | 9653220085 | A2536FM-8.5 | 6.437 | 58 | 7.5 | 4.81 | |||
| 10 | 5.38 | |||||||||||
| 15 | 6.44 | |||||||||||
| NPT | PACKING | 145-184JP | 4.5 | 0.875 | JP-1 | 9653110045 | A2536NP-4.5 | 4.813 | 49 | 3 | 3.69 | |
| 5 | 4.25 | |||||||||||
| 7.5 | 4.81 | |||||||||||
| 213-215JP | 8.5 | 1.25 | JP-2 | 9653110085 | A2536NP-8.5 | 6.437 | 60 | 7.5 | 4.81 | |||
| 10 | 5.38 | |||||||||||
| 15 | 6.44 | |||||||||||
| FLG | PACKING | 145-184JP | 4.5 | 0.875 | JP-1 | 9653120045 | A2536FP-4.5 | 4.813 | 63 | 3 | 3.69 | |
| 5 | 4.25 | |||||||||||
| 7.5 | 4.81 | |||||||||||
| 213-215JP | 8.5 | 1.25 | JP-2 | 9653120085 | A2536FP-8.5 | 6.437 | 74 | 7.5 | 4.81 | |||
| 10 | 5.38 | |||||||||||
| 15 | 6.44 |
PUMP END KITS 3600RPM
284-326JP12.51.25JP-39654110125A25410NP-12.59151258.00
| Series | Connection | Seal Type | Frame | AK | Shaft Dia | Motor Code | Order No | Description | Kit Trim | WT | HP | Trim Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A2.5 x 4 – 10 | FLG | MECHANICAL | 284-324JM | 12.5 | 1.25 | JM-3 | 9654220125 | A25410FM-12.5 | 9 | 131 | 30 | 8.38 |
| 40 | 9.00 | |||||||||||
| NPT | PACKING | 254-256JP | 8.5 | 1.25 | JP-2 | 9654110085 | A25410NP-8.5 | 8 | 141 | 20 | 7.38 | |
| 25 | 8.00 | |||||||||||
| 284-326JP | 12.5 | 1.25 | JP-3 | 9654110125 | A25410NP-12.5 | 9 | 151 | 25 | 8.00 | |||
| 30 | 8.38 | |||||||||||
| 40 | 9.00 | |||||||||||
| FLG | PACKING | 254-256JP | 8.5 | 1.25 | JP-2 | 9654120085 | A25410FP-8.5 | 8 | 140 | 20 | 7.38 | |
| 25 | 8.00 | |||||||||||
| 30 | 8.38 | |||||||||||
| 40 | 9.00 | |||||||||||
| A3 x 4 – 6 | NPT | PACKING | 182-184JM | 4.5 | 0.875 | JM-1 | 9648210045 | A346NM-4.5 | 6.437 | 61 | 5 | 4.38 |
| 7.5 | 5.06 | |||||||||||
| 213-215JM | 8.5 | 0.875 | JP-2 | 9648210085 | A346NM-8.5A | 6.437 | 8 | 7.5 | 5.06 | |||
| 10 | 5.31 | |||||||||||
| 15 | 5.94 | |||||||||||
| 254-256JM | 8.5 | 1.25 | JM-3 | 9648211085 | A346NM-8.5B | 6.437 | 61 | 20 | 6.44 | |||
| FLG | MECHANICAL | 184JM | 4.5 | 0.875 | JM-1 | 9648220045 | A346FM-4.5 | 6.437 | 64 | 75 | 5.06 | |
| 213-215JM | 8.5 | 0.875 | JM-2 | 9648220085 | A346FM-8.5A | 6.437 | 67 | 7.5 | 5.06 | |||
| 10 | 5.31 | |||||||||||
| 15 | 5.94 | |||||||||||
| 254-256JM | 8.5 | 1.25 | JM-1 | 9648221085 | A346FM-8.5B | 6.437 | 70 | 20 | 6.44 | |||
| NPT | PACKING | 184JP | 4.5 | 0.875 | JP-1 | 9648110045 | A346NP-4.5 | 6.437 | 62 | 75 | 6.44 | |
| 213-256JP | 8.5 | 1.25 | JP-2 | 9648110085 | A346NP-8.5 | 6.437 | 73 | 7.5 | 5.06 | |||
| 10 | 5.31 | |||||||||||
| 15 | 5.94 | |||||||||||
| 20 | 6.44 | |||||||||||
| FLG | PACKING | 184JP | 4.5 | 0.875 | JP-1 | 9648120045 | A346FP-4.5 | 6.437 | 71 | 7.5 | 5.06 | |
| 213-256JP | 8.5 | 1.25 | JP-2 | 9648120085 | A346FP-8.5 | 6.437 | 81 | 7.5 | 5.06 | |||
| 10 | 5.31 | |||||||||||
| 15 | 5.94 | |||||||||||
| 20 | 6.44 | |||||||||||
| A3 x 4 – 9 | NPT | MECHANICAL | 284-365JM | 12.5 | 1.25 | JM-4 | 9649210125 | A349NM-12.5 | 9 | 114 | 30 | 6.88 |
| 40 | 731 | |||||||||||
| 50 | 7.88 | |||||||||||
| 60 | 8.56 | |||||||||||
| 75 | 9.00 | |||||||||||
| FLG | MECHANICAL | 284-365JM | 12.5 | 1.25 | JM-4 | 9649220125 | A349FM-12.5 | 9 | 113 | 30 | 6.88 | |
| 40 | 731 | |||||||||||
| 50 | 7.88 | |||||||||||
| 60 | 8.56 | |||||||||||
| 75 | 9.00 | |||||||||||
| NPT | PACKING | 284-326JP | 12.5 | 1.25 | JM-3 | 9649110125 | A349NP-12.5 | 9 | 119 | 30 | 6.88 | |
| 40 | 731 | |||||||||||
| 50 | 7.88 | |||||||||||
| *364JPZ | JPZ2P | 60 | 8.56 | |||||||||
| 75 | 9.00 | |||||||||||
| FLG | PACKING | 284-326JP | 12.5 | 1.25 | JM-3 | 9649120125 | A349FP-12.5 | 9 | 118 | 30 | 6.88 | |
| 40 | 731 | |||||||||||
| 50 | 7.88 | |||||||||||
| *364JPZ | JPZ2P | 60 | 8.56 | |||||||||
| 75 | 9.00 |
INSTALLING MOTOR ON PUMP ENDS
*JPZ Frame motors are Franklin specified custom shaft versions
Pump end kits are shipped with maximum diameter impeller for the largest horsepower rating within the range of motor frame sizes that pump kit is intended to fit. Any impeller trimming and re-balancing is the responsibility of the assembler.
If you purchase a pump end kit without a factory supplied motor, you are responsible for ensuring that the motor driver has a
sufficient horsepower and service factor rating to adequately handle the pump horsepower load across the spectrum of the operating curve.
JM FRAME MOTOR SPECIFICATIONS 1800RPM
| 1-Phase JM TEFC Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 3.0 | 184JM | 1.15 | 230 | 17.3 | JM-1 | 104228616 | 80 |
| 5.0 | 215JM | 1.15 | 230 | 23 | JM-2 | 104228603 | 90 |
| 7.5 | 215JM | 1.15 | 230 | 33. | JM-2 | 104228021 | 210 |
| 10 | 215JM | 1.15 | 230 | 43 | JM-2 | 104228022 | 210 |
| 3-Phase JM TEFC Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 1.0 | 143JM | 1.15 | 208-230/460 | 3.1-3.4/1.7 | JM-1 | 104228218 | 40 |
| 1.5 | 143JM | 1.15 | 208-230/460 | 4.5-4.8/2.4 | JM-1 | 104228217 | 44 |
| 2.0 | 145JM | 1.15 | 208-230/460 | 6.6-6.4/3.2 | JM-1 | 104228215 | 50 |
| 3.0 | 182JM | 1.15 | 208-230/460 | 9-9.2/4.6 | JM-1 | 104228219 | 76 |
| 5.0 | 184JM | 1.15 | 208-230/460 | 13.6-15.3/7.7 | JM-1 | 104228220 | 70 |
| 7.5 | 213JM | 1.15 | 208-230/460 | 20-21.6/10.8 | JM-2 | 104228205 | 134 |
| 10.0 | 215JM | 1.15 | 208-230/460 | 25.4-27.6/13.9 | JM-2 | 104228206 | 165 |
| 15.0 | 254JM | 1.15 | 208-230/460 | 38-41.6/20.8 | JM-3 | 104228207 | 268 |
| 3-Phase JM T.E.F.C. Motor | |||||||
|---|---|---|---|---|---|---|---|
| HP | Frame | S.F. | Volts | S.F.A. | Motor Code | Motor # | Wt. |
| 5.0 | 184JM | 1.15 | 575 | 6 | JM-1 | 104242002 | 88 |
| 7.5 | 213JM | 1.15 | 575 | 8.6 | JM-2 | 104242003 | 88 |
| 10.0 | 215JM | 1.15 | 575 | 11.3 | JM-2 | 104242004 | 139 |
| 15.0 | 254JM | 1.15 | 575 | 16.7 | JM-3 | 104242004 | 280 |
PUMP END KITS 1800RPM
| Series | Connection | Seal Type | Frame | AK | Shaft Dia | Motor Code | Order No | Description | Kit Trim | WT | HP | Trim Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL1 x 1.5 – 7 | NPT | MECHANICAL | 143JM | 4.5 | 0.875 | JM-1 | 9645210045 | A1157NM-4.5 | 7.125 | 45 | 1 | 7.125 |
| AL1.5 x 2 – 6 | NPT | MECHANICAL | 143JM | 4.5 | 0.875 | JM-1 | 9646210045 | A1526NM-4.5 | 6.437 | 36 | 1 | 6 |
| AL2 x 2.5 – 6 | NPT | MECHANICAL | 143-145JM | 4.5 | 0.875 | JM-1 | 9647210045 | A2256NM-4.5 | 6.437 | 33 | 1 | 5.5 |
| 1.5 | 6 | |||||||||||
| 2 | 6.437 | |||||||||||
| FLG | MECHANICAL | 143-145JM | 4.5 | 0.875 | JM-1 | 9647220045 | A2256FM-4.5 | 6.437 | 43 | 1 | 5.5 | |
| 1.5 | 6 | |||||||||||
| 2 | 6.437 | |||||||||||
| AL2 x 3 – 8 | NPT | MECHANICAL | 143-184JM | 4.5 | 0.875 | JM-1 | 9650210045 | A238NM-4.5A | 7.938 | 50 | 1 | 5.875 |
| 1.5 | 6.5 | |||||||||||
| 2 | 7.25 | |||||||||||
| 3 | 7.94 | |||||||||||
| FLG | MECHANICAL | 143-184JM | 4.5 | 0.875 | JM-1 | 9650220045 | A238FM-4.5A | 7.938 | 65 | 1 | 5.875 | |
| 1.5 | 6.5 | |||||||||||
| 2 | 7.25 | |||||||||||
| 3 | 7.94 | |||||||||||
| AL2 x 3 – 10 | NPT | MECHANICAL | 143-184JM | 4.5 | 0.875 | JM-1 | 9651210045 | A2310NM-4.5 | 9.0 | 87 | 1 | 6.75 |
| 1.5 | 7.375 | |||||||||||
| 2 | 8.25 | |||||||||||
| 3 | 9 | |||||||||||
| FLG | MECHANICAL | 143-184JM | 4.5 | 0.875 | JM-1 | 9651220045 | A2310FM-4.5 | 9.0 | 80 | 1 | 6.75 | |
| 1.5 | 7.375 | |||||||||||
| 2 | 8.25 | |||||||||||
| 3 | 9 | |||||||||||
| AL2.5 x 3 – 6 | NPT | MECHANICAL | 143-145JM | 4.5 | 0.875 | JM-1 | 9653210045 | A2536NM-4.5 | 6.437 | 41 | 1 | 4.8113 |
| 1.5 | 5.375 | |||||||||||
| 2 | 6.437 | |||||||||||
| FLG | MECHANICAL | 143-145JM | 4.5 | 0.875 | JM-1 | 9653220045 | A2536FM-4.5 | 6.437 | 55 | 1 | 4.8113 | |
| 1.5 | 5.375 | |||||||||||
| 2 | 6.437 |
PUMP END KITS 1800RPM
FLGMECHANICAL143-184JM4.50.8745JM-19648220045A346FM-4.56.4376415.062
| Series | Connection | Seal Type | Frame | AK | Shaft Dia | Motor Code | Order No | Description | Kit Trim | WT | HP | Trim Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL2.5 x 4 – 10 | NPT | MECHANICAL | 182-184JM | 4.5 | 0.8745 | JM-1 | 9654210045 | AL25410NM-4.5 | 9.0 | 112 | 3 | 7.38 |
| 3 | 8 | |||||||||||
| 5 | 8.375 | |||||||||||
| 5 | 9 | |||||||||||
| 215JM | 8.5 | 0.8745 | JM-2 | 9654210085 | A25410NM-8.5A | 9.0 | 116 | 5 | 8.375 | |||
| 5 | 9 | |||||||||||
| FLG | MECHANICAL | 182-184JM | 4.5 | 0.8745 | JM-1 | 9654220045 | AL25410-FM-4.5 | 9.0 | 110 | 3 | 7.38 | |
| 3 | 8 | |||||||||||
| 5 | 8.375 | |||||||||||
| 5 | 9 | |||||||||||
| AL3 x 4 – 6 | NPT | MECHANICAL | 143-184JM | 4.5 | 0.8745 | JM-1 | 9648210045 | A346NM-4.5 | 6.437 | 50 | 1 | 5.062 |
| 1.5 | 5.312 | |||||||||||
| 2 | 5.938 | |||||||||||
| 3 | 6.437 | |||||||||||
| 1.5 | 5.312 | |||||||||||
| 2 | 5.938 | |||||||||||
| 3 | 6.437 | |||||||||||
| A346FM-4.5 | NPT | MECHANICAL | 184JM | 4.5 | 0.8745 | JM-1 | 9649210045 | AL349NM-4.5 | 9.0 | – | 5 | 6.875 |
| 5 | 7.3125 | |||||||||||
| 213-215JM | 8.5 | 0.8745 | JM-2 | 9649210085 | AL349NM-8.5 | 9.0 | – | 7.5 | 7.875 | |||
| 7.5 | 8.5625 | |||||||||||
| 10 | 9 | |||||||||||
| FLG | MECHANICAL | 184JM | 4.5 | 0.8745 | JM-1 | 9649220045 | AL349FM-4.5 | 9.0 | – | 5 | 6.875 | |
| 5 | 7.3125 | |||||||||||
| 213-215JM | 8.5 | 0.8745 | JM-2 | 9649220085 | AL349FM-8.5 | 9.0 | – | 7.5 | 7.875 | |||
| 7.5 | 8.5625 | |||||||||||
| 10 | 9 | |||||||||||
| AL3 x 4 – 10 | NPT | MECHANICAL | 184JM | 4.5 | 0.875 | JM-1 | 9658220045 | AL3410FM-4.5 | 9.75 | 117 | 5 | 8.0 |
| 213-215JM | 8.5 | 0.875 | JM-2 | 9658220085 | A3410FM-8.5A | 9.75 | 121 | 5 | 8.0 | |||
| 7.5 | 9.25 | |||||||||||
| 10 | 9.75 | |||||||||||
| 254-256JM | 8.5 | 1.25 | JM-3 | 9658221085 | A3410FM-8.5B | 10.25 | 125 | 15 | 10.25 |
INSTALLING MOTOR ON PUMP ENDS
Pump end kits are shipped with maximum diameter impeller for the largest horsepower rating within the range of motor frame sizes that pump kit is intended to fit. Any impeller trimming and re-balancing is the responsibility of the assembler.
If you purchase a pump end kit without a factory supplied motor, you are responsible for ensuring that the motor driver has a sufficient horsepower and service factor rating to adequately handle the pump horsepower load across the spectrum of the operating curve.
| Repair Parts | A1x1.5-7 (3600 RPM) | Packing Seal Construction | |
|---|---|---|---|
| A1x1.5-7 (1800 RPM) | |||
| Figure No. | Part Description | Repair No. | Materials of Construction |
| 1 | Volute Case (NPT) w/plugs | 305563001 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 3 hp 2-pole, 5.250″ trim (.875 Bore) | 305563002 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 5 hp 2-pole, 6.125″ trim (.875 Bore) | 305563003 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 7.5 hp 2-pole, 1hp 4-pole 7.125″ trim (.875 Bore) | 305563004 | Cast iron, ASTM-A48 CL30 |
| 3 | Motor Bracket | 305563005 | Cast iron, ASTM-A48 CL30 |
| 12 | Sleeve, Mechanical Seal | 305463227 | 416 stainless steel |
| 35 | Key, Impeller Shaft | 305463001 | 301 stainless steel |
| 90 | Mechanical Shaft Seal | 305463002 | Carbon/ceramic/nitrile/316 stainless steel |
| 100A | O-Ring, Volute Case (2-pack) | 305463226 | Nitrile |
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel |
| 503 | Slinger | 305450007 | Neoprene |
| 510 | Hex Cap Screw, Impeller | 305463006 | 410 stainless steel |
| 520 | Washer, Impeller | 305447009 | 300 series stainless steel |
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | Zinc-plated steel |
| 530B | Hex Cap Screw, Volute Case (12 Pack) | 305463010 | Zinc-plated steel |
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 3 – 7.5HP | 1-HP | 143-184JM | 4.5 | 0.875 | JM-1 |
Refer to motor specifications page for replacement information
Motor Frame can be determined by the pump order number and or motor nameplate
Al1.5×2-6 (3600 RPM)
| Repair Parts | Al1.5×2-6 (3600 RPM) | Packing Seal Construction | |
|---|---|---|---|
| Al1.5×2-6 (1800 RPM) | |||
| Figure No. | Part Description | Repair No. | Materials of Construction |
| 1 | Volute Case (NPT) w/plugs | 305563001 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 3 hp 2-pole, 5.250″ trim (.875 Bore) | 305563002 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 5 hp 2-pole, 6.125″ trim (.875 Bore) | 305563003 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 7.5 hp 2-pole, 1hp 4-pole 7.125″ trim (.875 Bore) | 305563004 | Cast iron, ASTM-A48 CL30 |
| 3 | Motor Bracket | 305563005 | Cast iron, ASTM-A48 CL30 |
| 12 | Sleeve, Mechanical Seal | 305463227 | 416 stainless steel |
| 35 | Key, Impeller Shaft | 305463001 | 301 stainless steel |
| 90 | Mechanical Shaft Seal | 305463002 | Carbon/ceramic/nitrile/316 stainless steel |
| 100A | O-Ring, Volute Case (2-pack) | 305463226 | Nitrile |
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel |
| 503 | Slinger | 305450007 | Neoprene |
| 510 | Hex Cap Screw, Impeller | 305463006 | 410 stainless steel |
| 520 | Washer, Impeller | 305447009 | 300 series stainless steel |
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | Zinc-plated steel |
| 530B | Hex Cap Screw, Volute Case (12 Pack) | 305463010 | Zinc-plated steel |
MOTOR FITMENT
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 3 – 7.5HP | 1-HP | 143-184JM | 4.5 | 0.875 | JM-1 |
| 7.5 – 10HP | – | 213-215JP | 8.5 | 1.25 | JM-2 |
Refer to motor specifications page for replacement information
Motor Frame can be determined by the pump order number and or motor nameplate
A1.5×2-6 (3600 RPM)
| Repair Parts | A1.5×2-6 (3600 RPM) [Discontinued] | Packing Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| 1 | Volute Case (NPT) w/plugs | 305566001 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 5 hp 5.438″ trim (.875 Bore) | 305566002 | N/A | 316 stainless steel | |||
| 2 | Impeller, 7.5 1ph 6.000″ trim (1.250 Bore) | N/A | 305566005 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 7.5 hp 3ph 6.000″ trim (.875 Bore) | 305566003 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 10 hp 6.437″ trim (1.250 Bore) | N/A | 305566006 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Bracket | 305564006 | 305564009 | Cast iron, ASTM-A48 CL30 | |||
| 11 | Packing Seal Box | 305447004 | 305448005 | Cast iron, ASTM-A48 CL30 | |||
| 12 | Sleeve, Shaft | 305448006 | 305464010 | 416 stainless steel | |||
| 13 | Packing Ring Set | 305447006 | 305448009 | Graphite/cotton | |||
| 14 | Lantern Ring | N/A | 305448010 | Teflon | |||
| 15 | Packing Gland (2-Piece) | 305447007 | 305448011 | 316 stainless steel | |||
| 35 | Key, Impeller Shaft | 305463001 | 305448012 | 301 stainless steel | |||
| 100A | O-Ring, Volute Case (2-pack) | 305463004 | Nitrile | ||||
| 100B | O-Ring, Seal Box (2-pack) | 305463003 | 305463013 | Nitrile | |||
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel | ||||
| 502 | Grease fitting | N/A | 305463015 | Zinc-plated steel | |||
| 503 | Slinger | 305450007 | 305447008 | Neoprene | |||
| 510 | Hex Cap Screw, Impeller | 305463006 | 305463024 | 410 stainless steel/17-4 stainless steel | |||
| 520 | Washer, Impeller | 305447009 | 305450015 | 18-8 stainless steel | |||
| 529 | Nut, Packing Gland (4-pack) | 305463007 | 18-8 stainless steel | ||||
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | 305463016 | Zinc-plated steel | |||
| 530B | Stud, Volute Case (4 Pack) | 305463229 | Zinc-plated steel | ||||
| 530C | Lockwashers, Volue Case (6 Pack) | 305463135 | Zinc-plated steel | ||||
| 530D | Nut, Volute Case | 305463033 | Zinc-plated steel | ||||
| 530E | Hex Cap Screw, Seal Box (12-pack) | 305463010 | Zinc-plated steel | ||||
| 531 | Stud, Packing Gland (4-pack) | 305463008 | Zinc-plated steel | ||||
MOTOR FITMENT
| Figure No. | 3600 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|
| 200 | 5 – 7.5HP | 145-184JP | 4.5 | 0.875 | JP-1 |
| 7.5 – 10HP | 213-215JP | 8.5 | 1.25 | JP-2 |
| Repair Parts | A2X3-10 (3600 RPM) [Discontinued] | Mechanical Seal Construction | ||||
|---|---|---|---|---|---|---|
| AL2X3-10 (1800 RPM) | ||||||
| Sealing | Figure No. | Part Description | Repair No. | Materials of Construction | ||
| 4.5AK Models | 8.5AK Models | |||||
| Mecahnical | 1 | Volute Case, NPT w/plugs | 305411923 | Cast iron, ASTM-A48 CL30 | ||
| Not Shown | Volute Case, Flange w/plugs | 305411907 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 3 hp 4-pole, 9.00″ trim (.875″ bore | 305411953 | NA | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller, 7.5 hp 2-pole, 1 hp 4-pole, 6.75″ trim (.875″ bore) | 305411924 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 10 hp 2-pole, 1.5 hp 4-pole, 7.38″ trim (.875″ bore) | 305411925 | NA | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller, 15 hp 2-pole, 2 hp 4-pole, 8.25″ trim (.875″ bore) | 305411926 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 20 hp 2-pole, 9.00″ trim (1.250″ bore) | 305411927 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Bracket, 4.5AK | 305411928 | NA | Cast iron, ASTM-A48 CL30 | ||
| 3 | Motor Bracket, 7.5-15 hp | NA | 305411929 | Cast iron, ASTM-A48 CL30 | ||
| 3 | Motor Bracket, 20 hp | NA | 305411930 | Cast iron, ASTM-A48 CL30 | ||
| 12 | Shaft Sleeve, 7.5-15 hp | 305463248 | 416 stainless steel | |||
| 12 | Shaft Sleeve, 20 hp | 305463001 | 301 stainless steel | |||
| 35 | Key, Impeller Shaft, 20 hp | NA | 305463150 | 316 stainless steel | ||
| 90 | Mechanical Shaft Seal, 3-15 hp | 305463002 | Carbon/ceramic/nitrile/316 stainless steel | |||
| 90 | Mechanical Shaft Seal,20 hp | NA | 305463012 | Carbon/ceramic/nitrile/316 stainless steel | ||
| 100A | O-ring, Volute Case, 3-10 hp (2 pack) | 305418925 | nitrile | |||
| 500A | Pipe Plug (4 pack) | 305463175 | Zinc-plated steel | |||
| 500A | Pipe Plug (4 pack) | 305463175 | Zinc-plated steel | |||
| 503 | Water Slinger | 305450007 | 305447008 | Neoprene | ||
| 503 | Water Slinger , 20 hp | NA | 305447008 | Neoprene | ||
| 510 | Hex Cap Screw, Impeller | 305463006 | 410 stainless steel | |||
| 510 | Hex Cap Screw, Impeller , 20 hp | NA | 305463024 | 410 stainless steel | ||
| 520 | Washer, Impeller | 305447009 | 300 Series stainless steel | |||
| 520 | Washer, Impeller, 20 hp | NA | 305463270 | 416 stainless steel | ||
| 530A | Hex Cap Screw, Motor Bracket, 7.5-15 hp (12 pack) | 305463053 | 305463053 | Zinc-plated steel | ||
| 530A | Hex Cap Screw, Motor Bracket, 20 hp (12 pack) | NA | 305463016 | Zinc-plated steel | ||
| 530B | Hex Cap Screw, Volute Case (4 pack) | 305463010 | Zinc-plated steel | |||
MOTOR FITMENT
| Figure No. | 3600RPM | 1800RPM | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 7.5HP | 1 – 3HP | 143-184JM | 4.5 | 0.875 | JM-1 |
| 7.5 – 15HP | – | 213-215JM | 8.5 | 1.25 | JM-2 | |
| 20HP | – | 254-256JM | 8.5 | 1.25 | JM-3 |
A2X3-10 (3600 RPM) [Discontinued]
<!—->
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 4.5AK Models | 8.5AK Models | ||||||||
| 1 | Volute Case, NPT w/plugs | 305411923 | Cast iron, ASTM-A48 CL30 | ||||||
| not shown | Volute Case, Flange w/plugs | 305411907 | Cast iron, ASTM-A48 CL30 | ||||||
| 2 | Impeller, 7-1/2 hp 6.750″ trim (.875 bore) | 305411924 | 305411931 | Cast iron, ASTM-A48 CL30 | |||||
| 2 | Impeller, 10 hp 7.375″ trim (1.250 bore) | N/A | 305411932 | Cast iron, ASTM-A48 CL30 | |||||
| 2 | Impeller, 10 hp 6.437″ trim (1.250 Bore) | N/A | 305411933 | Cast iron, ASTM-A48 CL30 | |||||
| 2 | Impeller, 20 hp 9.000″ trim (1.250 bore) | N/A | 305411927 | Cast iron, ASTM-A48 CL30 | |||||
| 3 | Motor Backet | 305411934 | 305412902 | Cast iron, ASTM-A48 CL30 | |||||
| 11 | Packing Seal Box | 305447004 | 305448005 | Cast iron, ASTM-A48 CL30 | |||||
| 12 | Sleeve, Shaft | 305448006 | 305464010 | 416 stainless steel | |||||
| 13 | Packing Ring Set | 305447006 | 305448009 | Graphite/cotton | |||||
| 14 | Lantern Ring | N/A | 305448010 | Teflon | |||||
| 15 | Packing Gland (2-Piece) | 305447007 | 305448011 | 316 stainless steel | |||||
| 35 | Key, Impeller Shaft | 305463001 | 305463150 | 301 stainless steel | |||||
| 100 | O-Ring, Volute Case (2-pack) | 305463003 | Nitrile | Nitrile | |||||
| 100A | O-Ring, Volute Case (15hp-20hp) 2-pack | 305418925 | Nitrile | ||||||
| 500A | Pipe Plug (4-pack) | 305463175 | Zinc-plated steel | ||||||
| 502 | Grease Fitting (2-pack) | N/A | 305463015 | Zinc-plated steel | |||||
| 503 | Water Slinger | 305450007 | 305447008 | Neoprene | |||||
| 510 | Hex Cap Screw, Impeller | 305463006 | 305463024 | 410 stainless steel/17-4 stainless steel | |||||
| 520 | Washer, Impeller | 305447009 | 305463270 | 416 stainless steel | |||||
| 529 | Nut, Packing Gland (4-pack) | 305463007 | 18-8 stainless steel | ||||||
| 530A | Hex Cap Screw, Motor Bracket | 305463010 | 305463016 | Zinc-plated steel | |||||
| 530B | Hex Cap Screw, Volute Case (12-Pack) | 305463010 | Zinc-plated steel | ||||||
| 530C | Hex Cap Screw, Seal Box (12-Pack) | 305463010 | Zinc-plated steel | ||||||
| 531 | Stud, Packing Gland (4-pack) | 305463008 | Zinc-plated steel | ||||||
MOTOR FITMENT
| Figure No. | 3600RPM | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|
| 200 | 7.5HP | 145-184JP | 4.5 | 0.875 | JP-1 |
| 7.5 – 20HP | 213-256JP | 8.5 | 1.25 | JP-2 |
| Repair Parts | A2x2.5-6 (3600 RPM) | Mechanical Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| AL2x2.5-6 (1800 RPM) | |||||||
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| 1 | Volute Case (NPT) w/plugs | 305564001 | Cast iron, ASTM-A48 CL30 | ||||
| not shown | Volute Case, Flange w/plugs | 305564010 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 3 hp 2-pole, 4.125″ trim (.875 Bore) | 305564002 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 5 hp 2-pole, 4.875″ trim (.875 Bore) | 305564003 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 7.5 hp 2-pole, 1 hp 4-pole, 5.500″ trim (.875 Bore) | 305564004 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 10 hp 2-pole, 1.5 hp 4-pole, 6.000″ trim (.875 Bore) | 305564007 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 15 hp 2-pole, 2 hp 4-pole, 6.413″ trim (.875 Bore) | 305564013 | Cast iron, ASTM-A48 CL30 | ||||
| 3 | Motor Bracket | 305564005 | 305564008 | Cast iron, ASTM-A48 CL30 | |||
| 12 | Sleeve, Mechanical Seal | 305463227 | 416 stainless steel | ||||
| 35 | Key, Impeller Shaft | 305463001 | 301 stainless steel | ||||
| 90 | Mechanical Shaft Seal | 305463002 | Carbon/ceramic/nitrile/316 stainless steel | ||||
| 100A | O-Ring, Volute Case (2-pack) | 305463004 | Nitrile | ||||
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel | ||||
| 503 | Slinger | 305450007 | Neoprene | ||||
| 510 | Hex Cap Screw, Impeller | 305463006 | 410 stainless steel | ||||
| 520 | Washer, Impeller | 305463228 | 300 series stainless steel | ||||
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | 305463026 | Zinc-plated steel | |||
| 530B | Hex Cap Screw, Volute Case (12-Pack) | 305463010 | Zinc-plated steel | ||||
| 530C | Studs, Volute Case (4 Pack) | 305463229 | Zinc-plated steel | ||||
| 530D | Nut, Volute Case | 305463033 | Zinc-plated steel | ||||
MOTOR FITMENT
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 3 – 7.5HP | 1 – 2HP | 143-184JM | 4.5 | 0.875 | JM-1 |
| 7.5 – 15HP | – | 213-215JM | 8.5 | 0.875 | JM-2 |
| Repair Parts | A2x2.5-6 (3600 RPM) [Discontinued] | Packing Seal Construction | ||||
|---|---|---|---|---|---|---|
| Figure No. | Part Description | Repair No. | Materials of Construction | |||
| 4.5AK Models | 8.5AK Models | |||||
| 1 | Volute Case (NPT) w/plugs | 305564001 | Cast iron, ASTM-A48 CL30 | |||
| Not Shown | Volute Case (Flange) w/plugs | 305564010 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 3 hp 4.125″ trim (.875 Bore) | 305564002 | NA | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller, 5 hp 4.750″ trim (.875 Bore) | 305564003 | NA | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller 7.5 hp 1ph 5.500″ trim (.875 Bore) | 305564004 | NA | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller 7.5 hp 3ph 5.500″ trim (1.250 Bore) | NA | 305564011 | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller 10 hp 6.000″ trim (1.250 Bore) | NA | 305564014 | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller 15 hp 6.413″ trim (1.250 Bore) | NA | 305564012 | Cast iron, ASTM-A48 CL30 | ||
| 3 | Motor Bracket | 305564006 | 305564009 | Cast iron, ASTM-A48 CL30 | ||
| 11 | Packing Seal Box | 305447004 | 305448005 | Cast iron, ASTM-A48 CL30 | ||
| 12 | Sleeve, Shaft | 305448006 | 305464010 | 416 stainless steel | ||
| 13 | Packing Ring Set | 305447006 | 305448009 | Graphite/cotton | ||
| 14 | Lantern Ring | NA | 305448010 | Teflon | ||
| 15 | Packing Gland (2-Piece) | 305447007 | 305448011 | 316 stainless steel | ||
| 35 | Key, Impeller Shaft | 305463001 | 305448012 | 301 stainless steel | ||
| 100A | O-Ring, Volute Case (2-pack) | 305463004 | Nitrile | |||
| 100B | O-Ring, Seal Box (2-pack) | 305463003 | 305463013 | Nitrile | ||
| 500A | Pipe Plug (4-pack | 305463020 | Zinc-plated steel | |||
| 502 | Grease fitting | NA | 305463015 | Zinc-plated steel | ||
| 503 | Slinger | 305450007 | 305447008 | Neoprene | ||
| 510 | Hex Cap Screw, Impeller | 305463006 | 305463024 | 410 stainless steel/17-4 stainless steel | ||
| 520 | Washer, Impeller | 305463228 | 305463230 | 300 series stainless steel | ||
| 529 | Nut, Packing Gland (4-pack) | 305463007 | Zinc-plated steel | |||
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | 305463016 | Zinc-plated steel | ||
| 530B | Stud, Volute Case (4 Pack) | 305463229 | Zinc-plated steel | |||
| 530C | Lockwashers, Volue Case (6 Pack) | 305463135 | Zinc-plated steel | |||
| 530D | Nut, Volute Case | 305463033 | Zinc-plated steel | |||
| 530E | Hex Cap Screw, Seal Box (12-pack) | 305463010 | Zinc-plated steel | |||
| 531 | Stud, Packing Gland (4-pack) | 305463008 | Zinc-plated steel | |||
MOTOR FITMENT
| Figure No. | 3600 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|
| 200 | 3 – 7.5HP | 145-184JP | 4.5 | 0.875 | JP-1 |
| 7.5 – 15HP | 213-215JP | 8.5 | 1.25 | JP-2 |
| Repair Parts | A2x3-8 (3600 RPM) | Mechanical Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| A2x3-8 (1800 RPM) | |||||||
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| 1 | Volute Case, NPT w/plugs | 305450002 | Cast iron, ASTM-A48 CL30 | ||||
| Not Shown | Volute Case, Flange w/plugs | 305450028 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 7.5 hp 2-pole, 1 hp 4-pole, 5.875″ trim (.875 bore) | 305450033 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 10 hp 2-pole, 1.5 hp 4-pole, 6.500″ trim (.875 bore) | 305450034 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 15 hp 2-pole, 2 hp 4-pole, 7.250″ trim (.875 bore) | 305450029 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 3 hp 4-pole, 7.938″ trim (.875 bore) | 305450039 | NA | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 20 hp 2- pole, 7.938″ trim (1.250 bore) | NA | 305450030 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Backet | 305449016 | 305450017 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Backet 20 hp | NA | 305450025 | Cast iron, ASTM-A48 CL30 | |||
| 12 | Shaft Sleeve | 305463240 | 416 stainless steel | ||||
| 12 | Shaft Sleeve 20 hp | NA | 305463241 | 416 stainless steel | |||
| 35 | Key , Impeller Shaft | 305463001 | 301 stainless steel | ||||
| 35 | Key, Impeller Shaft 20 hp | NA | 305450006 | 316 stainless steel | |||
| 90 | Mechanical Shaft Seal | 305463002 | Carbon/ceramic/nitrile/316 stainless steel | ||||
| 90 | Mechanical Shaft Seal 20 hp | NA | 305463204 | Carbon/ceramic/nitrile/316 stainless steel | |||
| 100A | O-Ring, Volute Case (2-Pack) | 305463018 | Nitrile | ||||
| 500A | Pipe Plug (4-pack) | 305463009 | Zinc-plated steel | ||||
| 503 | Water Slinger | 305450007 | Neoprene | ||||
| 503 | Water Slinger, 20 hp | NA | 305447008 | Neoprene | |||
| 510 | Water Slinger, 20 hp | 305463006 | 410 stainless steel | ||||
| 510 | Water Slinger, 20 hp | 305463006 | 410 stainless steel | ||||
| 510 | Hex Cap Screw, Impeller 20 hp | NA | 305463185 | 17-4 stainless steel | |||
| 520 | Washer , Impeller | 305447009 | 300 series stainless steel | ||||
| 520 | Washer , Impeller 20hp | NA | 305450015 | 18-8 stainless steel | |||
| 530A | Hex Cap Screw, Motor Bracket (12-Pack) | 305463010 | 305463016 | Zinc-plated steel | |||
| 530A | Hex Cap Screw, Motor Bracket 20hp(12-Pack) | NA | 305463207 | Zinc-plated steel | |||
| 530B | Hex Cap Screw, Volute Case (4-Pack) | 305463010 | 305463064 | Zinc-plated steel | |||
| 530B | Hex Cap Screw, Volute Case 20hp (4-Pack) | NA | 305463030 | Zinc-plated steel | |||
MOTOR FITMENT
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 7-5HP | 1 – 3HP | 143-184JM | 4.5 | 0.875 | JM-1 |
| 7.5 – 15HP | – | 213 215JM | 8.5 | 0.875 | JM-2 | |
| 20HP | – | 254-256JM | 8.5 | 1.25 | JM-3 |
| Repair Parts | A2x3-8 (3600 RPM) [Discontinued] | Packing Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| 1 | Volute Case (NPT) w/plugs | 305450002 | Cast iron, ASTM-A48 CL30 | ||||
| Not Shown | Volute Case (Flange) w/plugs | 305450028 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 7.5 hp 3ph 5.875″ trim (.875 bore) | 305450033 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 7.5 hp 1ph 5.875″ trim (1.250 bore) | N/A | 305450035 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 10 hp 6.500″ trim (1.250 bore) | N/A | 305450036 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 15 hp 7.250″ trim (1.250 bore) | N/A | 305450031 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 20 hp 7.938″ trim (1.250 bore) | N/A | 305450032 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Bracket | 305449002 | 305449003 | Cast iron, ASTM-A48 CL30 | |||
| 11 | Packing Seal Box | 305447004 | 305448005 | Cast iron, ASTM-A48 CL30 | |||
| 12 | Shaft Sleeve | 305448006 | 305449005 | 416 stainless steel | |||
| 13 | Packing Ring Set | 305447006 | 305448009 | Graphite/cotton | |||
| 14 | Lantern Ring | N/A | 305448010 | Teflon | |||
| 15 | Packing Gland (2-Piece) | 305447007 | 305448011 | 316 stainless steel | |||
| 35 | Key , Impeller Shaft | 305463001 | 305450006 | 316 stainless steel | |||
| 100 | O-Ring , Packing Seal Box | 305463003 | 305463013 | Nitrile | |||
| 100A | O-Ring, Volute Case 2-pack | 305463018 | Nitrile | ||||
| 500A | Pipe Plug (4-pack) | 305463009 | Zinc-plated steel | ||||
| 502 | Grease Fitting (2-pack) | N/A | 305463015 | Zinc-plated steel | |||
| 503 | Water Slinger | 305450007 | 305447008 | Neoprene | |||
| 510 | Hex Cap Screw, Impeller | 305463006 | 305463019 | 410 stainless steel/17-4 stainless steel | |||
| 520 | Washer, Impeller | 305447009 | 305450015 | 18-8 stainless steel | |||
| 529 | Nut, Packing Gland (4-pack) | 305463007 | Zinc-plated steel | ||||
| 530A | Hex Cap Screw, Motor Bracket | 305463010 | 305463016 | Zinc-plated steel | |||
| 530B | Hex Cap Screw, Volute Case (12-Pack) | 305463010 | Zinc-plated steel | ||||
| 530C | Hex Cap Screw, Seal Box (12-Pack) | 305463010 | Zinc-plated steel | ||||
| 531 | Stud, Packing Gland (4-pack) | 305463008 | Zinc-plated steel | ||||
MOTOR FITMENT
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 7.5HP | 1 – 3HP | 143-184JM | 4.5 | 0.875 | JM-1 |
| 7.5 – 15HP | – | 213-215JM | 8.5 | 0.875 | JM-2 | |
| 20HP | – | 254-256JM | 8.5 | 1.25 | JM-3 |
| Repair Parts | A1.5×2-6 (3600 RPM) [Discontinued] | Mechanical Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| A1.5×2-6 (1800 RPM) [Discontinued] | |||||||
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| 1 | Volute Case (NPT) w/plugs | 305576001 | Cast iron, ASTM-A48 CL30 | ||||
| Not Shown | Volute Case (Flange) w/plugs | 305576002 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 3 hp 2-pole, 3.688″ trim (.875 Bore) | 305576003 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 3 hp 3.688″ trim (.875 Bore) | 305576003 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 5 hp 2-pole, 4.250″ trim (.875 Bore) | 305576004 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 7.5 hp 1ph 4.812″ trim (.875 Bore) | 305576005 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 10 hp 2-pole, 1.5 hp 4-pole, 5.375″ trim (.875 Bore) | 305576006 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 15 hp 2-pole, 2 hp 4-pole, 6.438″ trim (.875 Bore) | 305576007 | Cast iron, ASTM-A48 CL30 | ||||
| 3 | Motor Bracket | 305564005 | 305564008 | Cast iron, ASTM-A48 CL30 | |||
| 12 | Sleeve, Mechanical Seal | 305463227 | 416 stainless steel | ||||
| 35 | Key , Impeller Shaft | 305463001 | 301 stainless steel | ||||
| 90 | Mechanical Shaft Seal | 305463002 | Carbon/ceramic/nitrile/316 stainless steel | ||||
| 100A | O-Ring, Volute Case 2-pack | 305463004 | Nitrile | ||||
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel | ||||
| 503 | Slinger | 305450007 | 305447008 | Neoprene | |||
| 510 | Hex Cap Screw, Impeller | 305463006 | 410 stainless steel | ||||
| 520 | Washer, Impeller | 305447009 | 300 series stainless steel | ||||
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | 305463026 | Zinc-plated steel | |||
| 530B | Stud, Volute Case (4 Pack) | 305463229 | Zinc-plated steel | ||||
| 530C | Lockwashers, Volue Case (6 Pack) | 305463135 | Zinc-plated steel | ||||
| 530D | Nut, Volute Case | 305463033 | Zinc-plated steel | ||||
MOTOR FITMENT
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 3 – 7.5HP | 1 – 2HP | 143-184JP | 4.5 | 0.875 | JM-1 |
| 7.5 – 15HP | – | 213-215JP | 8.5 | 1.25 | JM-2 |
Refer to motor specifications page for replacement information
Motor Frame can be determined by the pump order number and or motor nameplate
| Repair Parts | A2.4×4-10 (3600 RPM) | Mechanical Seal Construction | |||||||
|---|---|---|---|---|---|---|---|---|---|
| AL2.5×4-10 (1800 RPM) | |||||||||
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||||
| 4.5AK Models | 8.5AK Models | 12.5AK Models | |||||||
| 213-215JM | 254-256 Frame | ||||||||
| 1 | Volute Case, NPT w/plugs | 305411908 | Cast iron, ASTM-A48 CL30 | ||||||
| Not Shown | Volute Case (Flange) w/plugs | 305411940 | Cast iron, ASTM-A48 CL30 | ||||||
| 2 | Impeller, 3 hp 4-pole, 8.000″ trim (.875″ bore | 305410985 | NA | NA | NA | CA6NM stainless steel | |||
| 2 | Impeller, 5 hp 4-pole, 9.000″ trim (.875″ bore) | 305410986 | NA | NA | CA6NM stainless steel | ||||
| 2 | Impeller, 20 hp 2-pole, 7.375″ trim (1.250 bore) | NA | NA | 305410941 | NA | CA6NM stainless steel | |||
| 2 | Impeller, 25 hp 2-pole, 8.000″ trim (1.250 bore) | NA | NA | 305410938 | NA | CA6NM stainless steel | |||
| 2 | Impeller, 30 hp 2-pole, 8.375″ trim (1.250 bore | NA | NA | NA | 305410942 | CA6NM stainless steel | |||
| 2 | Impeller, 40 hp 2-pole, 9.000″ trim (1.250 bore) | NA | NA | NA | 305410939 | CA6NM stainless steel | |||
| 3 | Motor Backet | 305411954 | 305411941 | 305411942 | 305411943 | Cast iron, ASTM-A48 CL30 | |||
| 4A | SAE 660 Bronze | SAE 660 Bronze | SAE 660 Bronze | ||||||
| 4B | SAE 660 Bronze | SAE 660 Bronze | SAE 660 Bronze | ||||||
| 12 | Shaft Sleeve | 305463248 | 305463249 | 416 stainless steel | |||||
| 35 | Key , Impeller Shaft | 305463001 | 305463150 | 316 stainless steel | |||||
| 90 | Mechanical Shaft Seal | 305463002 | 305463012 | Carbon/ceramic/nitrile/316 stainless steel | |||||
| 100A | O-Ring, Volute Case (2-Pack) | 305418925 | Nitrile | ||||||
| 500A | Pipe Plug (4-pack) | 305463175 | Zinc-plated steel | ||||||
| 503 | Water Slinger | 305450007 | 305447008 | Neoprene | |||||
| 510 | Hex Cap Screw, Impeller | 305463250 | 305463024 | 410 stainless steel/17-4 stainless steel | |||||
| 520 | Washer , Impeller | 3305447009 | 305463269 | 416stainless steel | |||||
| 530A | Hex Cap Screw, Motor Bracket (12-Pack) | 305463269 | 305463016 | 305418918 | Zinc-plated steel | ||||
| 530B | Hex Cap Screw, Volute Case (4-Pack) | 305463010 | Zinc-plated steel | ||||||
MOTOR FITMENT
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | – | 3 – 5HP | 143-184JM | 4.5 | 0.875 | JM-1 |
| – | 5HP | 213 215JM | 8.5 | 0.875 | JM-2 | |
| 25-40HP | – | 284-326JM | 12.5 | 1.25 | JM-4 |
| Repair Parts | A2.5×4-10 (3600 RPM) [Discontinued] | Mechanical Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| not shown | Volute Case, Flange w/plugs | 305411908 | Cast iron, ASTM-A48 CL30 | ||||
| 1 | Volute Case, NPT w/plugs | 305411940 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 15 hp 7.00″ trim (1.250 bore) | 305410937 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 20 hp 7.38″ trim (1.250 bore) | 305410941 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 25 hp 8.00″ trim (1.250 bore) | 305410938 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 30 hp 8.38″ trim (1.250 bore) | N/A | 305410942 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 40 hp 9.00″ trim (1.250 bore) | N/A | 305410939 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Bracket | 305412902 | 305412906 | Cast iron, ASTM-A48 CL30 | |||
| 4A | Wear Ring | 305417905 | SAE 660 Bronze | ||||
| 4B | Wear Ring | 305417923 | SAE 660 Bronze | ||||
| 11 | Packing Seal Box | 305448005 | Cast iron, ASTM-A48 CL30 | ||||
| 12 | Shaft Sleeve | 305448006 | 416 stainless steel | ||||
| 13 | Packing Ring Set | 305448009 | Graphite/cotton | ||||
| 14 | Lantern Ring | 305448010 | Teflon | ||||
| 15 | Packing Gland (2-Piece) | 305448011 | 316 stainless steel | ||||
| 21 | Packing Gland Assembly | 305411936 | Various | ||||
| 35 | Key , Impeller Shaft | 305463150 | 301 stainless steel | ||||
| 100 | O-Ring , Packing Seal Box | 305463013 | Nitrile | ||||
| 100A | O-Ring, Volute Case 2-pack | 305418925 | Nitrile | ||||
| 500A | Pipe Plug (4-pack) | 305463175 | Zinc-plated steel | ||||
| 502 | Grease Fitting (2-pack) | 305463015 | Zinc-plated steel | ||||
| 503 | Water Slinger | 305447008 | Neoprene | ||||
| 510 | Hex Cap Screw, Impeller | 305463024 | 17-4 stainless steel | ||||
| 520 | Washer, Impeller | 305463269 | 300 series stainless steel | ||||
| 529 | Nut, Packing Gland (4-pack) | 305463007 | Zinc-plated steel | ||||
| 530A | Hex Cap Screw, Motor Bracket | 305463016 | 305418918 | Zinc-plated steel | |||
| 530B | Hex Cap Screw, Volute Case (12-Pack) | 305463010 | Zinc-plated steel | ||||
| 530C | Hex Cap Screw, Seal Box (12-Pack) | 305463010 | Zinc-plated steel | ||||
| 531 | Stud, Packing Gland (4-pack) | 305463008 | Zinc-plated steel | ||||
MOTOR FITMENT
| Figure No. | 3600 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|
| 200 | 20 – 25HP | 254-256JP | 8.5 | 1.25 | JP-2 |
| 25 – 40HP | 284-326JP | 12.5 | 1.25 | JP-3 |
| Repair Parts | A3x4-6 (3600 RPM) | Mechanical Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| AL3x4-6 (1800 RPM) | |||||||
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| 1 | Volute Case, NPT w/plugs | 305567001 | Cast iron, ASTM-A48 CL30 | ||||
| Not Shown | Volute Case (Flange) w/plugs | 305567002 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 3 hp 4-pole, 6.438″ trim (.875 bore) | 305567011 | NA | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 5 hp 2-pole, 4.38″ trim (.875 bore) | 305567013 | NA | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 7. 5 hp 2-pole 1 hp 4-pole, 5.063″ trim (.875 bore) | 305567003 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 10 hp 2-pole, 1.5 hp 4-pole, 5.312″ trim (.875 bore) | 305567004 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 15 hp 2-pole, 2 hp 4-pole, 5.938″ trim (.875 bore) | 305567005 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 20 hp 2-pole 6.438″ trim (1.250 bore) | NA | 305567006 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Backet | 305564005 | 305564008 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Backet 20 hp | NA | 305567007 | Cast iron, ASTM-A48 CL30 | |||
| 12 | Shaft Sleeve | 305463227 | 416 stainless steel | ||||
| 12 | Shaft Sleeve 20 hp | NA | 305463233 | 416 stainless steel | |||
| 35 | Key , Impeller Shaft | 305463001 | 301 stainless steel | ||||
| 90 | Mechanical Shaft Seal | 305463002 | Carbon/ceramic/nitrile/316 stainless steel | ||||
| 90 | Mechanical Shaft Seal 20 hp | NA | 305463012 | Carbon/ceramic/nitrile/316 stainless steel | |||
| 100A | O-Ring, Volute Case (2-Pack) | 305463004 | Nitrile | ||||
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel | ||||
| 503 | Slinger | 305450007 | Neoprene | ||||
| 503 | Water Slinger, 20 hp | NA | 305463204 | Neoprene | |||
| 510 | Hex Cap Screw, Impeller | 305463006 | 410 stainless steel | ||||
| 510 | Hex Cap Screw, Impeller 20 hp | NA | 305463024 | 17-4 stainless steel | |||
| 520 | Washer , Impeller | 305463228 | 300 series stainless steel | ||||
| 520 | Washer , Impeller 20hp | NA | 305463234 | 300 series stainless steel | |||
| 530A | Hex Cap Screw, Motor Bracket (12-Pack) | 305463010 | 305463026 | Zinc-plated steel | |||
| 530A | Hex Cap Screw, Motor Bracket 20hp(12-Pack) | NA | 305463207 | Zinc-plated steel | |||
| 530B | Studs, Volute Case (4 Pack) | 305463229 | Zinc-plated steel | ||||
| 530C | Lockwashers, Volue Case (6 Pack) | 305463135 | Zinc-plated steel | ||||
| 530D | Nut, Volute Case | 305463033 | Zinc-plated steel | ||||
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | 5-7.5HP | 1 – 3HP | 143-184JM | 4.5 | 0.875 | JM-1 |
| 5 – 10HP | – | 213 215JM | 8.5 | 0.875 | JM-2 | |
| 20HP | – | 254-256JM | 8.5 | 1.25 | JM-3 |
| Repair Parts | A3x4-6 (3600 RPM) | Packing Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | ||||||
| 1 | Volute Case (NPT) w/plugs | 305567001 | Cast iron, ASTM-A48 CL30 | ||||
| not shown | Volute Case (Flange) w/plugs | 305567002 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 7.5 hp 3ph 5.063″ trim (.875 Bore) | 305567003 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 7.5 hp 1ph 5.063″ trim (1.250 Bore) | N/A | 305567008 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 10 hp 5.312″ trim (1.250 Bore) | N/A | 305567009 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 15 hp 5.938″ trim (1.250 Bore) | N/A | 305567010 | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 20 hp 6.438″ trim (1.250 Bore) | N/A | 305567006 | Cast iron, ASTM-A48 CL30 | |||
| 3 | Motor Bracket | 305564006 | 305564009 | Cast iron, ASTM-A48 CL30 | |||
| 11 | Packing Seal Box | 305447004 | 305447004 | Cast iron, ASTM-A48 CL30 | |||
| 12 | Sleeve, Shaft | 305448006 | 305464010 | 416 stainless steel | |||
| 13 | Packing Ring Set | 305447006 | 305448009 | Graphite/cotton | |||
| 14 | Lantern Ring | n/a | 305448010 | Teflon | |||
| 15 | Packing Gland (2-Piece) | 305447007 | 305448011 | 316 stainless steel | |||
| 35 | Key, Impeller Shaft | 305463001 | 305450006 | 301 stainless steel | |||
| 100A | O-Ring, Volute Case (2-pack) | 305463004 | Nitrile | ||||
| 100B | O-Ring, Seal Box (2-pack) | 305463003 | 305463013 | Nitrile | |||
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel | ||||
| 502 | Grease fitting | n/a | 305463015 | Zinc-plated steel | |||
| 503 | Slinger | 305450007 | 305447008 | Neoprene | |||
| 510 | Hex Cap Screw, Impeller | 305463006 | 305463024 | 410 stainless steel/17-4 stainless steel | |||
| 520 | Washer, Impeller | 305463228 | 305463230 | 300 series stainless steel | |||
| 529 | Nut, Packing Gland (4-pack) | 305463007 | Zinc-plated steel | ||||
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | 305463016 | Zinc-plated steel | |||
| 530B | Stud, Volute Case (4 Pack) | 305463229 | Zinc-plated steel | ||||
| 530C | Lockwashers, Volue Case (6 Pack) | 305463135 | Zinc-plated steel | ||||
| 530D | Nut, Volute Case | 305463033 | Zinc-plated steel | ||||
| 530E | Hex Cap Screw, Seal Box (12-pack) | 305463010 | Zinc-plated steel | ||||
| 531 | Stud, Packing Gland (4-pack) | 305463008 | Zinc-plated steel | ||||
MOTOR FITMENT
| Figure No. | 3600 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|
| 200 | 7.5HP | 145-184JP | 4.5 | 0.875 | JP-1 |
| 7.5 – 20HP | 213-256J | 8.5 | 1.25 | JP-2 |
| Repair Parts | A3X4-9 (3600 RPM) | Packing Seal Construction | |||
|---|---|---|---|---|---|
| A3X4-9 (1800 RPM) | |||||
| Figure No. | Part Description | Repair No. | Materials of Construction | ||
| 4.5AK | 8.5AK | 12.5AK | |||
| 1 | Volute Case (NPT) w/plugs | 305565001 | Cast iron, ASTM-A48 CL30 | ||
| Not Shown | Volute Case (Flange) w/plugs | 305565002 | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller, 5 hp 4-pole, 6.875″ trim (0.875 bore) | 305565015 | N/A | N/A | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 5 hp 4-pole, 7.312″ trim (0.875 bore) | 305565010 | N/A | N/A | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 7.5 hp 4-pole, 7.875″ trim (0.875 bore) | N/A | 305565016 | N/A | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 7.5 hp 4-pole, 8.562″ trim (0.875 bore) | N/A | 305565011 | N/A | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 10 hp 4-pole, 9.00″ trim (0.875 bore) | N/A | 305565012 | N/A | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 30 hp 2-pole, 6.875″ trim (1.250 bore) | N/A | N/A | 305565003 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 40 hp 2-pole, 7.312″ trim (1.250 bore) | N/A | N/A | 305565004 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 50 hp 2-pole, 7.875″ trim (1.250 bore) | N/A | N/A | 305565005 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 60 hp 2-pole, 8.562″ trim (1.250 bore) | N/A | N/A | 305565006 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller, 75 hp 2-pole, 9.000″ trim (1.250 bore) | N/A | N/A | 305565009 | Cast iron, ASTM-A48 CL30 |
| 3 | Bracket, Motor | 305565013 | 305565014 | 305565007 | Cast iron, ASTM-A48 CL30 |
| 12 | Sleeve, Mechanical Seal | 305463227 | 305463231 | 416 stainless steel | |
| 35 | Key, Impeller Shaft | 305453028 | 305450006 | 301 stainless steel | |
| 90 | Mechanical Shaft Seal | 305463002 | 305463017 | Carbon/ceramic/nitrile/316 stainless steel | |
| 100A | O-Ring, Volute Case (2-pack) | 305463232 | Nitrile | ||
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plateed steel | ||
| 503 | Slinger | 305450007 | 305447008 | Nitrile | |
| 510 | Hex Cap Screw, Impeller | 305463006 | 305463185 | 410 stainless steel/17-4 stainless steel | |
| 520 | Washer, Impeller | 305447009 | 305463255 | 300 series stainless steel | |
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 305463010 | 305463016 | 305463208 | Zinc-plated steel |
| 530B | Hex Cap Screw, Volute Case (12 Pack) | 305463010 | Zinc-plateed steel | ||
MOTOR FITMENT
| Figure No. | 3600 | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|---|
| 200 | – | 5HP | 145-184JP | 4.5 | 0.875 | JM-1 |
| – | 5 – 7.5HP | 213-215JM | 8.5 | 0.875 | JM-2 | |
| 30 – 75HP | – | 284-365JM | 12.5 | 1.25 | JM-4 |
| Repair Parts | A3X4-9 (3600 RPM) | Packing Seal Construction | ||
|---|---|---|---|---|
| Figure No. | Part Description | Repair No. | Materials of Construction | |
| 1 | Volute Case (NPT) w/plugs | 305565001 | Cast iron, ASTM-A48 CL30 | |
| Not Shown | Volute Case (Flange) w/plugs | 305565002 | Cast iron, ASTM-A48 CL30 | |
| 2 | Impeller, 30 hp 2-pole, 6.875″ trim | 305565003 | Cast iron, ASTM-A48 CL30 | |
| 2 | Impeller, 40 hp 2-pole, 7.312″ trim | 305565004 | Cast iron, ASTM-A48 CL30 | |
| 2 | Impeller, 50 hp 2-pole, 7.875″ trim | 305565005 | Cast iron, ASTM-A48 CL30 | |
| 2 | Impeller, 60 hp 2-pole, 8.562″ trim | 305565006 | Cast iron, ASTM-A48 CL30 | |
| 2 | Impeller, 75 hp 2-pole, 9.000″ trim | 305565009 | Cast iron, ASTM-A48 CL30 | |
| 3 | Bracket, Motor | 305448005 | Cast iron, ASTM-A48 CL30 | |
| 3 | Bracket, Motor | 305448005 | Cast iron, ASTM-A48 CL30 | |
| 11 | Packing Seal Box | 305448005 | Cast iron, ASTM-A48 CL30 | |
| 12 | Sleeve, Shaft | 305449005 | 416 stainless steel | |
| 13 | Packing Ring Set | 305448009 | Graphite/cotton | |
| 14 | Lantern Ring | 305448010 | Teflon | |
| 15 | Packing Gland (2-Piece) | 305448011 | 316 stainless steel | |
| 35 | Key, Impeller Shaft | 305450006 | 301 stainless steel | |
| 100A | O-Ring, Volute Case (2-pack) | 305463232 | Nitrile | |
| 100B | O-Ring, Seal Box (2-pack) | 305463013 | Nitrile | |
| 500A | Pipe Plug (4-pack) | 305463020 | Zinc-plated steel | |
| 502 | Grease fitting | 305463015 | Zinc-plated steel | |
| 503 | Slinger | 305447008 | Neoprene | |
| 510 | Hex Cap Screw, Impeller | 305463185 | 17-4 stainless steel | |
| 520 | Washer, Impeller | 305463255 | 300 series stainless steel | |
| 529 | Nut, Packing Gland (4-pack) | 305463007 | Zinc-plated steel | |
| 530A | Hex Cap Screw, Motor Bracket (12 Pack) | 30546320 | Zinc-plated steel | |
| 530B | Hex Cap Screw, Volute Case (12 Pack) | 305463010 | Zinc-plated steel | |
| 530C | Hex Cap Screw, Seal Box (12 pack) | 305463010 | Zinc-plated steel | |
| 531 | Stud, Packing Gland (4-pack) | 305463008 | Zinc-plated steel | |
| Figure No. | 3600 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|
| 200 | 30 – 60HP | 284-326JP | 12.5 | 1.25 | JP-3 |
| 60 – 75HP | 364-365JPZ/TCZ | 12.5 | 1.25 | JPZ-2P |
| Repair Parts | AL3 x4 -10 | Mechanical Seal Construction | |||||
|---|---|---|---|---|---|---|---|
| Figure No. | Part Description | Repair No. | Materials of Construction | ||||
| 4.5AK Models | 8.5AK Models | 8.5AK Models 254/256 Frame |
|||||
| 1 | Volute Case, Flange w/plugs | 305411909 | Cast iron, ASTM-A48 CL30 | ||||
| 2 | Impeller, 5 hp 4-pole, 8.000″ trim (.875″ bore) | 305410987 | N/A | Cast iron, ASTM-A48 CL30 | |||
| 2 | Impeller, 7.5 hp 4-pole, 9.250″ trim (.875″ bore) | N/A | 305410988 | N/A | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller, 10 hp 4-pole, 9.750″ trim (.875 bore) | N/A | N/A | 305410989 | Cast iron, ASTM-A48 CL30 | ||
| 2 | Impeller, 15 hp 4-pole, 10.250″ trim (1.250 bore) | N/A | N/A | 305410947 | Cast iron, ASTM-A48 CL30 | ||
| 3 | Motor Backet | 305411955 | 305411956 | 305411957 | Cast iron, ASTM-A48 CL30 | ||
| 4A | Wear Ring Suction | 305417906 | SAE 660 Bronze | ||||
| 4B | Wear Ring, Hub | 305417925 | SAE 660 Bronze | ||||
| 12 | Shaft Sleeve | 305463248 | 305463249 | 416 stainless steel | |||
| 35 | Key, Impeller Shaft | 305463001 | 305463150 | 316 stainless steel | |||
| 90 | Mechanical Shaft Seal | 305463002 | 305463012 | Carbon/ceramic/nitrile/316 stainless steel | |||
| 100A | O-Ring , Volute Case (2-Pack) | 305418925 | Nitrile | ||||
| 500A | Pipe Plug (4-pack) | 305463175 | Zinc-plated steel | ||||
| 503 | Water Slinger | 305450007 | 305447008 | Neoprene | |||
| 510 | Hex Cap Screw, Impeller | 305463274 | 305463024 | 410 stainless steel | |||
| 520 | Washer , Impeller | 305419908 | 305463269 | 416 stainless steel | |||
| 530A | Hex Cap Screw, Motor Bracket (8-Pack) (12-Pack) | 305463053 | 305463016 | Zinc-plated steel | |||
| 530B | Hex Cap Screw, Volute Case (12-Pack) | 305463010 | Zinc-plated steel | ||||
MOTOR FITMENT A3 X 4 – 9
| Figure No. | 1800 | Frame | AK | Shafy Dia | Mtr Code |
|---|---|---|---|---|---|
| 200 | 5HP | 184JM | 4.5 | 0.875 | JM-3 |
| 5 – 10HP | 213 215JM | 8.5 | 0.875 | JM-2 | |
| 15HP | 254JM | 8.5 | 1.25 | JM-3 |
ALTERNATE REPLACEMENT MECHANICAL SEALS
| Shaft Sleeve O.D. | Stationary Socket Diameter | Stationary Socket Depth | Seal Working Height | HP Range | Motor Frame Sizes | AG Series Where Used | Materials of Construction | Replacement Part | |
|---|---|---|---|---|---|---|---|---|---|
| 1-1/4″ | 1-7/8″ | 7/16″ | 1-5/8″ | 3 – 15HP | 143-215JM | A1157, A1526, A2310,A2256, A238,A2536, A346 | Standard | CarbonxCeramicxEPDMx18-8SS | 305463002 |
| Alt. 1 | SiCxSiCxEPDMx18-8SS | 305613903 | |||||||
| Alt. 2 | SiCxSiCxFKMx18-8SS | 305613904 | |||||||
| 1-5/8″ | 2-3/8″ | 1/2″ | 1-5/8″ | 20 – 50HP | 254-326JM | A2310, A25410, A346 | Standard | CarbonxCeramicxEPDMx18-8SS | 305463012 |
| Alt. 1 | SiCxSiCxEPDMx18-8SS | 305613907 | |||||||
| Alt. 2 | SiCxSiCxFKMx18-8SS | 305613908 | |||||||
| 1-5/8″ | 2-3/8″ | 1/2″ | 2″ | 30 – 75HP | 254-365JM | A349 | Standard | CarbonxCeramicxEPDMx18-8SS | 305463017 |
| Alt. 1 | SiCxSiCxEPDMx18-8SS | 305613909 | |||||||
| Alt. 2 | SiCxSiCxFKMx18-8SS | 305613910 | |||||||
| 1-3/4″ | 2-1/2″ | 1/2″ | 2″ | 20HP | 254-256JM | A238 | Standard | CarbonxCeramicxEPDMx18-8SS | 305463204 |
| Alt. 1 | SiCxSiCxEPDMx18-8SS | 305613906 | |||||||
| Alt. 2 | SiCxSiCxFKMx18-8SS | 305613905 | |||||||
Frequently Asked Questions
What Franklin Electric AG Series repair parts does Ken’s Distributing carry?
Ken’s Distributing Company carries genuine Franklin Electric AG Series repair parts including impellers, mechanical shaft seals, shaft sleeves, pump cases, motor adapters, case gaskets, O-rings, wear rings, water slingers, hardware kits, and packing kits for all 9 AG Series pump families. Kendisco is one of the most well-stocked Franklin Electric AG Series parts distributors in the region, which is why this page is consistently one of the most visited parts pages on the Kendisco website.
What is the Franklin Electric AG Series pump used for?
The Franklin Electric AG Series close-coupled centrifugal pump is used for agricultural irrigation and farm water supply, pressure boosting for residential and commercial water distribution, water supply and treatment, wash down systems, water recirculation, and irrigation booster applications. It covers flows up to 900 GPM at heads up to 325 feet across 9 pump families.
How do I identify which AG Series pump I have?
The pump model number is stamped on the nameplate attached to the pump casing. Franklin Electric AG Series model numbers follow a format that indicates the suction and discharge size and the impeller diameter, for example A2x3-7 indicates a 2 inch discharge, 3 inch suction, 7 inch impeller pump. Contact Ken’s Distributing with this model number and the team will identify the correct replacement parts for your specific configuration.
What is the difference between an ODP and TEFC motor on the AG Series?
ODP stands for Open Drip-Proof, which is a motor with ventilation openings that allow air to circulate through the motor for cooling. ODP motors are suitable for clean, dry indoor or sheltered outdoor installations. TEFC stands for Totally Enclosed Fan Cooled, which is a sealed motor with an external fan for cooling that prevents dust, moisture, and debris from entering the motor housing. TEFC motors are the better choice for outdoor, dusty, or wet agricultural environments. Both options are available on AG Series motors from Ken’s Distributing.
Are CA6NM stainless steel impellers available for all AG Series models?
No. CA6NM stainless steel impellers are available specifically for the A1.5×2-6 and A2.5×4-10 AG Series models. The remaining AG Series models use ASTM-A48 CL30 cast iron impellers as standard. If you have one of the stainless steel impeller models and need a replacement, confirm your model number with Ken’s Distributing to ensure you receive the correct impeller material for your pump.
Can I service the AG Series pump without disconnecting the piping?
Yes. The Franklin Electric AG Series uses a back pull-out design that allows the rotating assembly including the impeller, shaft sleeve, mechanical seal, and motor adapter to be removed for service without disconnecting the suction or discharge piping. The volute casing stays in place and connected to the piping during service, which significantly reduces the time and effort required for routine maintenance and seal replacement.
Where can I order Franklin Electric AG Series repair parts?
You can order genuine Franklin Electric AG Series repair parts directly from Ken’s Distributing Company at kendisco.com. Contact Kendisco with your pump model number and the specific part you need, and the team will confirm the correct Franklin Electric part number and current stock availability for your order. Ken’s Distributing is a trusted Franklin Electric distributor serving agricultural, commercial, municipal, and industrial customers with fast access to genuine parts and knowledgeable product support.
Ken’s Distributing Company maintains one of the most comprehensive Franklin Electric AG Series parts inventories in the region. Whether you need a single mechanical seal for a routine service or a complete set of repair components to rebuild an AG Series pump after extended service, Kendisco has the parts, the product knowledge, and the commitment to service that keeps your irrigation and water supply systems running without interruption.
