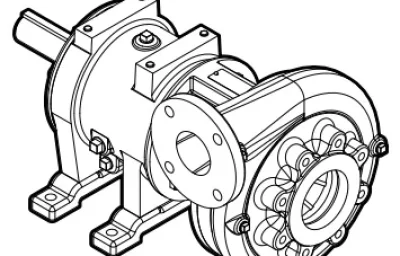

Franklin Electric 10-Inch Frame Mount Centrifugal Pump & Parts
The Franklin Electric 10-Inch Frame Mount Pump is a heavy-duty, bearing-frame centrifugal pump family for irrigation pumping stations, industrial water transfer and large water-distribution systems. Choose the correct HC hydraulic size, clockwise-rotation pump model, packing or mechanical seal, and manufacturer order number before requesting a quote from Ken’s Distributing Company.
This nominal 10-inch family includes six discharge-by-suction configurations, with 12 listed bare-shaft assemblies. The catalog provides separate performance curves for each hydraulic, from 2 × 3-10 through 6 × 8-10 and 6 × 8-10L. We can help identify a complete pump assembly or the correct replacement impeller, wear ring, shaft sleeve, mechanical seal or bearing-frame part.
Explore the Franklin Electric pump and parts range or use the model and part-number references below to prepare your quote request.
Franklin Electric 10-Inch Frame Mount Pump: Key Specifications
The series uses a separately supported bearing-frame shaft for coupling to a suitable driver. The motor, coupling, baseplate and drive arrangement must be specified for the installation; do not assume they are included in a bare-shaft pump order.
| Specification | Details |
|---|---|
| Pump family | HC, nominal 10-inch frame-mounted centrifugal pump |
| Pump sizes, discharge × suction | 2 × 3, 2.5 × 4, 3 × 4, 4 × 6, 6 × 8-10L and 6 × 8-10 |
| Complete pump configurations | 12 catalog listings, six sizes with packing or mechanical-seal selection |
| Maximum flow reference | Up to approximately 1,900 GPM across the family, depending on model and operating point; confirm against the curve |
| Maximum head reference | Up to approximately 400 ft across selected curves; not the head rating for every hydraulic |
| Maximum working pressure | 350 PSI stated on the existing product page; reconfirm for the selected casing and flange rating |
| Maximum liquid temperature | 212°F listed on the existing product page; confirm operating limits for the selected seal |
| Rotation | Clockwise, as shown in the manufacturer ordering catalog |
| Connections | Flanged, with discharge and suction sizes specific to each model |
| Volute and impeller | Ductile iron; enclosed impeller, with model-specific trim |
| Wear components | Replaceable SAE 660 bronze wear rings and shaft sleeves |
| Shaft seals | Packing with lantern ring, or silicon-carbide mechanical seal with FKM elastomers |
| Service design | Back pull-out construction with separate bearing frame |
Performance note: The highest GPM, total head and working-pressure figures are not a simultaneous operating duty point. The manufacturer provides different flow, head, impeller trim, rotational speed and NPSH data for each hydraulic. Provide the design flow and total dynamic head for sizing rather than selecting on maximum numbers alone.
10-Inch HC Frame Mount Pump Models and Ordering Numbers
These are the 12 model/order-number combinations in the Franklin Electric catalog linked below. The first column contains the manufacturer order number; the listed weights are catalog values for the pump assemblies, not shipping quotations. No verified dedicated product URL was found for these individual numbers, so the order numbers remain unlinked.
| Order number | Pump model | Discharge × suction (in.) | Shaft sealing | Rotation | Catalog weight (lb) |
|---|---|---|---|---|---|
| 14030210100 | HC-3X2-10-BF-P | 2 × 3-10 | Packing | CW | 395 |
| 15030210101 | HC-3X2-10-BF-M | 2 × 3-10 | Mechanical seal | CW | 395 |
| 14042510100 | HC-4X25-10-BF-P | 2.5 × 4-10 | Packing | CW | 405 |
| 15042510101 | HC-4X25-10-BF-M | 2.5 × 4-10 | Mechanical seal | CW | 405 |
| 14040310100 | HC-4X3-10-BF-P | 3 × 4-10 | Packing | CW | 405 |
| 15040310101 | HC-4X3-10-BF-M | 3 × 4-10 | Mechanical seal | CW | 405 |
| 14060410100 | HC-6X4-10-BF-P | 4 × 6-10 | Packing | CW | 465 |
| 15060410101 | HC-6X4-10-BF-M | 4 × 6-10 | Mechanical seal | CW | 465 |
| 14080695100 | HC-8X6-95-BF-P | 6 × 8-10L | Packing | CW | 595 |
| 15080695101 | HC-8X6-95-BF-M | 6 × 8-10L | Mechanical seal | CW | 595 |
| 14080610100 | HC-8X6-10-BF-P | 6 × 8-10 | Packing | CW | 600 |
| 15080610101 | HC-8X6-10-BF-M | 6 × 8-10 | Mechanical seal | CW | 600 |
How to choose: Match the pump size to piping and hydraulic conditions, then choose -P for packing or -M for a mechanical seal. The 6 × 8-10L listing is not the same hydraulic as 6 × 8-10; their impeller and wear-ring numbers differ.
Frame Mount Dimensions and Connection Sizes
Catalog dimensions depend on the volute size and arrangement. The table lists selected manufacturer dimensions in inches. Use the detailed dimension drawings in the original ordering document for the full A–DD3 and key dimensions before making base, shaft or flange alterations.
| Hydraulic size (discharge × suction) | A (in.) | L (in.) | CP (in.) | Key (in.) |
|---|---|---|---|---|
| 2 × 3-10 | 13.25 | 18.16 | 26.15 | 0.50 |
| 2.5 × 4-10 | 13.25 | 18.29 | 26.28 | 0.50 |
| 3 × 4-10 | 13.25 | 18.41 | 26.40 | 0.50 |
| 4 × 6-10 | 13.25 | 19.69 | 27.68 | 0.50 |
| 6 × 8-10L | 13.25 | 24.16 | 32.15 | 0.50 |
| 6 × 8-10 | 13.25 | 24.16 | 32.15 | 0.50 |
Installation planning: Confirm flange drilling, shaft alignment, driver selection, rotation, coupling guard, suction conditions and available NPSH before commissioning. The listed frame-mount models should not be confused with the close-coupled HC pump series.
10-Inch Centrifugal Pump Performance and Applications
Franklin Electric provides individual variable-speed and fixed-speed performance charts, with flow, head, impeller diameter, motor horsepower and NPSH information. The 6 × 8-10L curve is specifically labeled with a 9.5-inch impeller, while other catalog configurations can use an approximately 10.25-inch untrimmed impeller. The proper duty point depends on the selected speed and impeller trim.
These pumps may be considered for agricultural irrigation mains, raw- or treated-water transfer, water distribution, suitable construction water management, and general industrial pumping where an engineer can confirm the fluid, piping, materials and duty cycle. Abrasive or chemically aggressive fluids require separate material and seal compatibility checks.
Use the Franklin Electric 10-Inch Frame Mount Ordering Information, Parts Drawings, Dimensions and Performance Curves (PDF) for the complete manufacturer charts and diagrams. This link is provided once to avoid duplicating the same resource throughout the page.
OEM Impellers, Volute Cases and Bronze Wear Rings by HC Pump Size
The following replacement-part numbers come from the manufacturer’s size-specific parts pages. The manufacturer distinguishes the casing, impeller, suction-side wear ring and hub-side wear ring, and the 6 × 8 versions use a different wear-ring arrangement. Order by both hydraulic size and OEM number.
| Hydraulic size | Volute case | Impeller | Wear ring, volute/suction | Wear ring, hub | Volute O-ring |
|---|---|---|---|---|---|
| 2 × 3-10 | 305411907 | 305410935 (10.25 in.) | 305417903 | 305417916 | 305418925 |
| 2.5 × 4-10 | 305411908 | 305410940 (10.25 in.) | 305417905 | 305417902 | 305418925 |
| 3 × 4-10 | 305411909 | 305410947 (10.25 in.) | 305417906 | 305417918 | 305418925 |
| 4 × 6-10 | 305411910 | 305410952 (10.25 in.) | 305417909 | 305417921 | 305418924 |
| 6 × 8-10L | 305411912 | 305410957 (9.5 in.) | 305417912 | Not listed separately | 305418925 |
| 6 × 8-10 | 305411912 | 305410962 (10.25 in.) | 305417913 | Not listed separately | 305418926 |
For the 6 × 8 pumps, the manufacturer also lists a suction spool, 305411918 for the 10L and 305411919 for the 10. Check the exploded drawing for the matching clean-out cover and suction-spool O-ring before requesting components.
Mechanical Seals, Packing Kits and Common Service Components
A worn seal, leaking packing gland, damaged shaft sleeve or loose wear ring may be serviceable without buying another pump. These manufacturer parts support individual repairs, but they should not be ordered solely from nominal impeller diameter.
| Fig. | OEM service component | Part number | Construction / note |
|---|---|---|---|
| 12A | Shaft sleeve, mechanical-seal design | 305415918 | SAE 660 bronze |
| 12B | Shaft sleeve, packed design | 305415909 | SAE 660 bronze |
| 13 | Packing rings, set of five | 305415914 | Graphite yarn with PTFE |
| 14 | Lantern ring | 305415912 | PTFE |
| 15 | Packing gland, set of two | 305448011 | 300-series stainless steel |
| 20 | Mechanical seal assembly | 305415906 | Assembly, various materials |
| 21 | Packing gland assembly | 305415901 | Assembly, various materials |
| 90 | Mechanical seal | 305415904 | SiC/SiC/FKM with stainless steel |
| 100B | O-ring, stuffing/seal box | 305418923 | Nitrile |
| 35 | Shaft key, hydraulic end | 305418906 | 300-series stainless steel |
| 10 | Seal box, selected smaller sizes | 305448004 | Ductile iron |
| 11 | Stuffing box | 305448005 | Ductile iron |
| 110 | Nameplate | 305418901 | Stainless steel |
| 500A | Pipe plug, 3/8 in. NPT | 305418930 | CAD-plated steel |
| 500B | Pipe plug, 1/2 in. NPT | 305418931 | CAD-plated steel |
| 500C | Pipe plug, 1/4 in. NPT | 305418929 | CAD-plated steel |
| 510 | Impeller screw, selected smaller hydraulics | 305418902 | Stainless steel |
| 531 | Threaded stud, two required | 305418909 | CAD-plated steel |
Some small hardware, impeller washers, volute O-rings and fastening specifications vary by size. Use the catalog drawing for your exact pump rather than substituting fasteners or sealing components across hydraulics.
| Seal kit | OEM kit number | Contents from manufacturer parts list | Listed application |
|---|---|---|---|
| Mechanical-seal service kit | 305464107 | 12A shaft sleeve, 90 mechanical seal, 100A and 100B O-rings | Catalog HC 10-inch hydraulics |
| Packing service kit | 305464108 | 12B shaft sleeve, 13 packing rings, 14 lantern ring, 100A and 100B O-rings | Catalog HC 10-inch hydraulics |
Bearing Frame, Bearings and Shaft Replacement Parts
The HC frame-mount bearing assembly is separately serviced. If the shaft has scoring, the bearings are noisy or the housing is damaged, identify the original frame and the failed components before deciding whether to rebuild the existing pump or request a replacement assembly.
| Fig. | Bearing-frame component | OEM part number |
|---|---|---|
| 5 | Shaft | 305420901 |
| 6 | Bearing frame | 305413901 |
| 9 | Bearing frame cover | 305413921 |
| 16 | Bearing, pump side | 305418944 |
| 17 | Bearing, drive side | 305418951 |
| 22 | Bearing frame foot | 305411921 |
| 26A | Lip seal, pump side | 305418941 |
| 26B | Lip seal, drive side | 305418942 |
| 35 | Drive-end key | 305418933 |
| 36 | Bearing-frame plate | 305413922 |
| 37 | Shim, 0.005 in. | 305418935 |
| 37 | Shim, 0.010 in. | 305418936 |
| 37 | Shim, 0.015 in. | 305418937 |
| 500A | Pipe plug, 1/2 in. NPT | 305418931 |
| 500B | Pipe plug, 3/4 in. NPT | 305418932 |
| 502A | Grease fitting, 502A | 305418959 |
| 502B | Grease fitting, 502B | 305418960 |
| 503 | Water slinger | 305447008 |
| 530A | Bearing-frame hex capscrew | 305418918 |
| 530B | Bearing-frame hex capscrew | 305418919 |
| 532 | Set screw | 305418957 |
Repair or Replace a 10-Inch Frame Mount Pump?
- Replace selected wear parts: When the casing and shaft remain serviceable, request the correctly sized wear ring, seal kit, impeller or packing components.
- Rebuild the bearing frame: If noise or vibration comes from bearings, lip seals, or shaft wear, compare the required components with the cost of an assembly repair.
- Request a complete pump: When the volute is damaged, the hydraulic duty has changed, or multiple components need replacement, ask for the exact HC order number and confirm the drive-package scope.
How to Request Price and Availability
For complete pumps: Send Ken’s Distributing Company the required GPM, total dynamic head, available NPSH, liquid temperature, suction and discharge sizes, desired speed, driver details, and whether packing or mechanical sealing is preferred. Include the HC model or order number if replacing an existing unit.
For replacement parts: Send the pump nameplate model and manufacturer order number, the figure reference and part number, and a photo of the worn component or nameplate if available. We can confirm fit, price and availability before an order is placed. Request a quote from Ken’s Distributing Company or call 303-699-7845.
Frequently Asked Questions
Is the Franklin Electric 10-inch HC pump a complete motor-driven unit?
The catalog models on this page are bearing-frame assemblies. A motor, drive coupling, guard or base arrangement must be confirmed separately for your installation.
What is the difference between the 6 × 8-10L and 6 × 8-10?
Both have 6-inch discharge and 8-inch suction, but the 10L lists a 9.5-inch impeller and the 10 uses a 10.25-inch impeller. Their performance charts and part numbers are different; they should not be treated as interchangeable.
Can I order an OEM impeller, wear ring, shaft sleeve or bearing separately?
Yes. The manufacturer lists individual replacement components by pump size, including impellers, bronze wear rings, shaft sleeves and bearing-frame parts. Use the tables above to request the exact part number.
Which repair kits are listed for mechanical seals and packing?
The published mechanical-seal kit number is 305464107 and the packing kit number is 305464108. Match the existing seal arrangement and hydraulic size before ordering.
How do I choose among the 12 frame-mounted pump configurations?
Start with required flow and total dynamic head, verify suction conditions and driver speed, choose the hydraulic size, then select either the packing or mechanical-seal version in the ordering table.
Can I use the 1,900 GPM and 400-foot figures to size the pump?
No. Those are overall family reference limits from different operating curves. Select the specific model using the manufacturer’s flow-head curve and required duty point.
