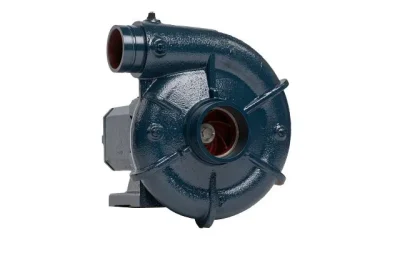

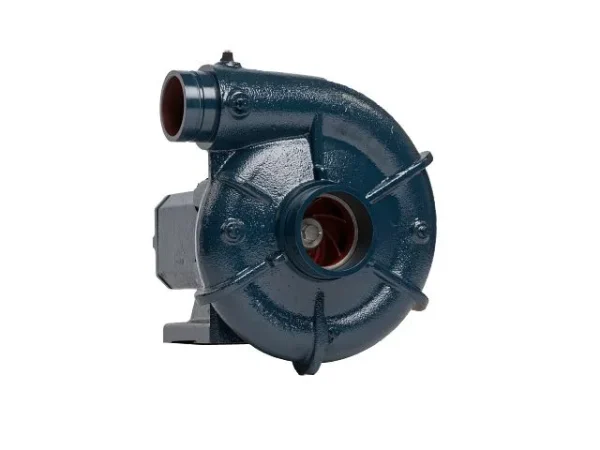

Franklin Electric Water Truck Pump

Understanding the XS439 Model Code

The Franklin Electric XS439 model designation tells you the key pump specifications in a compact code. Understanding this code makes it easier to verify you are ordering the correct configuration for your truck.

Counter-clockwise rotation models (CCW) are also available for truck installations where the drive source rotation requires it. Contact Ken’s Distributing at 303.699.7845 to confirm CCW model availability and lead time.

Drive Type Selection: Belt Frame vs. Hydraulic

The most important selection decision for a water truck pump is the drive type. Franklin Electric offers the XS439 water truck pump in two drive configurations that serve different truck setups.

If your truck uses a PTO-driven belt system to power the pump, the XS439-BFVP-CW belt frame model is the correct choice. If your truck has a hydraulic system with a hydraulic motor for the pump drive, you need to identify whether your hydraulic motor uses a B-fit or C-fit spline connection and order the corresponding hydraulic model. Confirm your drive type and spline specification with your truck manufacturer or hydraulic system documentation before ordering.

Construction Details

Heavy Cast Iron Volute with Back Pullout Design

The XS439 volute is heavy cast iron with a back pullout design that is specifically engineered for water truck service. The back pullout feature allows the pump end to be pulled straight out from the rear of the volute without disturbing the suction and discharge piping connections or removing the volute from the truck mounting. On a water truck where the pump is mounted in a tight space between the frame rails or behind the tank, being able to pull the pump end for seal replacement or impeller service without removing plumbing or remounting the unit saves hours of labor time on service calls.

The rotatable volute body allows the suction and discharge ports to be repositioned at different angles during installation to align with the truck plumbing layout. This flexibility reduces the number of elbows and offset fittings needed and simplifies installation significantly on custom truck configurations where port orientation varies from one truck to another.

Enclosed Cast Iron Impeller, Double Keyed

The enclosed cast iron impeller is double keyed to the pump shaft, meaning it uses two keys at 180-degree intervals rather than a single key for the shaft connection. This double keying arrangement provides more secure torque transfer under the load variations common in water truck operation, where the pump may be started under full head or cycled repeatedly throughout a shift. The enclosed impeller geometry delivers high hydraulic efficiency for clean water applications typical of water truck service.

Packed Box Seal with Carbon/Ceramic Option

The standard seal on water truck pump models is a packed box seal using compressed packing material around the shaft. Packed box seals are the traditional choice for water truck applications for a practical reason: they can be adjusted in the field by tightening the packing gland when they begin to drip more than normal. A water truck operator can carry spare packing and adjust the gland without taking the truck out of service for a pump teardown. The mechanical seal option with carbon and ceramic faces, BUNA elastomers, and 300 Series stainless hardware is available for operators who prefer a no-adjustment seal in their installation.

Heavy Duty Bearing Frame with External Grease Fittings

The bearing frame uses an oversized shaft and max-life bearings to handle the side loads common in belt drive configurations and the radial loads from the hydraulic motor on hydraulic drive models. External grease lubrication fittings allow bearing service in the field without pump disassembly. On a working water truck that runs daily in dusty environments, regular bearing greasing through external fittings is a simple maintenance step that protects a significant investment in the pump and truck installation.

Replaceable Shaft Sleeve

The replaceable shaft sleeve protects the pump shaft from wear at the seal contact area. Rather than replacing the entire shaft when the surface where the packing contacts it wears, the sleeve is replaced alone at a fraction of the cost. This is particularly important on water truck pumps that run packed box seals, because the packing material gradually wears the shaft surface at the contact point during normal operation.

Grooved Victaulic Connections

All three listed water truck pump models use grooved connections compatible with Victaulic-style couplings. Grooved connections are the standard choice for water truck plumbing because they allow fast assembly and disassembly of the suction and discharge connections for pump removal and installation without threading or flanged bolting. On a truck where the pump may need to come out for service and go back in the same day, grooved connections make that turnaround much faster.

Applications and Industries

The Franklin Electric water truck pump serves a broad range of industries where tanker trucks deliver water for various purposes.

• Dust Control: Construction sites, mining operations, unpaved road maintenance, and aggregate operations use water trucks to apply water to road surfaces and work areas to control airborne dust. The XS439 delivers the high flow rates needed to wet large surface areas quickly so the truck can cover more ground per shift. Dust control is the single largest use case for water truck pumps in North America.
• Road Building and Construction: Active road construction requires water for compaction of subgrade materials, concrete curing, and surface preparation. The water truck pump delivers water at the flow rates needed to cover roadbed widths on a moving truck efficiently.
• Agricultural Spray Operations: Agricultural water trucks carry water for field spraying, crop irrigation support, livestock watering in remote pastures, and orchard spraying. The XS439 handles the flow rates needed for agricultural spray systems mounted on tanker trucks.
• Firefighting Support: Tanker trucks used in rural and wildland firefighting support carry and deliver large volumes of water to active fire lines. The XS439’s high flow capacity and reliable performance under continuous duty are appropriate for this demanding application.
• Mining: Mining operations use water trucks extensively for dust suppression on haul roads, process water delivery, and equipment cleaning. The rugged cast iron construction of the XS439 handles the continuous daily service demands of mining site water truck operations.
• Municipal and Civil: Municipal water trucks deliver water for street cleaning, park irrigation, event support, and infrastructure construction. The XS439 serves these applications reliably with a service life appropriate for municipal fleet equipment.
• Over-the-Road Transport: Water trucks transporting potable or non-potable water for delivery to sites, filling operations, and remote water supply applications use the XS439 for efficient tank filling and discharge operations.

Features and Benefits

• Back Pullout for Truck Service: Pull the pump end for seal and impeller service without disconnecting the suction and discharge piping or removing the volute from the truck frame. Saves significant labor time on every service call on an installed water truck pump.
• Rotatable Volute for Installation Flexibility: Reposition suction and discharge ports during installation to align with your specific truck plumbing layout. Reduces the number of fittings needed and simplifies installation on custom truck configurations.
• Vertical or Horizontal Mounting: Both orientations are supported without requiring different pump models, giving the truck builder flexibility in choosing where and how the pump mounts on the truck frame.
• Double Keyed Enclosed Impeller: The double key connection handles the torque load variations of water truck operation reliably. The enclosed design delivers high efficiency for the clean water typical of water truck applications.
• External Grease Fittings: Service bearings in the field without disassembly. On a truck working daily in dusty conditions, regular bearing lubrication through external fittings is a simple step that protects the pump from premature bearing failure.
• Replaceable Shaft Sleeve: Replace the sleeve rather than the entire shaft when the packing contact area wears. A cost-effective maintenance solution that extends the service life of the pump significantly in packed box seal installations.
• Grooved Victaulic Connections: Fast connect and disconnect for suction and discharge piping on pump removal and installation. The standard choice for professional water truck plumbing.
• Belt Drive and Hydraulic Drive Options: Choose the drive type that matches your truck’s power system. Three model configurations cover belt frame drive, SAE B hydraulic, and SAE C hydraulic options.
• Clockwise and Counter-Clockwise Rotation: Available in both rotation directions to match the drive source rotation without additional drive components. Confirm your required rotation before ordering.
• Packed Box or Mechanical Seal: Choose the seal type that matches your maintenance practice. Packed box for field-adjustable simplicity, mechanical seal for no-adjustment operation.

The Franklin Electric XS439: Our Most Popular Water Truck Pump Model

The XS439 is the specific model designation within the XS Series that has become the most widely specified water truck pump in the Franklin Electric lineup. If you have searched for water truck pump specifications and found the XS439 referenced, you are in the right place.

The XS439 designation indicates the 3×4-9 pump size, meaning a 3-inch discharge port, 4-inch suction port, and 9-inch impeller diameter. This size provides the flow rate and pressure combination that suits the majority of tanker truck applications from dust control to agricultural spray. It is the balance point in the XS Series between flow capacity and practical truck mounting size that has made it the go-to specification for water truck builders and fleet operators across the country.

For detailed specifications, performance curves, and model-specific ordering information for the XS439, visit our dedicated XS439 product page. Or call Ken’s Distributing at 303.699.7845 and we will pull up the right model for your truck and get it ordered.

View our Franklin Electric XS439 water truck pump page for specific model performance data and ordering details.

Installation on Tanker Trucks: Mounting and Plumbing Guide

• Mounting Position: The XS439 can be mounted vertically or horizontally depending on available space on the truck frame. Most water truck installations mount the pump horizontally between the frame rails or at the rear of the tank. Secure the pump base to the truck frame with appropriate vibration-isolating hardware to reduce vibration transmission to the truck structure during operation.
• Volute Positioning: Before final mounting, rotate the volute to position suction and discharge ports in the orientation that best aligns with your plumbing layout. Tighten the volute mounting fasteners to specification after positioning.
• Suction Plumbing: The tank-to-pump suction line uses grooved Victaulic couplings. Size the suction line to the pump suction port. Keep the line short and direct from the tank outlet to the pump suction. Install a tank outlet valve to allow pump isolation for service.
• Discharge Plumbing: The pump discharge connects to the truck spray system, hose reel, or discharge manifold through grooved couplings. Install a discharge check valve to prevent backflow when the pump stops.
• Drive Connection: For belt drive, align pulleys carefully before tensioning the belt. For hydraulic drive, connect the hydraulic motor to the pump spline shaft and ensure all hydraulic fittings are properly torqued and sealed before pressurizing the system.
• Rotation Verification: Before connecting the suction and discharge plumbing, jog the drive briefly to confirm the pump rotates in the correct direction. Reverse rotation significantly reduces flow and pressure output.
• Packing Adjustment: On packed box seal models, the packing gland should be adjusted to allow a slow controlled drip of two to three drops per minute during operation for proper seal cooling and lubrication. Overtightening stops the drip and causes rapid packing and shaft sleeve wear.
• Bearing Grease Schedule: Establish a regular bearing greasing schedule based on hours of operation and operating conditions. Dusty environments require more frequent greasing than clean conditions. Use the external grease fittings with the grease type specified in the Franklin Electric maintenance documentation.

Replacement Parts for Franklin Electric Water Truck Pumps

Ken’s Distributing Company stocks genuine Franklin Electric XS Series replacement parts for water truck pump installations including packing sets, mechanical seals, shaft sleeves, impellers, and bearing kits. Keeping critical spare parts on hand minimizes truck downtime when a seal or packing needs service in the field.

Call us at 303.699.7845 to identify the correct part by model number and get it shipped fast. We can pull up the right packing set, sleeve size, or bearing kit for your specific XS439 model configuration and have it on the way the same day in most cases.

Browse our Franklin Electric replacement parts and repair kits for the XS Series water truck pump and all other Franklin Electric pump lines.

Frequently Asked Questions

What size pump do I need for a water truck?

The most widely specified water truck pump in the Franklin Electric lineup is the XS439, a 3×4-9 end suction centrifugal pump with a 3-inch discharge port, 4-inch suction port, and 9-inch impeller. This size handles the flow rates required for most dust control, road building, and agricultural tanker truck applications. For trucks with higher flow requirements, larger XS Series models with 13-inch impellers are available. Call Ken’s Distributing at 303.699.7845 and we will help size the right pump for your truck’s tank size, spray system, and required flow rate.

How many GPM does a water truck pump need?

Required GPM depends on your application. Dust control trucks typically need 200 to 500 GPM depending on spray bar width and operating speed. Firefighting support tankers often target similar ranges. Agricultural spray trucks vary widely by equipment. The Franklin Electric XS439 covers a GPM range appropriate for most of these applications. Contact Ken’s Distributing for specific performance curve data showing GPM at various head pressures for the XS439 and larger XS Series models.

What is the difference between B-fit and C-fit hydraulic motor connections?

SAE B-fit uses a 13-tooth involute spline with 16/32 inch pitch for connection to smaller hydraulic motors. SAE C-fit uses a 14-tooth involute spline with 12/24 inch pitch for larger hydraulic motors used on trucks and equipment with higher hydraulic output capacity. Match the fit designation to your hydraulic motor specification. These are not interchangeable without an adapter.

Can a centrifugal pump work on a water truck?

Yes. Centrifugal pumps are the standard pump type used on water trucks for dust control, road building, and agricultural applications. The Franklin Electric XS439 centrifugal pump is specifically engineered and widely used in water truck service. Centrifugal pumps deliver the high flow rates needed for water truck spray systems efficiently and reliably with appropriate drive speed and sizing.

What is the best Franklin Electric model for a water truck?

The Franklin Electric XS439 in the appropriate drive configuration for your truck is the most widely specified and proven water truck pump in the Franklin Electric lineup. Available in belt drive, SAE B hydraulic, and SAE C hydraulic drive options with both clockwise and counter-clockwise rotation, the XS439 covers the majority of water truck installation requirements. View our dedicated XS439 page or call Ken’s Distributing at 303.699.7845 for specific model recommendations based on your truck and application.

What is a packed box seal on a water truck pump?

A packed box seal uses compressed packing rope wound around the pump shaft to create a controlled seal that prevents excessive water leakage at the shaft exit point. It is the traditional seal choice for water truck pumps because it can be adjusted in the field by tightening the packing gland when dripping increases. A small controlled drip of two to three drops per minute during operation is normal and necessary for packing lubrication and cooling. Packed box seals are simple, reliable, and field-serviceable, making them the practical choice for most water truck installations.

Can I get water truck pump replacement parts from Kendisco?

Yes. Ken’s Distributing Company stocks genuine Franklin Electric XS Series water truck pump replacement parts including packing sets, mechanical seals, shaft sleeves, impellers, and bearing kits. Call 303.699.7845 for availability and fast shipping on all water truck pump service components.
