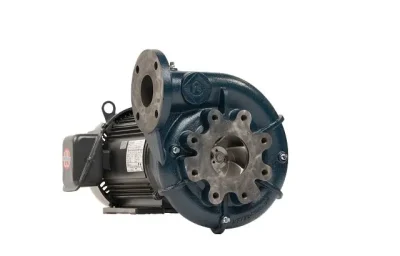

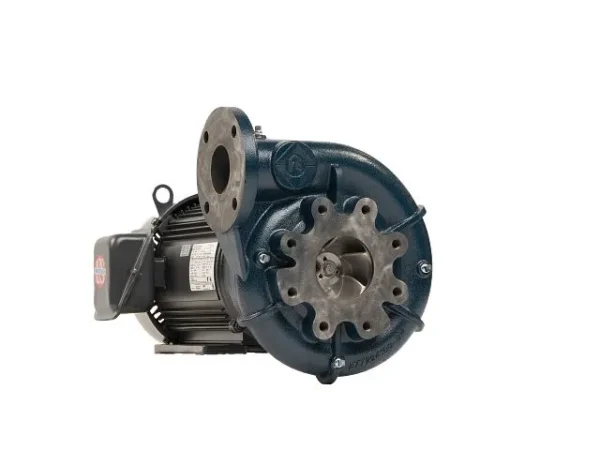

Franklin Electric AG Series Close-Coupled Centrifugal Pump

What Is the Franklin Electric AG Series Close Coupled Centrifugal Pump?

The Franklin Electric AG Series Close Coupled Centrifugal Pump is a high-flow, heavy-duty centrifugal pump designed for agricultural irrigation, commercial water supply, municipal infrastructure, and industrial pumping applications. Available at Ken’s Distributing, the AG Series produces flow rates ranging from 65 to 900 gallons per minute, making it one of the most capable and widely used close coupled centrifugal pump families in the entire Franklin Electric product line.

What makes the Franklin Electric AG Series Close Coupled Centrifugal Pump especially popular among contractors, engineers, and agricultural operators is its combination of industrial-grade construction and practical serviceability. The all-iron construction, CA6NM stainless steel impellers, back pullout design, and replaceable 416 stainless steel shaft sleeves mean this pump is built to handle demanding, continuous-duty applications while remaining straightforward to maintain and repair in the field.

Kendisco carries the Franklin Electric AG Series in multiple HP, phase, and motor enclosure configurations. As part of a 9-pump family covering the most popular hydraulic performance ranges, the AG Series offers exceptional flexibility for matching the right pump to your specific flow rate, pressure, and system requirements. Whether you are setting up a large-scale irrigation system, a municipal water distribution network, or a commercial pressure boosting installation, the AG Series has a configuration that fits.

What Does AG Stand For and Why Is It the Go-To Pump for Agricultural and Commercial Use?

The AG designation stands for Agricultural, reflecting the series’ roots as a pump designed for high-volume water transfer in farming and irrigation applications. However, over the years the Franklin Electric AG Series Close Coupled Centrifugal Pump has proven itself in a far wider range of demanding applications beyond agriculture, including municipal water systems, industrial wash-down operations, and commercial pressure boosting systems.

Here is why the AG Series has become a top choice across these diverse applications:

• Massive Flow Range: With flow rates from 65 to 900 GPM across the 9-pump family, the AG Series covers an exceptionally wide range of hydraulic requirements from a single pump platform.
• 9-Pump Family: The AG Series is not a single pump model. It is a family of 9 pump configurations covering the most popular hydraulic performance curves, so you can select the exact combination of flow rate and head pressure that matches your system needs.
• CA6NM Stainless Steel Impellers: CA6NM is a high-strength martensitic stainless steel alloy that provides superior corrosion resistance and mechanical durability compared to standard cast iron impellers. This is a critical advantage in agricultural environments where water quality varies.
• All-Iron Construction: The ASTM-A48 CL30 cast iron volute provides heavy-duty strength and durability for demanding, long-running installations.
• Both 1800 and 3600 RPM Motor Options: Unlike many close coupled centrifugal pump series that are limited to a single motor speed, the AG Series supports both 1800 and 3600 RPM NEMA standard JM and JP frame motors, giving you more flexibility to match motor speed to your application requirements.

If you need a pump that can handle high-volume water transfer in tough agricultural, commercial, or industrial environments, the Franklin Electric AG Series is a proven and reliable solution. The team at Ken’s Distributing can help you identify the right AG Series model for your specific flow rate, head pressure, and installation requirements.

Key Features and Benefits of the Franklin Electric AG Series Close Coupled Centrifugal Pump

• Part of a 9-Pump Family: The AG Series covers the most popular hydraulic performance ranges, supporting flow rates from 50 to 900 GPM across the full family. This gives engineers and installers the flexibility to select the exact hydraulic match for their application.
• All-Iron Construction with ASTM-A48 CL30 Cast Iron Volute: The durable cast iron volute provides long-term strength and reliability in demanding environments. ASTM-A48 CL30 is a high-quality gray cast iron standard commonly specified in commercial and industrial pump applications.
• CA6NM Stainless Steel Enclosed Impellers: The high-performance enclosed impellers are made from CA6NM stainless steel for superior corrosion resistance, erosion resistance, and consistent water delivery over the service life of the pump.
• 416 Stainless Steel Shaft Sleeves: Replaceable shaft sleeves made from 416 stainless steel protect the pump shaft from wear and corrosion. When wear occurs, the sleeve can be replaced without replacing the entire shaft, reducing maintenance costs significantly.
• Back Pullout Design: The rotating element of the pump, including the impeller, shaft, seal, and bearings, can be pulled out from the back of the casing for service and maintenance without disconnecting the suction or discharge piping.
• Flexible Seal Options: Available with standard carbon, ceramic, nitrile, and 316 stainless steel mechanical seals, or a packing box option for applications where controlled leakage is acceptable.
• Flexible Connection Options: Available with threaded NPT connections or 125 pound flanged connections, allowing integration with different piping systems and installation standards.
• NEMA Standard JM and JP Frame Motors: Available in both 1800 RPM and 3600 RPM configurations, with NEMA standard JM and JP shaft designs for broad motor compatibility and easy motor replacement.
• ODP and TEFC Motor Enclosures: Choose between Open Drip Proof enclosures for clean, dry indoor environments, or Totally Enclosed Fan Cooled enclosures for outdoor, dusty, or humid installations.
• Vertical or Horizontal Mounting: Can be installed in either vertical or horizontal orientation to accommodate different system layouts and available installation space.
• Designed for Increased Pumping Efficiency: The hydraulic design of the AG Series is optimized for high efficiency across the full range of flow and head conditions, reducing energy costs in continuous-duty applications.

Technical Specifications

Specification	Detail
Pump Family	9-pump family covering most popular hydraulic ranges
Flow Rate Range	50 to 900 GPM (family range), 65 to 900 GPM (AG Series)
Available HP (Listed Models)	3 HP, 5 HP
Phase Options	Single-Phase and Three-Phase available
Voltage (Single-Phase)	230 VAC
Voltage (Three-Phase)	230 VAC / 460 VAC
Motor Speed Options	1800 RPM and 3600 RPM
Motor Frame	NEMA Standard JM and JP Frame
Motor Enclosure Options	ODP (Open Drip Proof) or TEFC (Totally Enclosed Fan Cooled)
Pump Design	Close Coupled, Back Pullout
Volute Material	ASTM-A48 CL30 Cast Iron
Impeller Material	CA6NM Stainless Steel, Enclosed
Shaft Sleeve Material	416 Stainless Steel, Replaceable
Seal Options	Carbon/Ceramic/Nitrile/316 SS Mechanical Seal or Packing Box
Connection Options	Threaded NPT or 125# Flanged
Mounting Options	Vertical or Horizontal

Order Information

A1 x 1.5-7    NPT MECH. SEAL    3600 RPM

A1.5 x 2-6    NPT MECH. SEAL    3600 RPM

AL1.5 x 2-6    NPT MECH. SEAL    1800 RPM

A2 x 2.5-6    NPT MECH. SEAL    3600 RPM

AL2 x 2.5-6    NPT MECH. SEAL    1800 RPM

A2 x 3-8    FLG MECH. SEAL    3600 RPM

A2 x 3-8    NPT MECH. SEAL    3600 RPM

AL2 x 3-8    FLG MECH. SEAL    1800 RPM

AL2 x 3-8    NPT MECH. SEAL    1800 RPM

A2.5 x 3-6    FLG MECH. SEAL    3600 RPM

A2.5 x 3-6    NPT MECH. SEAL    3600 RPM

AL2.5 x 3-6    NPT MECH. SEAL    1800 RPM

A2.5 x 4-10    FLG MECH. SEAL    3600 RPM

AL2.5 x 4-10    FLG MECH. SEAL    1800 RPM

A3 x 4-6    FLG MECH. SEAL    3600 RPM

A3 x 4-6    NPT MECH. SEAL    3600 RPM

AL3 x 4-6    FLG MECH. SEAL    1800 RPM

AL3 x 4-6    NPT MECH. SEAL    1800 RPM

A3 x 4-9    FLG MECH. SEAL    3600 RPM

A3 x 4-9    NPT MECH. SEAL    3600 RPM

AL3 x 4-9    NPT MECH. SEAL    1800 RPM

AL3 x 4-9    FLG MECH. SEAL    1800 RPM

AL3 x 4-10    FLG MECH. SEAL    1800 RPM

AG Series vs. Other Franklin Electric Close Coupled Centrifugal Pumps

Choosing the right Franklin Electric close coupled centrifugal pump depends on your application, required flow rate, and operating environment. Here is how the Franklin Electric AG Series Close Coupled Centrifugal Pump compares to the other main close coupled series in the Franklin Electric lineup:

Feature	AG Series	HC Series	FAC Series	D Series
Pump Family Size	9-pump family	Single series	Single series	Single series
Flow Rate Range	65 to 900 GPM	High capacity	Moderate	Moderate
Motor Speed Options	1800 and 3600 RPM	3600 RPM	3600 RPM	Varies
Volute Material	ASTM-A48 CL30 Cast Iron	Ductile Iron	Cast Iron	Cast Iron
Impeller Material	CA6NM Stainless Steel	CA6NM Stainless Steel	Stainless Steel	Cast Iron
Shaft Sleeve Material	416 Stainless Steel	Replaceable	Not specified	Not specified
Connection Options	NPT Threaded or 125# Flanged	Flanged	FNPT Threaded	Varies
Best For	Agriculture, irrigation, municipal, industrial, high-flow applications	Heavy-duty commercial, industrial, mining, municipal	Hot water, general service, boosting, jockey pump	General purpose residential and commercial water transfer

The AG Series is the top choice when you need a wide range of flow rate options, dual motor speed capability, and premium construction materials in a close coupled centrifugal pump platform. For the absolute toughest industrial and mining applications, the HC Series offers ductile iron and silicon carbide seal options. For hot water and general service applications, the FAC Series is a strong option. For standard general purpose water transfer, the D Series is a cost-effective fit. Not sure which series matches your project? Contact Ken’s Distributing and our team will help you make the right selection.

Applications: Where Is the Franklin Electric AG Series Close Coupled Centrifugal Pump Used?

The Franklin Electric AG Series Close Coupled Centrifugal Pump is designed for high-flow, demanding pumping applications across agriculture, commercial, municipal, and industrial sectors. Here are the most common uses:

• Agricultural Irrigation: The AG Series is a proven choice for large-scale crop irrigation systems, flood irrigation, drip irrigation supply, and farm water distribution from ponds, rivers, and reservoirs. The high GPM range and CA6NM impeller make it well suited for variable water quality conditions found in agricultural settings.
• Commercial and Industrial Pressure Boosting: Used in commercial building water supply systems and industrial pressure boosting installations where consistent high-volume water delivery is required.
• Municipal Water Supply and Treatment: Suitable for municipal water supply, distribution, and treatment plant applications where reliability, efficiency, and long service life are critical requirements.
• Wash-Down Operations: The high flow rate capability makes the AG Series an ideal choice for manufacturing wash-down, food processing wash-down, and agricultural wash-down operations that require large volumes of water at consistent pressure.
• Water Recirculation: Works well in water recirculation systems for cooling, process water recycling, and industrial water reuse applications.
• Construction and Dewatering: The durable construction and back pullout design make the AG Series practical for construction site water supply and dewatering applications where rough conditions are typical.
• Livestock Watering Systems: Provides reliable water supply for livestock watering operations on farms and ranches where high-volume, consistent water delivery is essential.

Installation and Maintenance Details

The Franklin Electric AG Series Close Coupled Centrifugal Pump is built for tough applications but designed to be practical to install and maintain over the long term. Here is what you need to know:

• Back Pullout Design: The rotating element, including the impeller, shaft, seal, and bearings, can be removed from the back of the volute casing without disconnecting the suction or discharge piping. This feature saves significant time during scheduled maintenance and emergency repairs.
• Replaceable 416 Stainless Steel Shaft Sleeves: When shaft wear occurs, the stainless steel sleeve can be replaced without replacing the entire shaft, keeping long-term maintenance costs low.
• Connection Flexibility: Choose between threaded NPT connections or 125 pound flanged connections to match your piping system and installation standards.
• Motor Speed Selection: Available with 1800 RPM or 3600 RPM NEMA standard JM and JP frame motors, giving you the ability to match motor speed to your specific flow rate and head pressure requirements.
• Motor Enclosure Options: Select ODP for clean, dry indoor environments or TEFC for outdoor, dusty, or humid installation conditions.
• Seal Options: Standard carbon, ceramic, nitrile, and 316 stainless steel mechanical seal, or packing box option for applications where controlled leakage is acceptable. Choose based on your water quality and operating environment.
• Vertical or Horizontal Mounting: The AG Series can be installed in either orientation to fit your system layout and available space.

If you need help selecting the right motor speed, connection type, seal option, or motor enclosure for your specific installation, reach out to the team at Ken’s Distributing. We are here to help you configure the AG Series pump for optimal performance in your application.

Compatible Replacement Parts and Accessories

Keeping your Franklin Electric AG Series Close Coupled Centrifugal Pump running at peak performance requires using genuine Franklin Electric replacement parts. Kendisco stocks a comprehensive range of compatible AG Series parts and accessories, including:

• Mechanical seal replacement kits (carbon/ceramic/nitrile/316 SS)
• Packing box components and packing sets
• CA6NM stainless steel impeller assemblies
• 416 stainless steel shaft sleeve replacements
• Bearing replacements
• Gasket and O-ring kits
• Wear ring replacements

The AG Series repair parts page at Kendisco is one of the most visited pages on our site, which tells us that AG Series owners value having easy access to genuine parts. Using authentic Franklin Electric parts protects your pump warranty and ensures the AG Series continues to deliver the flow rates and efficiency it was designed for.

View Franklin Electric AG Series Repair Parts at Ken’s Distributing

View All Franklin Electric Replacement Parts at Ken’s Distributing

Frequently Asked Questions About the Franklin Electric AG Series Close Coupled Centrifugal Pump

What does AG stand for in the Franklin Electric AG Series?

AG stands for Agricultural. The Franklin Electric AG Series Close Coupled Centrifugal Pump was originally designed for high-volume agricultural irrigation and water transfer applications. However, the AG Series has proven equally reliable in municipal, commercial, and industrial environments, making it one of the most versatile close coupled centrifugal pump families available. Ken’s Distributing carries the full AG Series lineup for all of these applications.

What is the flow rate range of the AG Series?

The Franklin Electric AG Series Close Coupled Centrifugal Pump produces flow rates ranging from 65 to 900 gallons per minute. As part of a broader 9-pump family, the flow rate coverage extends from 50 to 900 GPM across all configurations, covering the most popular hydraulic performance ranges for agricultural, commercial, and industrial pumping applications.

What motor speed options are available for the AG Series?

The Franklin Electric AG Series Close Coupled Centrifugal Pump supports both 1800 RPM and 3600 RPM NEMA standard JM and JP frame motors. This dual motor speed capability gives engineers and installers the flexibility to match the motor speed to the specific flow rate and head pressure requirements of the application. Contact Ken’s Distributing for help selecting the right motor speed for your system.

What impeller material is used in the AG Series?

The Franklin Electric AG Series uses CA6NM stainless steel enclosed impellers. CA6NM is a high-strength martensitic stainless steel alloy that provides excellent corrosion resistance, erosion resistance, and mechanical strength compared to standard cast iron impellers. This is especially important in agricultural environments where water quality can be variable.

What seal options are available?

The Franklin Electric AG Series Close Coupled Centrifugal Pump is available with standard carbon, ceramic, nitrile, and 316 stainless steel mechanical seals for leak-free operation, or a packing box option for applications where some controlled leakage is acceptable. Kendisco can help you select the right seal type for your water quality and operating environment.

What connection options are available for the AG Series?

The AG Series is available with threaded NPT connections or 125 pound flanged connections, providing flexibility to integrate with different piping systems and installation standards. Ken’s Distributing carries models with both connection types.

Can the AG Series be used for municipal water supply?

Yes. The Franklin Electric AG Series Close Coupled Centrifugal Pump is commonly used in municipal water supply, distribution, and treatment plant applications. The combination of high flow rates, durable construction, CA6NM stainless steel impellers, and multiple motor and seal options makes the AG Series a reliable and efficient choice for municipal infrastructure.

Where can I find AG Series repair parts?

Kendisco stocks a comprehensive range of genuine Franklin Electric AG Series repair parts, including mechanical seals, impellers, shaft sleeves, bearings, and gasket kits. Visit our dedicated AG Series Repair Parts page or browse our full Franklin Electric replacement parts catalog.

Where can I buy the Franklin Electric AG Series Close Coupled Centrifugal Pump?

You can purchase the Franklin Electric AG Series Close Coupled Centrifugal Pump directly from Ken’s Distributing at Kendisco.com. Our team is available to assist with model selection, motor speed and enclosure configuration, seal and connection options, compatible repair parts, and any technical questions about the AG Series pump.
