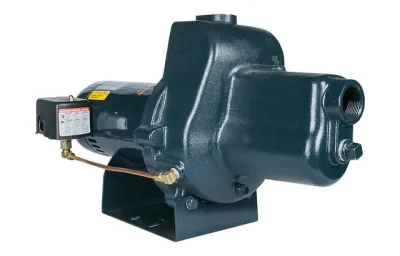

Franklin Electric VersaJet Pro Cast Iron Shallow Well Jet Pump
What Is the Franklin Electric VersaJet Pro Cast Iron Shallow Well Jet Pump?
The Franklin Electric VersaJet Pro Cast Iron Shallow Well Jet Pump is a reliable and versatile water pump built for residential and light commercial water supply systems. Available at Ken’s Distributing, this pump draws water from shallow wells with a suction lift of up to 25 feet and comes in three horsepower options: ½ HP, ¾ HP, and 1 HP.
What makes the VersaJet Pro stand out from the standard VersaJet model is its patent-pending Quick-Change nozzle system. This feature lets users switch between high pressure and high flow modes in just a few minutes, without removing the pump casing or touching the existing plumbing. If you are looking for a shallow well pump that gives you real flexibility in the field, the VersaJet Pro is a smart choice.
Kendisco carries the full Franklin Electric VersaJet Pro lineup, and each unit is NSF/ANSI/CAN 372 certified for safe use in potable (drinking) water systems. With a cast iron housing, stainless steel components, and a pre-installed pressure switch, this pump is built to last.
Key Features and Benefits of the VersaJet Pro Cast Iron Shallow Well Jet Pump
- Patent-Pending Quick-Change Nozzle System: Switch between high pressure and high flow modes using one of three included nozzles and a standard Allen wrench. No case removal and no plumbing disruption is needed.
- Enhanced Hydraulic Performance: The impeller features a stainless steel insert, and the diffuser, jet nozzle, and venturi are molded with Modified PPO (Polyphenylene Oxide) for maximum hydraulic efficiency.
- Reliable Mechanical Seal: A phenolic and ceramic shaft seal with nitrile elastomers and stainless steel hardware provides long-lasting, leak-free operation.
- Heavy-Duty Cast Iron Construction: The cast iron pump case includes both pressure and drain ports for easy serviceability and a long service life.
- Stainless Steel Floating Eye Seal: This seal ensures consistent performance and hydraulic efficiency across all operating modes.
- Pre-Installed Pressure Switch: Factory set at 30/50 PSI so the pump is ready for immediate operation right out of the box.
- UL778 Listed Motor: The indoor and outdoor rated square-flange single-phase motor is approved for safe residential and commercial installation.
- NSF/ANSI/CAN 372 Certified: This pump is certified safe for use in potable drinking water supply systems.
- Dual Voltage Motor: Operates on 115 VAC or 230 VAC for flexible installation in any residential electrical setup.
- Three Nozzle Modes Included: Every unit comes with Standard, High Flow, and High Pressure nozzles right in the box.
Technical Specifications
| Specification | Detail |
|---|---|
| Available HP | ½ HP, ¾ HP, 1 HP |
| Phase | Single-Phase |
| Voltage | 115 VAC / 230 VAC (Dual Voltage) |
| Inlet Port Size | 1-¼ inch |
| Outlet Port Size | 1 inch |
| Max Water Temperature | 120°F / 49°C |
| Maximum Working Pressure | 75 PSI |
| Pressure Switch Setting | 30/50 PSI (Pre-installed) |
| Housing Material | Cast Iron |
| Impeller Material | Modified PPO with Stainless Steel Insert |
| Shaft Seal | Phenolic/Ceramic with Nitrile Elastomers |
| Motor Listing | UL778 (Indoor/Outdoor) |
| Certification | NSF/ANSI/CAN 372 — Potable Water |
| Max Suction Lift | Up to 25 feet (shallow well) |
Standard Nozzle
High Flow
High Pressure
Order Information
VersaJet Pro Cast Iron Shallow Well Jet Pump
VersaJet Pro vs. VersaJet Standard: Which Model Is Right for You?
Both the VersaJet Pro and the standard VersaJet are cast iron shallow well jet pumps from Franklin Electric, but they are built for slightly different needs. Here is a quick comparison to help you choose the right one:
| Feature | VersaJet Pro | VersaJet Standard |
|---|---|---|
| Quick-Change Nozzle System | Yes, 3 nozzles included | No |
| Adjustable Flow and Pressure Modes | High Flow and High Pressure | Standard mode only |
| HP Range | ½, ¾, 1 HP | ½, ¾, 1 HP |
| Cast Iron Housing | Yes | Yes |
| NSF Certified | Yes | Yes |
| Best For | Residential systems that need flexible pressure or flow options | Standard residential shallow well water supply |
Choose the VersaJet Pro if you need the flexibility to switch between high pressure for household use and high flow for irrigation or tank filling, all without modifying your plumbing. Choose the VersaJet Standard if you have a straightforward, fixed pressure requirement and do not need the extra nozzle options.
Not sure which model fits your setup? Contact Ken’s Distributing and our team will help you find the right Franklin Electric pump for your application.
Applications: Where Is the VersaJet Pro Cast Iron Shallow Well Jet Pump Used?
The Franklin Electric VersaJet Pro Cast Iron Shallow Well Jet Pump is a good fit for a wide range of water supply needs. Here are the most common applications:
- Residential Well Water Supply: Works as the primary pressure system for homes drawing water from shallow wells up to 25 feet deep.
- Lawn and Garden Irrigation: High flow mode delivers more GPM for sprinkler systems and garden irrigation setups.
- Light Commercial Water Systems: Suitable for small commercial properties that need reliable pressure from a shallow well source.
- Pressure Boosting: Can boost low pressure water supply from surface water sources or storage tanks.
- Seasonal Cabins and Cottages: A dependable pressure system for seasonal or vacation properties.
- Small Scale Agricultural Water Supply: Handles light agricultural water transfer from shallow water sources on farms and rural properties.
Please note that the VersaJet Pro is designed for shallow wells with suction lifts of 25 feet or less. If your well is deeper than 25 feet, please see the Franklin Electric C-Series Cast Iron Convertible Jet Pump, which supports both shallow and deep well configurations up to 90 feet.
Installation and Motor Details
The Franklin Electric VersaJet Pro Cast Iron Shallow Well Jet Pump is designed to make installation as straightforward as possible. Here is what you need to know before you get started:
- Motor Type: UL778-listed square-flange single-phase motor, rated for both indoor and outdoor installation environments.
- Voltage: Dual-voltage operation, configurable for 115 VAC or 230 VAC at the time of installation.
- Pressure Switch: Pre-installed and factory set at 30/50 PSI, so the pump is ready to operate as soon as it is connected.
- Port Connections: 1-¼ inch inlet and 1 inch outlet on all models, compatible with standard residential plumbing fittings.
- Nozzle Adjustment: You can switch between Standard, High Flow, and High Pressure nozzles using the included Allen wrench. No plumbing changes are required.
- Potable Water Safe: NSF/ANSI/CAN 372 certified, making it suitable for drinking water systems.
For a complete installation, Ken’s Distributing recommends pairing the VersaJet Pro with a pressure tank, foot valve, check valve, and pressure gauge. If you have any questions about installation requirements or compatible accessories, feel free to reach out to our team at Ken’s Distributing for guidance.
Compatible Replacement Parts and Accessories
Keeping your Franklin Electric VersaJet Pro Cast Iron Shallow Well Jet Pump running at its best means using genuine Franklin Electric replacement parts. Kendisco carries a full range of compatible parts and accessories for this pump series, including:
- Mechanical seal kits
- Nozzle and venturi replacement sets
- Pressure switch replacements
- Impeller assemblies
- Gasket and O-ring kits
Using genuine parts helps protect your pump warranty and ensures the pump continues to perform as Franklin Electric designed it. Browse the full selection of compatible parts at Kendisco today.
View Franklin Electric Replacement Parts at Kendisco
Frequently Asked Questions About the VersaJet Pro Cast Iron Shallow Well Jet Pump
What is the maximum well depth the VersaJet Pro can pump from?
The Franklin Electric VersaJet Pro is designed for shallow wells with a maximum suction lift of 25 feet. If your well is deeper than 25 feet, you will need a convertible or deep well pump that uses a submersible ejector assembly.
What is the Quick-Change nozzle system on the VersaJet Pro?
The Quick-Change nozzle system is a patent-pending feature that lets you switch between three operating modes, Standard, High Flow, and High Pressure, by swapping the nozzle with an Allen wrench. You do not need to remove the pump case or change your plumbing to make the switch.
What is the difference between High Flow and High Pressure mode on the VersaJet Pro?
High Flow mode increases the pump’s GPM output, which is useful for irrigation systems and filling tanks quickly. High Pressure mode increases the discharge pressure, which is better suited for demanding household pressure systems. Standard mode balances both flow and pressure for typical everyday residential water supply.
Is the VersaJet Pro safe for drinking water?
Yes. The Franklin Electric VersaJet Pro is NSF/ANSI/CAN 372 certified, which confirms it is safe for use in potable drinking water supply systems. You can use it with full confidence for your home water supply.
What voltage does the VersaJet Pro operate on?
The VersaJet Pro is a dual-voltage pump. It can be configured for either 115 VAC or 230 VAC single-phase power at the time of installation, giving you flexibility to match your home’s electrical setup.
Does the VersaJet Pro come with a pressure switch?
Yes. All VersaJet Pro models come with a pre-installed pressure switch that is factory set at 30/50 PSI. You do not need to purchase a separate pressure switch for a standard installation.
What is the difference between the VersaJet Pro and the standard VersaJet?
The VersaJet Pro includes the Quick-Change nozzle system, which gives you the ability to select High Flow or High Pressure operating modes. The standard VersaJet does not have this feature. Both pumps share the same cast iron construction, HP range, and NSF/ANSI/CAN 372 certification.
Where can I buy the Franklin Electric VersaJet Pro?
You can purchase the Franklin Electric VersaJet Pro Cast Iron Shallow Well Jet Pump directly through Ken’s Distributing at Kendisco.com. Our team is available to help with product selection, pricing, and technical support.
Related Products at Ken’s Distributing
- Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump – The standard model without the Quick-Change nozzle system
- SWJ Series Non-Corrosive Shallow Well Jet Pump – Thermoplastic construction for corrosive or brackish water sources
- Franklin Electric C-Series Cast Iron Convertible Jet Pump – Suitable for both shallow and deep wells up to 90 feet
- Franklin Electric Replacement Parts – Genuine OEM parts for all VersaJet Pro models, available at Kendisco
