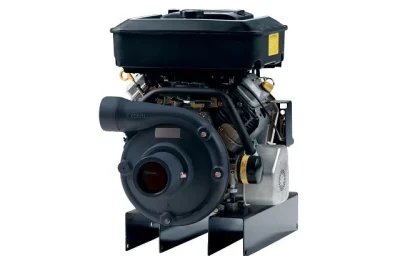

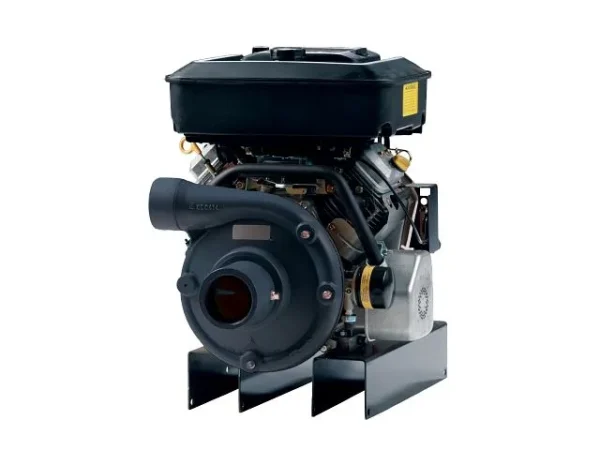

The Franklin Electric FNG-23V Gas Engine Centrifugal Pump is a self-contained, high-performance portable pump powered by a 23 HP Briggs and Stratton Vanguard V-Twin engine. Designed for water truck service, agricultural irrigation, construction dewatering, and municipal pumping where no electrical power source is available, the FNG-23V delivers serious flow capacity from a compact, close-coupled package that can be moved where the work is. At Ken’s Distributing Company, we stock the FNG-23V and carry genuine replacement parts for this specific model so you can keep the pump running when it counts.
The FNG-23V is Franklin Electric’s close-coupled gas engine driven centrifugal pump built around a 23 HP Briggs and Stratton Vanguard V-Twin engine. The close-coupled design threads the cast iron impeller directly onto the engine output shaft, eliminating the need for a separate bearing frame, coupling, and pump shaft assembly. This makes the FNG-23V more compact, lighter, and mechanically simpler than frame mount engine driven pump configurations while still delivering the flow rates and head needed for demanding real-world applications.
The FNG designation identifies this as a Franklin Electric gas engine driven centrifugal pump. The 23V refers to the 23 HP Vanguard engine platform. The result is a pump unit that can be loaded onto a water truck, skid, trailer, or portable base and taken directly to wherever the water needs to be moved without any electrical infrastructure required.
Kendisco is an authorized Franklin Electric distributor and stocks genuine replacement parts for the FNG-23V, including the specific mechanical seal for this model. When you source the FNG-23V and its service parts through Ken’s Distributing Company, you are getting genuine Franklin Electric components with full manufacturer backing.
The choice of engine on a gas driven pump matters as much as the pump itself. Franklin Electric selected the Briggs and Stratton Vanguard V-Twin for the FNG-23V for specific reasons that translate directly into field performance and long-term reliability.
The Vanguard series is Briggs and Stratton’s commercial-grade engine line, built to a higher standard than the residential lawn equipment engines the brand is also known for. The V-Twin configuration with two cylinders running at a 90-degree angle produces smoother power delivery than a single-cylinder engine at equivalent displacement, which reduces vibration at the pump and extends the service life of mechanical components including the seal and bearings.
The 627 CC displacement producing 23 HP gives the FNG-23V enough power to drive the cast iron impeller at the flow rates and heads needed for serious water transfer work. Cast iron cylinder sleeves in the engine are a commercial-grade feature that extends engine service life significantly compared to aluminum bore engines by providing a harder, more wear-resistant cylinder wall surface that holds dimensional tolerances longer under continuous duty operation.
Electric start eliminates the physical strain of pull-starting a 23 HP engine repeatedly throughout a work shift, which matters on job sites where the pump may be started and stopped many times per day. The low oil alert pressure switch protects the engine from catastrophic failure if the oil level drops below a safe operating range during extended unattended operation.
The close-coupled configuration threads the cast iron impeller directly onto the engine crankshaft output. This eliminates the bearing frame, flexible coupling, and pump shaft that a frame mount configuration requires, resulting in a more compact and lighter unit with fewer mechanical components that can wear or fail. The tradeoff is that the impeller and engine are mechanically integrated, meaning the engine output shaft and bearings carry the pump hydraulic loads in addition to their normal engine loads. Franklin Electric designs the FNG-23V with this load combination in mind, selecting the impeller balance and seal specification accordingly.
The cast iron volute provides the pressure containment and structural rigidity needed at the flow rates and heads the 23 HP engine is capable of generating. Cast iron handles the thermal cycling from cold starts and hot operation better than aluminum alternatives in continuous-duty service, and its weight and rigidity dampen vibration from both the pump hydraulics and the engine.
The impeller is cast iron and dynamically balanced for maximum hydraulic efficiency and smooth operation. Balancing the impeller reduces vibration at the pump and engine interface, which is important in a close-coupled design where impeller vibration transmits directly through the engine shaft. Efficient impeller design also means more of the engine’s 23 HP goes into moving water rather than being lost to turbulence within the pump casing.
The 1-1/4-inch Type 21 mechanical seal is a self-lubricating design that uses the pumped liquid to lubricate and cool the seal faces during operation. Type 21 is a widely used industrial seal configuration with a long service history in centrifugal pump applications. The self-lubricating design means no external seal flush is required, simplifying the installation and operation of the pump on portable and mobile applications where external water supply for seal cooling would add complexity.
The bronze wear ring maintains the running clearance between the impeller and the volute that determines pump efficiency. As the wear ring gradually wears from normal operation, pump efficiency begins to decline. Rather than replacing the entire pump end, the bronze wear ring is replaced as a service component to restore the original running clearance and efficiency. Bronze is the correct material for wear ring service because it provides sufficient hardness to resist wear while being soft enough not to damage the cast iron impeller if contact occurs during operation.
The Franklin Electric FNG-23V Gas Engine Centrifugal Pump serves applications where high-flow portable pumping is needed and no electrical power infrastructure exists at the work location.
Franklin Electric offers multiple gas engine driven centrifugal pump options at Kendisco. Here is how the FNG-23V compares to the FACGF Series to help you make the right choice for your application.
If you need the highest flow capacity in a self-contained gas engine package with electric start and commercial engine durability, the FNG-23V is the right choice. If your application requires a lower HP gas engine driven centrifugal pump, the FACGF Series offers alternative options. Call Ken’s Distributing at 303.699.7845 and we will help you match the right pump to your specific GPM and head requirements.
The replaceable bronze wear ring is the primary pump-side wear component on the FNG-23V. When pump efficiency begins to decline over time in normal service, restoring the wear ring clearance by replacing this single component is the first maintenance step before considering more extensive pump service.
The Type 21 mechanical seal is the other primary service item on the pump end. Ken’s Distributing Company stocks genuine replacement seals and wear rings for the FNG-23V. When service parts are needed, call us at 303.699.7845 and we will identify the correct components by model number and get them shipped promptly.
For engine service parts, contact your local Briggs and Stratton Vanguard dealer or service center with the engine model and serial number from the engine data plate.
Browse our Franklin Electric FNG-23V replacement parts page for specific service components for this model.
Browse our Franklin Electric replacement parts and repair kits for all Franklin Electric pump series.
FNG refers to Franklin Electric’s gas engine driven centrifugal pump series. The 23 refers to the 23 HP engine rating, and the V refers to the Vanguard V-Twin engine platform by Briggs and Stratton. Together, FNG-23V identifies this as a Franklin Electric gas engine driven pump powered by a 23 HP Briggs and Stratton Vanguard V-Twin engine.
No. The FNG-23V is a standard end-suction centrifugal pump and requires the housing to be filled with liquid before startup. Install a foot valve at the water source to retain liquid in the suction line between engine start cycles to minimize the need for manual re-priming during normal operation.
No. The battery and cables for the electric start are not included with the FNG-23V. You will need to source and connect an appropriate battery before the first startup. Refer to the Briggs and Stratton Vanguard engine documentation for the battery specification required for this engine.
The bronze wear ring maintains the running clearance between the impeller and the volute casing. As this clearance gradually increases from normal wear, pump flow and efficiency decrease. When you notice reduced pump performance compared to the original specification, inspecting and replacing the wear ring is the first maintenance step. Replacing the wear ring is significantly less expensive than replacing the entire pump end and restores the original performance levels.
The Briggs and Stratton Vanguard V-Twin uses standard gasoline. Refer to the engine operator manual for the specific fuel specification and octane recommendation. Where possible, use ethanol-free gasoline for best fuel system reliability during storage periods between seasonal use.
Yes. Ken’s Distributing Company stocks genuine Franklin Electric replacement parts for the FNG-23V including mechanical seals and bronze wear rings. Call 303.699.7845 for parts availability and fast shipping. For engine-specific service parts, contact a Briggs and Stratton Vanguard authorized service center.
The FNG-23V is most commonly used for water truck service, agricultural irrigation from remote water sources, construction dewatering before electrical service is established on site, and municipal emergency pumping during power outages. Its self-contained gas engine power makes it practical for any application where electrical infrastructure is not available at the pump location.
