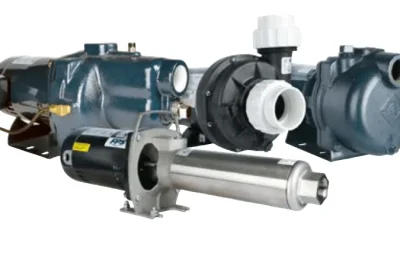

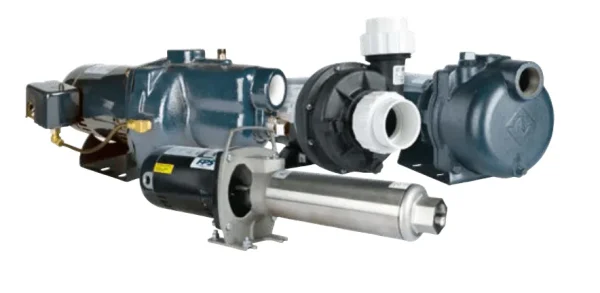

Franklin Electric Residential Surface Pumps & Light Commercial Models
Franklin Electric Residential Surface Pumps include shallow-well jet pumps, convertible well pumps, self-priming irrigation pumps, close-coupled centrifugal pumps and multistage pressure boosters. Ken’s Distributing Company helps homeowners, contractors and light-commercial buyers compare complete pump models and identify Franklin Electric replacement parts by the model or manufacturer item number.
Start with your water source, pumping depth or suction lift, required gallons per minute (GPM), total dynamic head or target pressure, and available voltage. This guide organizes the different series by application; the linked product pages provide the detailed motor options, pump curves and ordering references needed before requesting pricing.
Franklin Electric Residential Surface Pumps: Quick Selection Guide
| What you need | Recommended pump families | Selection detail |
|---|---|---|
| Home or cabin water from a shallow well | VersaJet, VersaJet Pro, SWJ | Shallow-well jet pumps; suction lift typically up to 25 ft under suitable conditions |
| Water from a deeper well | C Series, Convertible Pro RM2 | Convertible jet pumps; select a matched deep-well injector and the correct pumping depth |
| Lawn sprinklers and timed irrigation | Turf Boss 1–2 HP; FBSE | Self-priming models after initial casing fill and correct suction-line installation |
| Larger landscape or commercial turf systems | Turf Boss 3–5 HP; FBSEF | Compare flow and head at the design duty point |
| Water circulation or clean-water transfer | FAC ½–2 HP; DR; D | Close-coupled centrifugal models with model-specific materials and motor ratings |
| Increased residential or building pressure | MH; BT4; Inline Controls | Verify the source pressure, peak demand, controls and allowed operating pressure |
| Higher-volume irrigation or industrial transfer | AG, HC, XS; selected frame-mount pumps | Larger equipment, not automatically appropriate for residential systems |
Franklin Electric Jet Pumps for Shallow and Deep Wells
Jet pumps supply water to homes, cabins, small farms and light-commercial systems. A shallow-well model is generally used where the actual suction lift is within the manufacturer’s 25-foot limit. A convertible jet pump can use a separately matched injector for deeper applications. Pumping depth is not the same as the total depth of the well.
| Pump series | Pump configuration | Selection and application notes |
|---|---|---|
| VersaJet | Cast-iron shallow-well jet pump | ½, ¾, 1 and 1½ HP models; choose the jet nozzle and pressure/flow configuration for the duty |
| VersaJet Pro | Cast-iron shallow-well jet pump | ½, ¾ and 1 HP models with quick-change nozzle options |
| SWJ non-corrosive | Thermoplastic shallow-well jet pump | ½, ¾ and 1 HP models; useful where corrosion resistance of wetted materials matters |
| C Series convertible | Cast-iron convertible jet pump | ½ and ¾ HP models; deep-well injector kit selected separately |
| Convertible Pro RM2 | Higher-capacity convertible jet pump | Up to 23 GPM family rating and up to 100-ft deep-well lift under suitable injector and installation conditions |
Well-pump selection: Supply the static and pumping water levels, well diameter, pipe configuration, pressure-switch requirements, water quality and available power. For deep-well use, the model, injector and operating depth must be checked together.
Self-Priming Franklin Electric Pumps for Irrigation and Water Transfer
Self-priming centrifugal pumps are useful for sprinkler systems, turf watering and selected open-water transfer installations. They still require initial priming according to the owner’s manual, airtight suction piping and sufficient retained liquid for later restarts. Check the manufacturer’s solids-handling and fluid limits when drawing from ponds, ditches or construction sites.
| Series | Construction or drive arrangement | Typical use |
|---|---|---|
| Turf Boss 1–2 HP | Close-coupled, self-priming | Residential and smaller landscape sprinkler systems |
| Turf Boss 3–5 HP | Close-coupled, self-priming | Higher-demand commercial turf and irrigation |
| FBSE | Close-coupled, self-priming | Light-commercial irrigation and water transfer |
| FBSEF | Close-coupled, self-priming; larger motor range | Commercial, agricultural and industrial transfer |
| FBSTF | Frame-mounted, self-priming | Larger driven pump installations and selected dewatering applications |
| FMIT | Frame-mounted, self-priming | Industrial and agricultural transfer where specified solids handling is required |
| FTT-20/40 | Frame-mounted, self-priming | Larger-capacity water transfer and dewatering |
Scope: The frame-mounted FMIT, FBSTF and FTT families are included for comparison because buyers sometimes outgrow residential equipment. Their drive packages and service requirements differ substantially from a motor-driven household pump.
Close-Coupled Centrifugal Pumps for Circulation and Transfer
Close-coupled centrifugal pumps are commonly chosen for circulation, general water transfer, selected booster duties and irrigation systems. Unlike jet and purpose-built self-priming models, a standard centrifugal pump should not be assumed to lift water and prime itself from a dry suction line. Check the suction condition, materials, seal and motor enclosure for the selected series.
| Series | Model range or construction | Primary selection use |
|---|---|---|
| FAC ½–2 HP | Compact cast-iron centrifugal models | Water circulation, general transfer and smaller booster applications |
| FAC 3–5 HP | Larger FAC centrifugal models | Commercial circulation, transfer and higher-capacity duties |
| DR Series | DR1 and DR2 material and motor options | Circulation, boosting, liquid transfer and spraying systems |
| D Series | Multiple impeller and construction variants | General-purpose centrifugal transfer and circulation |
| AG Series | Agricultural and higher-flow centrifugal range | Farm and commercial irrigation and water transfer |
| HC Series | Larger high-head centrifugal pumps | Industrial, commercial and engineered water-transfer systems |
| XS Series | Larger high-flow centrifugal pumps | Engineered water-transfer and irrigation systems |
Franklin Electric Water Pressure Booster Pumps and Controls
For low water pressure, the correct booster depends on how much flow is needed at the desired pressure, the available inlet pressure, the water temperature and the electrical supply. A booster is not automatically a substitute for a well jet pump, and the pressure rating of the pump is not its guaranteed discharge pressure at every GPM.
| Series | Type | Selection notes |
|---|---|---|
| MH Series | Horizontal multistage booster pump | Residential and light-commercial boosting, with different flow and motor options by model |
| BT4 Series | Horizontal multistage booster pump | Higher-pressure clean-water boosting; match duty to published curves |
| Inline Controls | Pump-control and pressure-management products | Select only a control listed as compatible with the particular pump and motor |
How to Match a Surface Pump to Your Water System
Before selecting a complete pump, match the actual application to the operating curve. Provide the following information with your quote request:
- Water source and liquid: well, pond, tank or municipal line; water clarity, temperature and any aggressive chemistry.
- Flow: required GPM at the fixture, irrigation zone or transfer outlet.
- Head or pressure: total dynamic head, friction losses and required discharge pressure at the design flow.
- Suction conditions: vertical suction lift, pipe length, fittings, water level and NPSH where applicable.
- Power and construction: HP, voltage, phase, motor enclosure, suction/discharge sizes and installation layout.
- Existing installation: pump nameplate model and manufacturer item number if replacing an installed pump.
Franklin Electric Surface Pump Replacement Parts and Repair Kits
Ken’s Distributing Company also supplies Franklin Electric pump repair and replacement parts. A buyer looking for a seal, impeller, ejector or overhaul kit should not have to order a complete pump without first checking whether an individual repair is appropriate. Parts differ by series, horsepower, hydraulic arrangement and sometimes production revision.
| Pump family | Common components to identify | What to send for accurate matching |
|---|---|---|
| Shallow-well and convertible jet pumps | Jet nozzles, injectors, diffusers, impellers, seals, pressure-switch components | Exact jet pump model and item number, well configuration and injector number |
| Turf Boss and other self-priming pumps | Overhaul kits, mechanical seals, impellers, wear components, case gaskets | Pump series, horsepower, impeller material and existing part number |
| Close-coupled centrifugal pumps | Impellers, shaft seals, gaskets, motor adapters and pump-end components | Full model, motor frame, phase/voltage and figure number from breakdown |
| Multistage boosters and controls | Stage assemblies, seals, motors and approved control components | Pump or controller model, voltage and part number |
For an exact breakdown or original manufacturer reference, use the Franklin Electric pump replacement parts hub. Send a photo of the nameplate if the number is hard to read. Availability and part supersessions are confirmed when quoting.
When to Repair a Pump Instead of Replacing It
A worn seal, gasket, impeller or injector may be replaceable if the case, motor and mounting arrangement remain serviceable. A cracked housing, extensive internal corrosion, failed motor or major changes in required flow and head can make a complete replacement a more practical choice. Compare repair-part fitment and total repair costs with a complete pump quotation.
Franklin Electric Residential Surface Pump Catalog and Technical Data
For manufacturer diagrams, performance curves, motor configurations and historical ordering information, consult the Franklin Electric Residential & Light Commercial Surface Pumps Catalog (PDF). Refer to the current individual product page and manufacturer instructions before purchasing; catalog editions can differ in model availability and specifications.
Request Price and Availability for a Pump or Repair Part
Complete pump inquiry: Tell us the series or model, water source, required GPM and head, suction arrangement, voltage and installation details. We can help narrow down the appropriate configuration and confirm the quotation scope.
Replacement-parts inquiry: Send the exact manufacturer part number, pump nameplate, model and any relevant exploded-view figure number. Ken’s Distributing Company can help confirm identification, fit, price and availability. Request pump or replacement-part pricing or call 303-699-7845.
Frequently Asked Questions
What are Franklin Electric residential surface pumps used for?
They support above-ground well water supply, selected water transfer, lawn irrigation, circulation and pressure boosting. Different designs serve these applications, so first match the water source and duty point to the correct series.
Which Franklin Electric pump works for a shallow well?
VersaJet, VersaJet Pro and SWJ are shallow-well jet pump options. The actual vertical suction lift should be within the manufacturer’s typical 25-foot shallow-well limit, with piping losses and site conditions considered.
Can I use a surface jet pump for a deep well?
A convertible jet pump, such as the C Series or RM2, can be configured with a matching deep-well injector. Actual supported pumping depth, injector model and flow depend on the installation and performance table.
Are Turf Boss pumps self-priming?
Yes, Turf Boss is a self-priming series designed for irrigation applications. The pump still needs initial casing filling and proper suction installation; check the specific model’s priming instructions.
What is the difference between a booster pump and a jet pump?
A jet pump is used to draw water from a well or other suction source and supply a water system. A multistage booster increases pressure in a suitable existing water supply. Selection depends on source conditions and system requirements.
Can I buy Franklin Electric surface pump repair parts without replacing the pump?
Individual replacement components and repair kits may be available for many of the listed series. Provide the pump nameplate and exact OEM part or figure number for a fitment and availability check.
Does an NSF/ANSI/CAN 372 listing guarantee that the water is potable?
No. A model-specific NSF/ANSI/CAN 372 listing addresses lead-content requirements for relevant wetted components; it does not establish the quality of the source water. Check the certification for the exact pump model.
Related Franklin Electric Pumps for Larger Systems
If the required flow, piping or drive arrangement is beyond a residential motor-driven model, compare the Franklin Electric 9-inch frame-mount centrifugal pumps or submit the system design for a larger pump selection. Frame-mounted and bare-shaft units need a separately specified driver and coupling arrangement.
Send us your model number and we will confirm fit, price, and availability.
